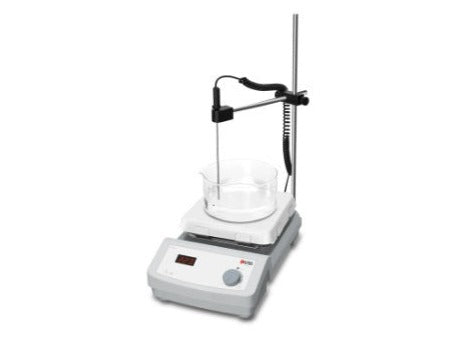

MSE PRO LED Hotplate

SKU: LS1503

  • $ 52995
  • Save $ 5900


MSE PRO™ LED Hotplate

  • LED screen display actual and accurate temperature
  • Maximum temperature up to 550℃
  • Separate safety circuits with safety temperature of 580℃
  • Work plate provides excellent chemical- resistant performance and most efficient heat transfer
  • “HOT" warning flashes when the work plate temperature is above 50℃
  • Optional: External temperature control is possible by connecting temperature sensor with an accuracy of ±0.2℃

Specifications:

SKU
LS1503
Work plate Dimension
184x184mm (7 inch)
Work plate material
Glass ceramic
Speed range
100-1500rpm,resolution±1rpm
Temperature display
LED
Heating temperature range
Room Temp. to 550℃, increment 5℃
Time display
-
Temperature control accuracy
±10℃
Temperature display accuracy
±0.1℃
External temperature sensor (optional)
accuracy±0.2℃
"Hot" warning
50℃
Overheating temperature protection
580℃
Heating position
1
Timer function
-
Protection class
IP21
Power
1010W
Heating output
1000W
Voltage Frequency
100-120V (Standard)
200-240V,50/60Hz
Dimension [WxDxH]
215x360x112mm
Weight
4.5kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
