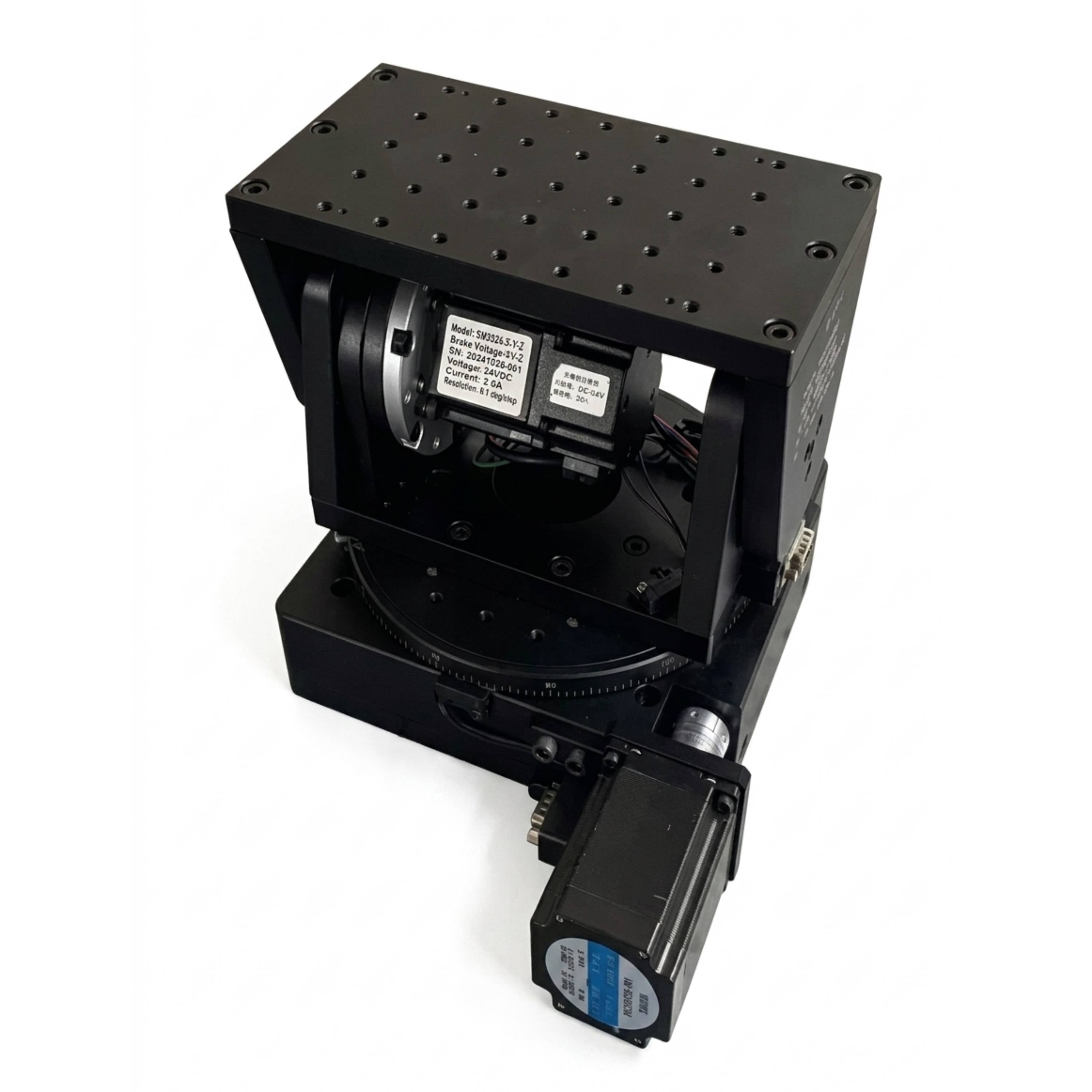

MSE PRO LDTRA03 Motorized Multi-Axis Combination Stage
Regular price
$ 6,050.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDTRA03 Motorized Multi-Axis Combination Stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070350 | |
| Model | LDTRA03 | |
|
Structure
Description |
Angular Range | tilt±70°, horizontal± 180° |
| Table Size | 220*160mm | |
| Ratio | Tilt: 180:1 Horizontal: 100:1 | |
| Drive mechanism | Worm Gear/Harmonic gear | |
| Guide Rails | Bearing | |
| Motor | 57 Stepper Motor | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | 15kg | |
| Weight | 12kg | |
|
Accuracy
Discription |
Resolution | 0.01° =36"(No Subdivision) 0.0005° =1.8" (20 Subdivisions) |
| Speed | 15° /sec | |
| Repeat Positioning Accuracy |
0.05° /0.01° (Closed-loop) | |
| Axial runout accuracy | 15 μ | |
| Backlash | 0.05° | |
| Lost Motion | 0.05° |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
