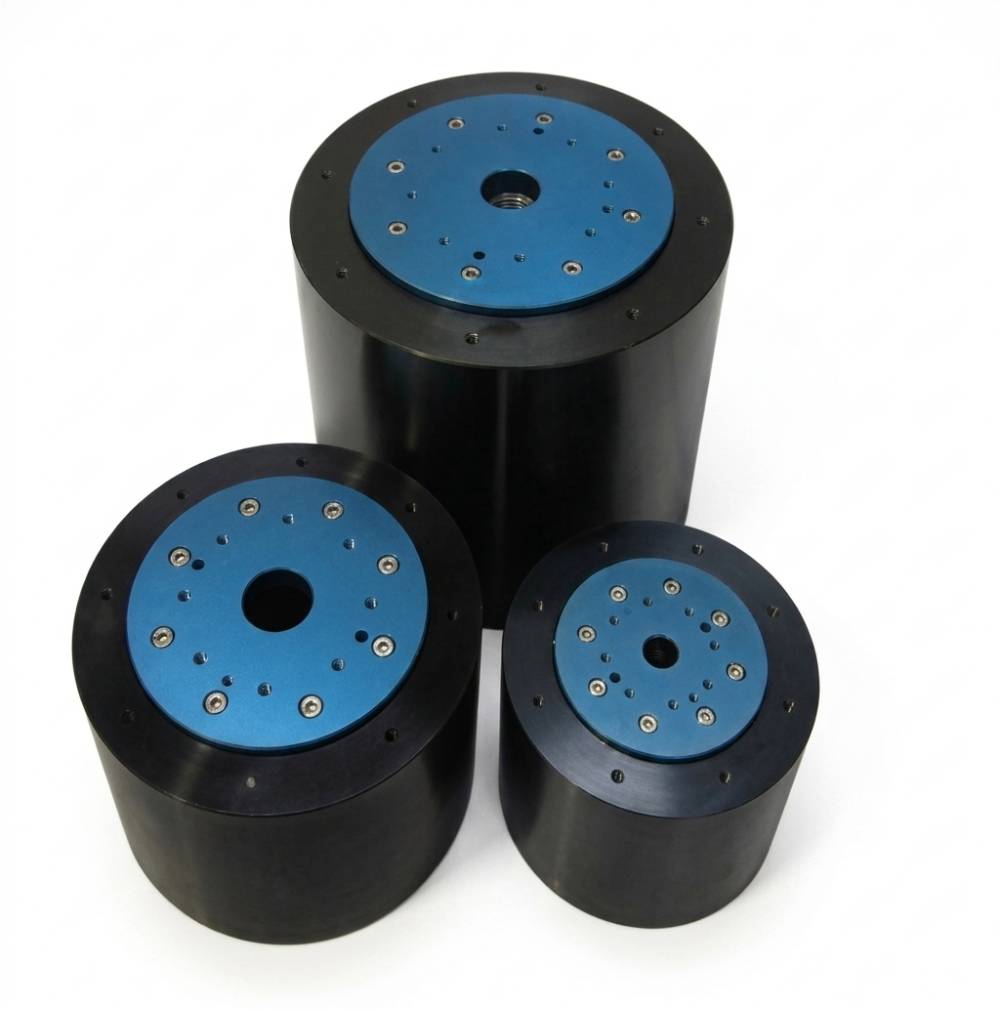

MSE PRO LDT500RA-R150mm High-Speed Linear Motor Rotary Stage
Regular price
$ 11,300.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT500RA-R150mm High-Speed Linear Motor Rotary Stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070305 |
| Model | LDT500RA-R150mm |
| Center aperture | 30mm |
| Table Diameter | 150mm |
| Total Height | 100mm |
| Load Capacity | 20kg |
| Weight | 6kg |
| Resolution | <0.0001(Subject to the resolution of the optional grating scale) |
| Maximum Speed | 800 rpm (air bearing) |
| Repeat Positioning Accuracy | <0.0005° |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
