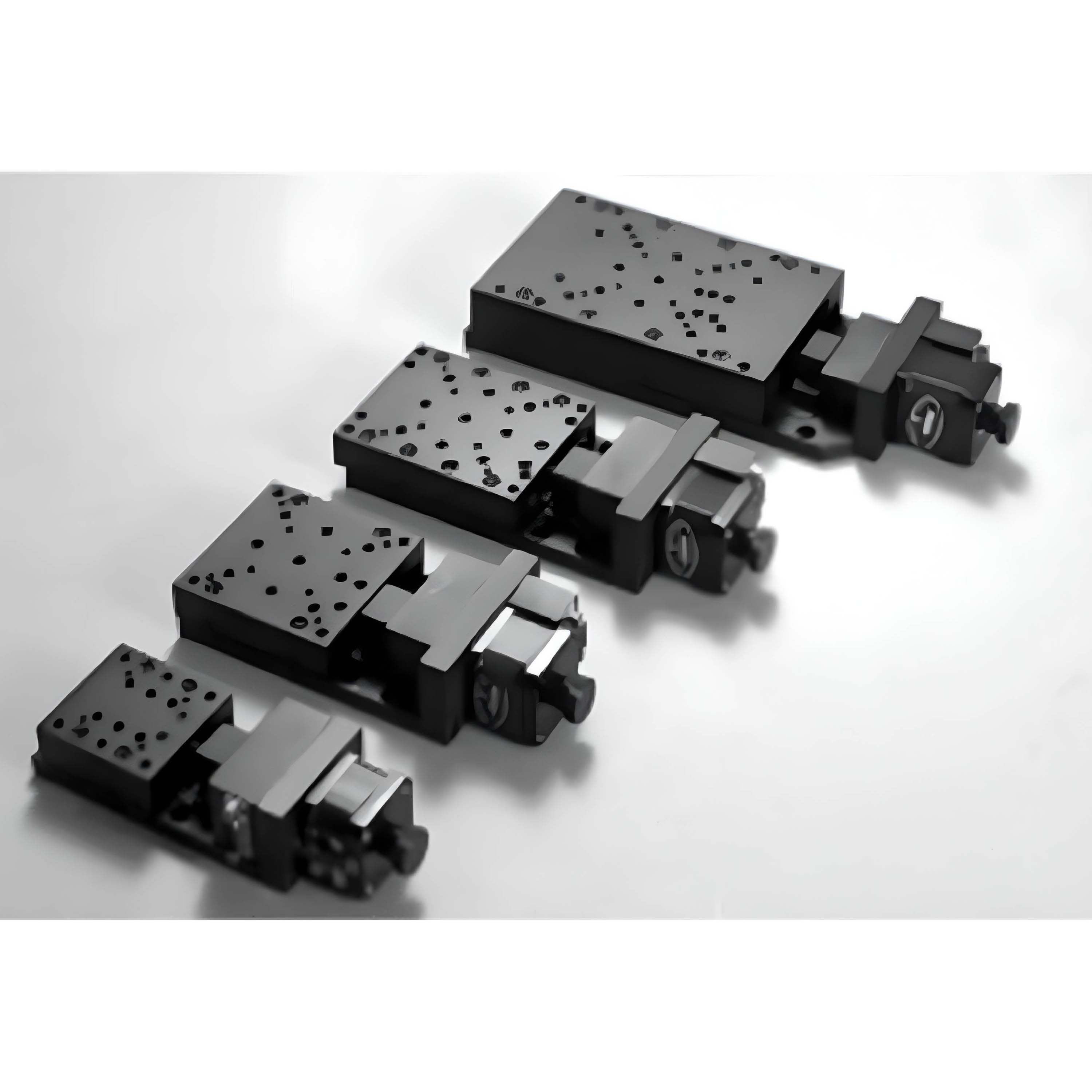

MSE PRO LDT261TA-15 Grinding Screw Motorized Liner Translation stage
Regular price
$ 868.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT261TA-15 Grinding Screw Motorized Liner Translation stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070287 | |
| Model | LDT261TA-15 | |
|
Structure
Description |
Travel Range | 15mm |
| Table Size | 65*65mm | |
| Lead Screw Specification | Grinding Screw(Lead 1mm) | |
| Guide Rails | Precision Crossed Roller Guide | |
| Stepper Moto | 28 Stepper motor | |
| Main Material | Aluminum Alloy | |
| Surface Treatment | Anodized Black |
|
| Load Capacity | <<10kg | |
| Weight | 1.2kg | |
|
Accuracy
Description |
Resolution | 20H (No Subdivision) 2.5H (20 Subdivisions) |
| Maximum Speed | 10mm/sec | |
| Repeat Positioning Accuracy | 25μ (Grinding Screw) | |
| Backlash | 5μ | |
| Lost Motion | 5μ | |
|
Accessory
Description |
Optional limit switches and optical coupler switches | |
| Customizable for high/lowtemperature or vacuum applications | ||
| Interchangeable servo motor | ||
| Can be pairedwith our motion controller series for automated control |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
