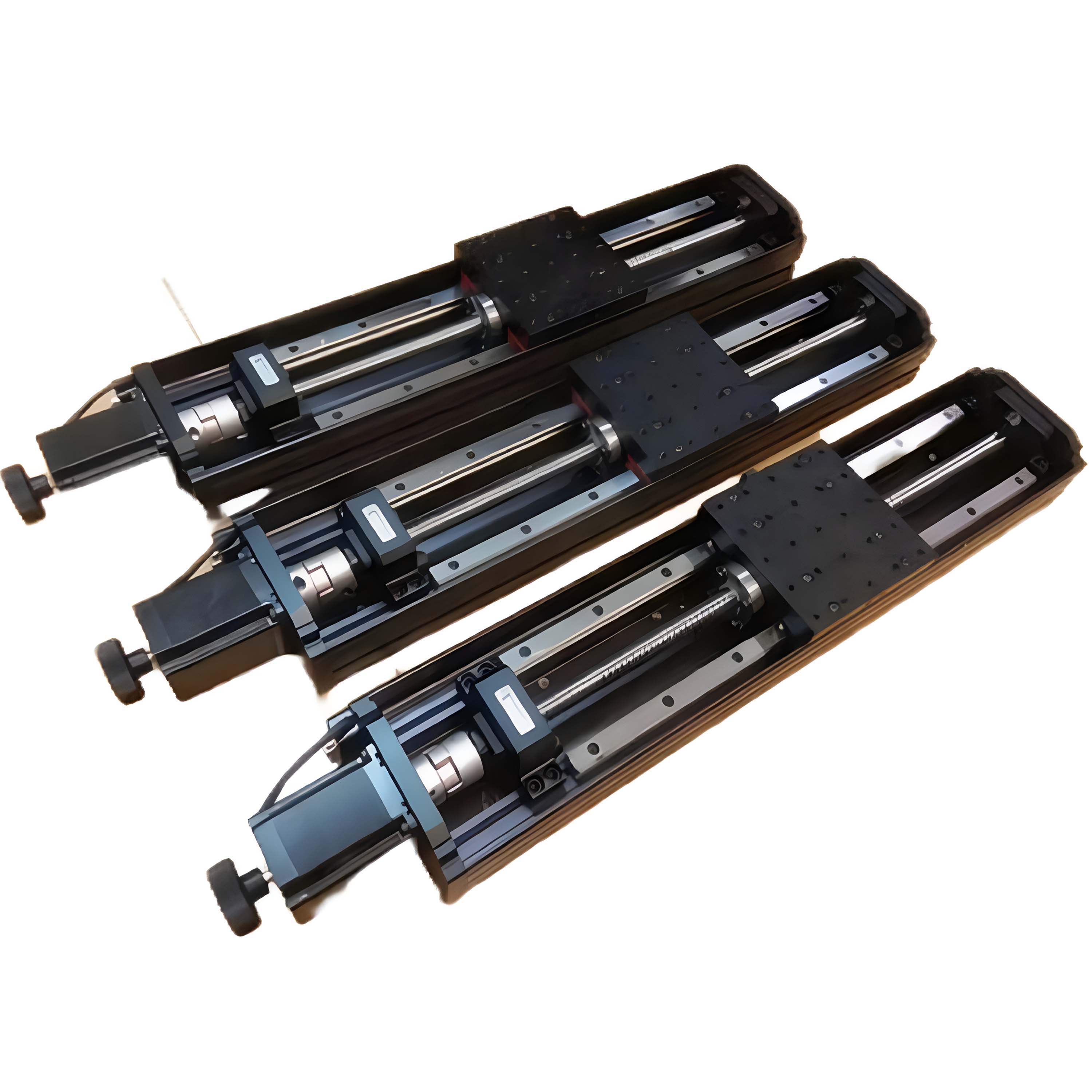

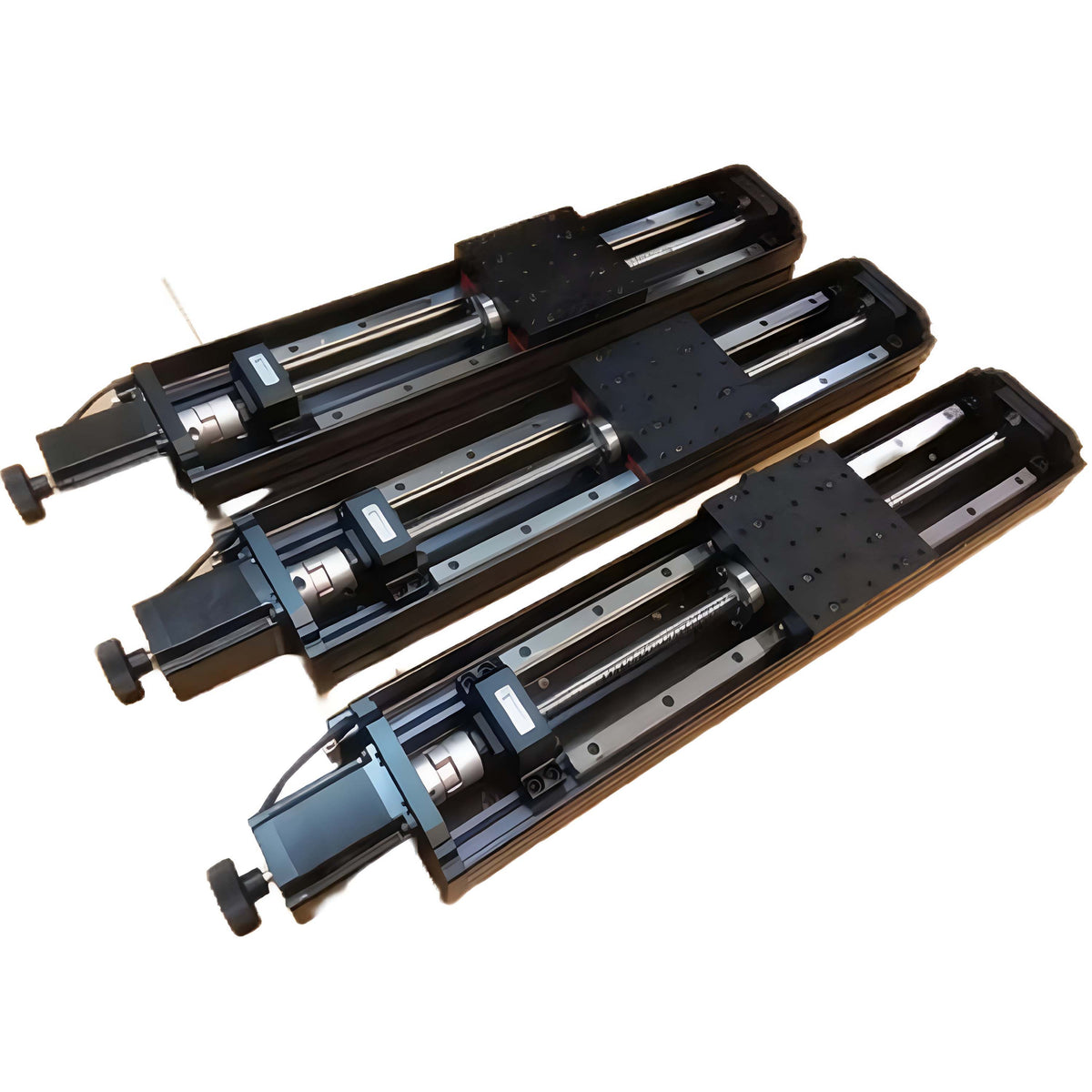

MSE PRO LDT230TAM-400 Motorized Liner Translation stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070285 | |
| Model | LDT230TAM-400 | |
| Structure Description |
Travel Range | 400mm |
| Table Size | 120*120mm | |
| Lead Screw Specification |
roller screw (Lead 5mm) | |
| Guide Rails | Precision Linear Slider Guide Rails | |
| Stepper Moto | 42/57/86 | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | 25kg | |
| Weight | 7.5kg | |
|
Accuracy Discription |
Resolution | 20H (No Subdivision) 1 H(20 Subdivisions) |
| Maximum Speed | 40mm/sec | |
| Repeat Positioning Accuracy |
20 H/10 (Closed-loop motor)/3 (grating closed-loop) |
|
| Straightness | 20 m | |
| Pitch | 50" | |
| Yaw | 25" | |
| Backlash | 2H | |
| Lost Motion | 5H | |
| Accessory Description |
Optional Electric Brake Function | |
| Optional Grating Scale | ||
| Optional Servo Motor | ||
| Optional Dust Cover |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
