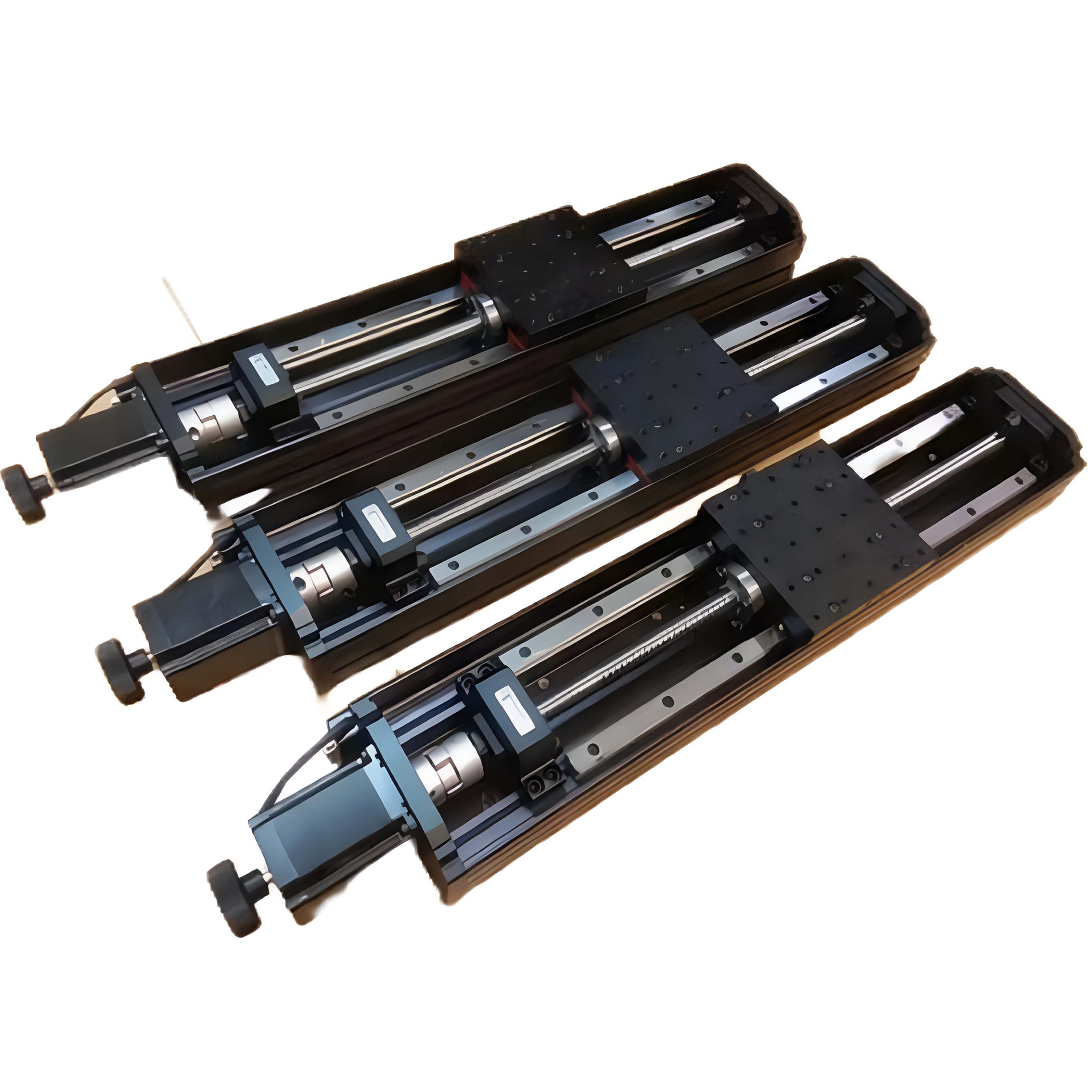

MSE PRO LDT230TAM-200 Motorized Liner Translation stage
Regular price
$ 1,758.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT230TAM-200 Motorized Liner Translation stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070282 | |
| Model |
LDT230TAM-200
|
|
|
Structure
Description |
Travel Range | 200mm |
| Table Size | 120*120mm | |
| Lead Screw Specification |
Precision Ball Screw (Lead 4mm)
|
|
| Guide Rails |
Precision Linear Slider Guide Rails
|
|
| Stepper Moto | 42/57/86 | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | 25kg | |
| Weight | 6.5kg | |
|
Accuracy
Discription |
Resolution |
20μ (No Subdivision) 1 μ (20 Subdivisions)
|
| Maximum Speed | 40mm/sec | |
| Repeat Positioning Accuracy |
20 μ/10 (Closed-loop motor)/3 (grating closed-loop)
|
|
| Straightness | 20μ | |
| Pitch | 50" | |
| Yaw | 25" | |
| Backlash | 2μ | |
| Lost Motion | 5μ | |
|
Accessory Description
|
Optional Electric Brake Function
|
|
|
Optional Grating Scale
|
||
|
Optional Servo Motor
|
||
|
Optional Dust Cover
|
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
