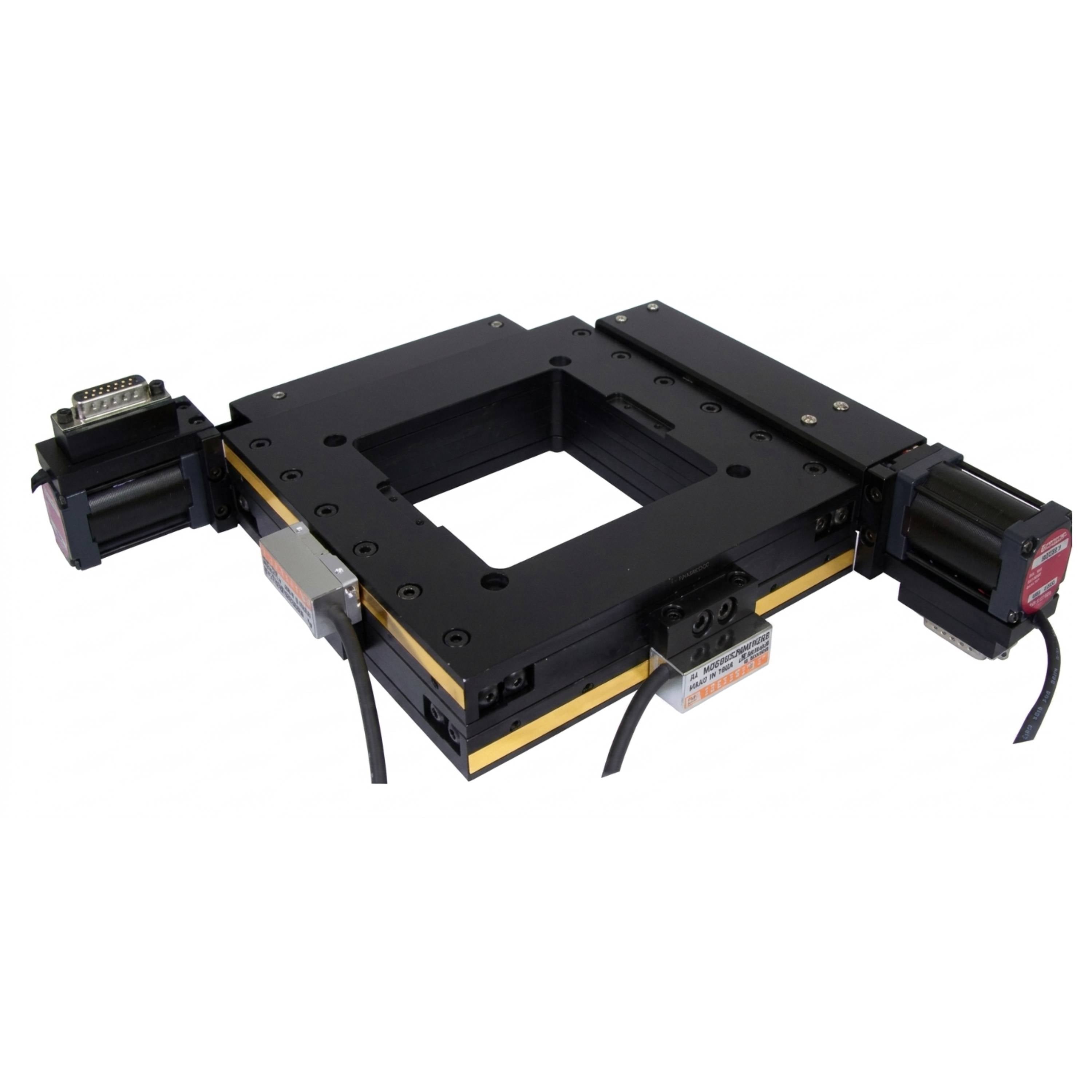

MSE PRO LDT01WA Integrated 2D Motorized Translation Stage, 15mm Travel Range, Ball Screw
Regular price
$ 2,250.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT01WA Integrated 2D Motorized Translation Stage, 15mm Travel Range, Ball Screw
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070336 | |
| Model | LDT01WA-15mm-Ball Screw | |
|
Structure
Description |
Travel Range | 15mm |
| Table Size | 90*90mm | |
| Lead Screw Specification | High-precision Ball Screw Lead 1mm | |
| Main Material | Aluminum Alloy | |
| Surface Treatment | Anodized Black | |
| Load Capacity | 5kg | |
| Weight | 3.2kg | |
|
Accuracy
Discription |
Resolution | 0.25μ |
| Repeat Positioning Accuracy | 10 μ/1 μ (Grating) | |
| Maximum Speed | 5mm/sec |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
