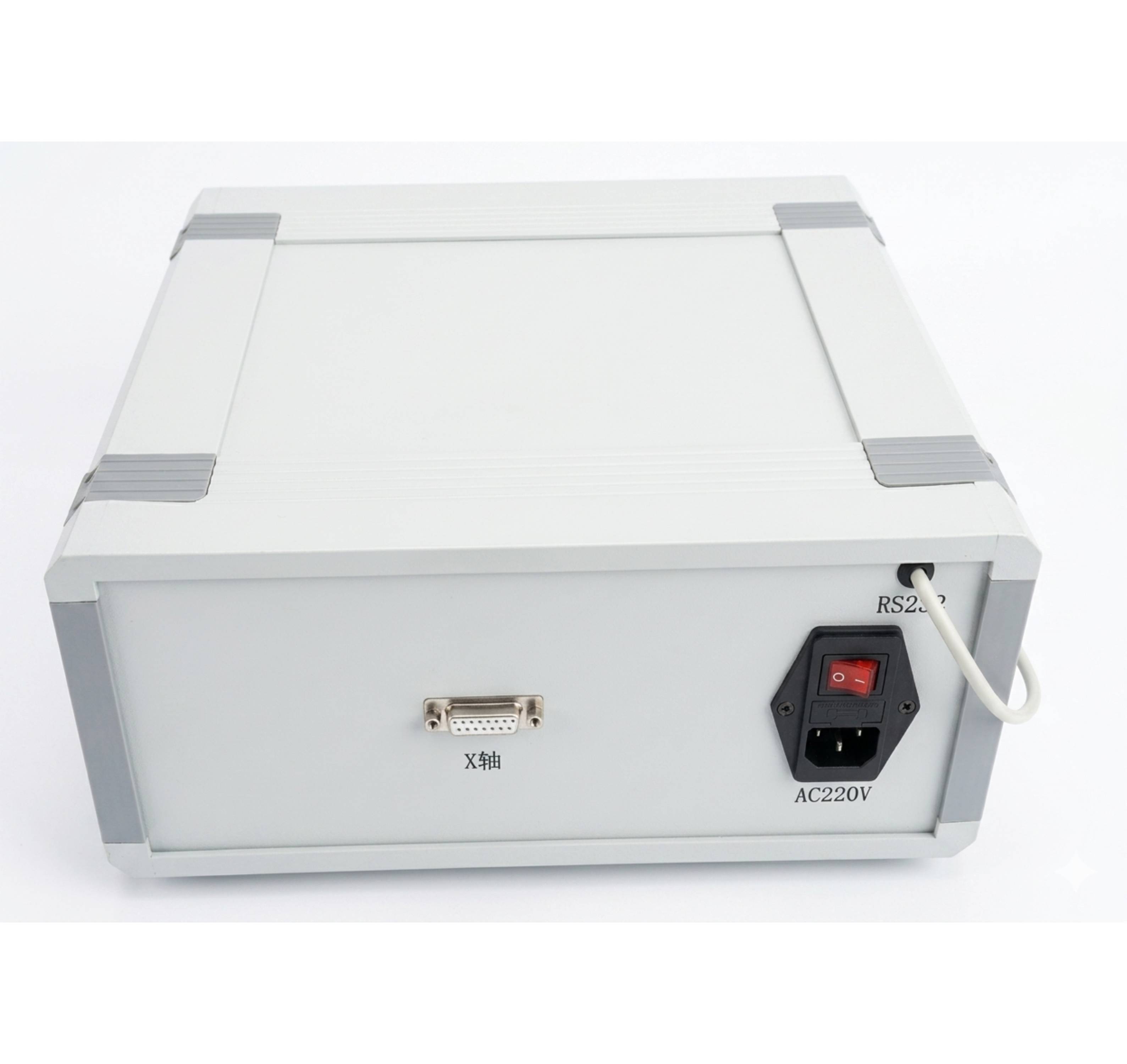

MSE PRO LDT01USB Stepper Motor Controller, 1 Controlled Axis
MSE PRO™ Stepper Motor Motion Controller is an integrated system for multi-dimensional, multi-type motor control based on PC and motion control cards. It features support for multiple control axes, wide motor compatibility, and flexible combinations across different dimensions. Currently, MSE Supplies offers standard products with 1–6 axes, compatible with two-phase stepper motors, three-phase stepper motors, five-phase stepper motors, servomotors, and various other motor types, which can be freely combined. Customized solutions for other motor types can also be provided according to customer requirements. The control software is developed in C language. We provide communication protocols, source code samples, and documentation to support customers in secondary development. Users can easily get started with their own applications or integrate the system with their existing setups. Customization is also available to meet specific user needs.
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070342 |
| Model | LDT01USB-axis-1 |
| Controlled Axes | 1 |
| Size | 307*260*125mm |
| Panel size | 280*110 |
| Communication mode | 232/485/USB |
| Power supply | 220v |
| Control product | All of our standard motorized displacement tables |
| Control motor type | Two-phase/three-phase stepper motors, AC/DC servo motors |
| Baud rate | 9600 |
| Data feedback delay | 20ms |
| Communication protocol | Modbus-RTU communication protocol |
| Upper computer software | C language (customizable host computer software and functions) |
| Optional functions | Electronic handwheel can be added, touch screen can be added to realize offline control |
| Use environment | Temperature: 0-55C; Relative humidity: 0-85% Prevent metal dust, rainwater and other debris from entering the controller's interior |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
