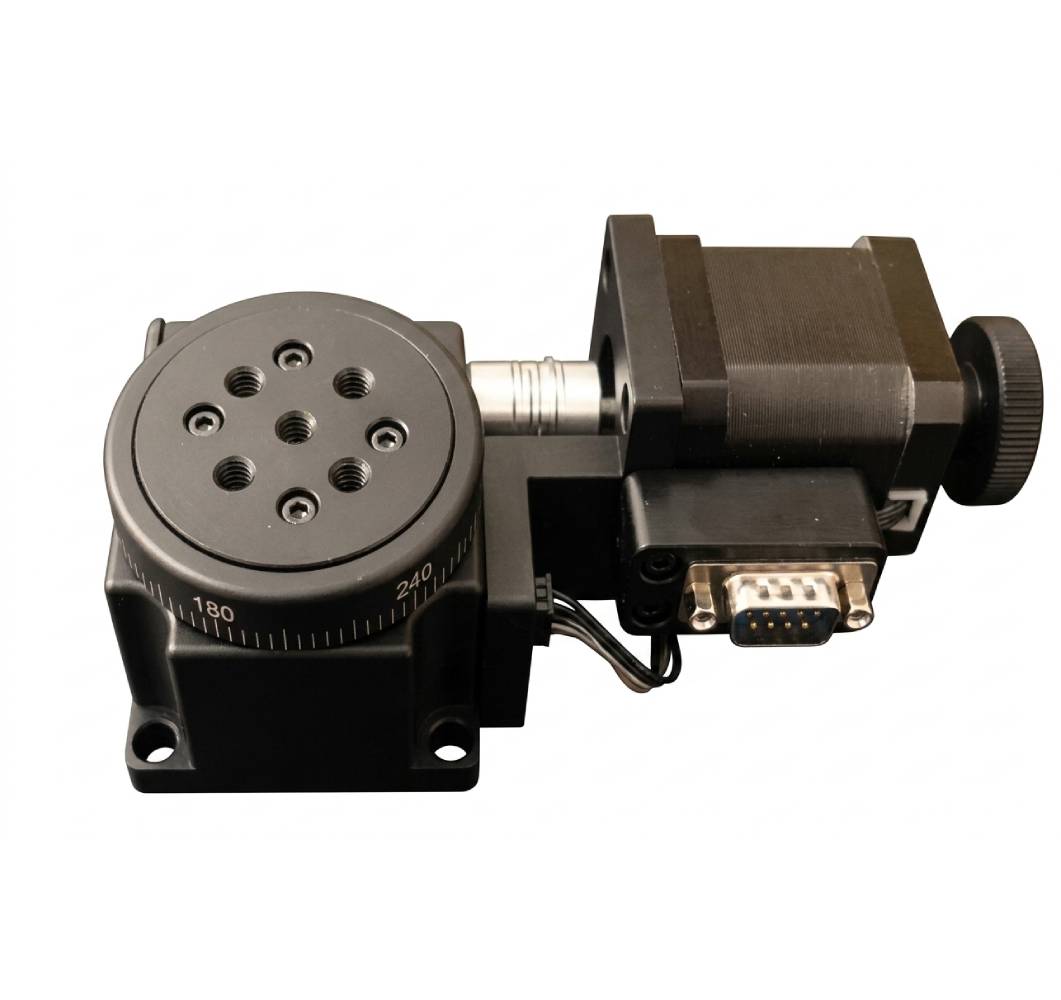

MSE PRO LDT01RA60 Motorized Rotation Stage (Servo Motor)
Regular price
$ 498.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT01RA60 Motorized Rotation Stage (Servo Motor)
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070322 | |
| Model |
LDT01RA60-Servo Motor
|
|
|
Structure
Description |
Angular Range | 360° |
| Platform Size | Φ60mm | |
| Gear Ratio | 90:1 | |
| Drive Mechanism |
Worm gear and worm shaft structure
|
|
| Guide Typе | Bearings | |
| Stepper Motor(1.8") |
100W Servo Motor
|
|
| Main Material | aluminum alloy | |
| Surface Treatment |
Anodized blackening
|
|
| Central Load Capacity | 20kg | |
| Weight | 1.2kg | |
|
Accuracy Description
|
Resolution |
0.02°without micro-stepping 0.001°=3.6" (with 20 micro-steps)
|
| Speed | 50°/sec | |
| Repeatability | 0.01° | |
| End Runout Accuracy | 30μ | |
| Backlash | 0.005°=18" | |
| Step Loss | / |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
