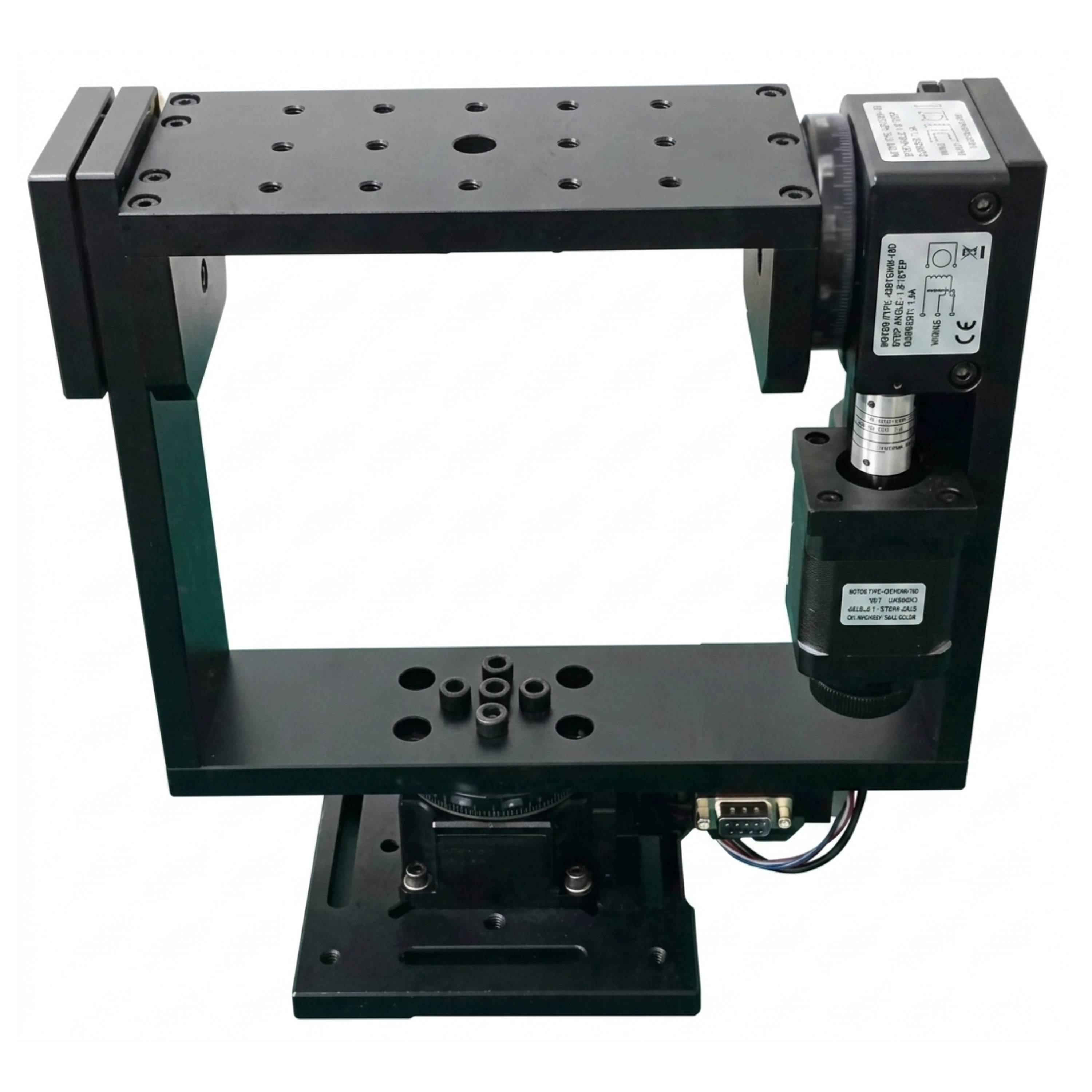

MSE PRO LDT01RA60-2 Motorized Multi-Axis Combination Stage, Stepper Motor
Regular price
$ 2,000.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT01RA60-2 Motorized Multi-Axis Combination Stage, Stepper Motor
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070348 | |
| Model | LDT01RA60-2 | |
|
Structure
Description |
Angular Range | ±180° |
| Table Size | 150*80mm | |
| Ratio | 90:1 | |
| Drive mechanism | Worm Gear | |
| Guide Rails | Bearing | |
| Motor | 42 Stepper Motor | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | 3kg | |
| Weight | 4kg | |
|
Accuracy
Discription |
Resolution | 0.01° =36"(No Subdivision) 0.00005° =1.8"(20 Subdivisions) |
| Maximum Speed | 15° /sec | |
| Repeat Positioning Accuracy |
0.05° /0.005° (Closed-loop) | |
| Axial runout accuracy | 15 μ | |
| Backlash | 0.05° | |
| Lost Motion | 0.05° |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
