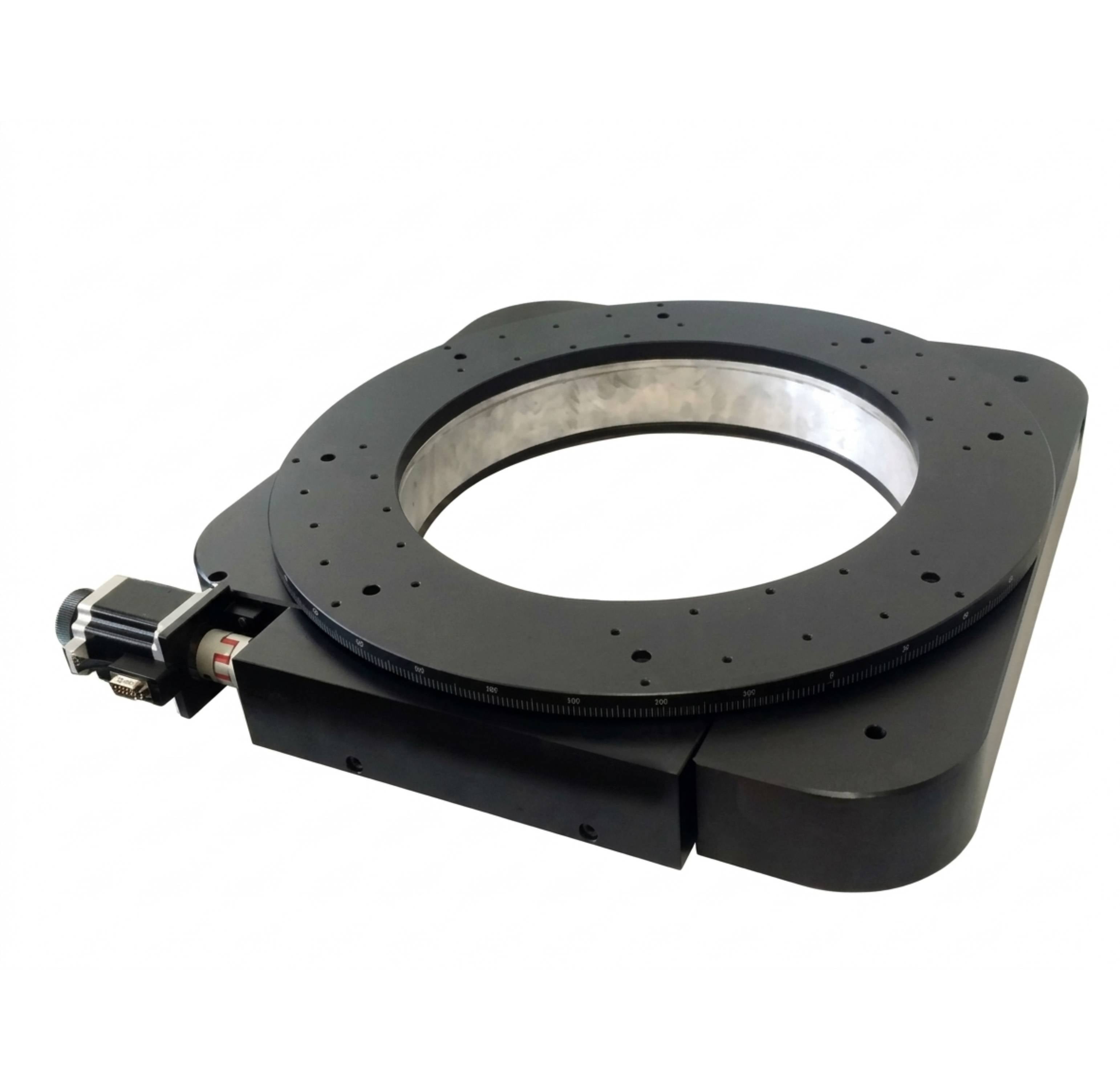

MSE PRO LDT01RA560 Motorized Rotation Stage (Stepper Motor)
Regular price
$ 15,125.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT01RA560 Motorized Rotation Stage (Stepper Motor)
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070331 | |
| Model | LDT01RA560-Stepper Motor | |
|
Structure
Description |
Angular Range | 360° |
| Platform Size | Φ560mm | |
| Gear Ratio | 512:1 | |
| Drive Mechanism | Worm gear and worm shaft structure | |
| Guide Typе | Crossed Roller Bearings | |
| Motor | 57 stepper motor | |
| Main Material | aluminum alloy | |
| Surface Treatment | Anodized blackening | |
| Central Load Capacity | 100kg | |
| Weight | 35kg | |
|
Accuracy Description
|
Resolution | 0.005° |
| Speed | 3°/sec | |
| Repeatability | 0.01° | |
| End Runout Accuracy | 20μ | |
| Backlash | 0.005°=18" | |
| Step Loss | 0.005°=18" |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
