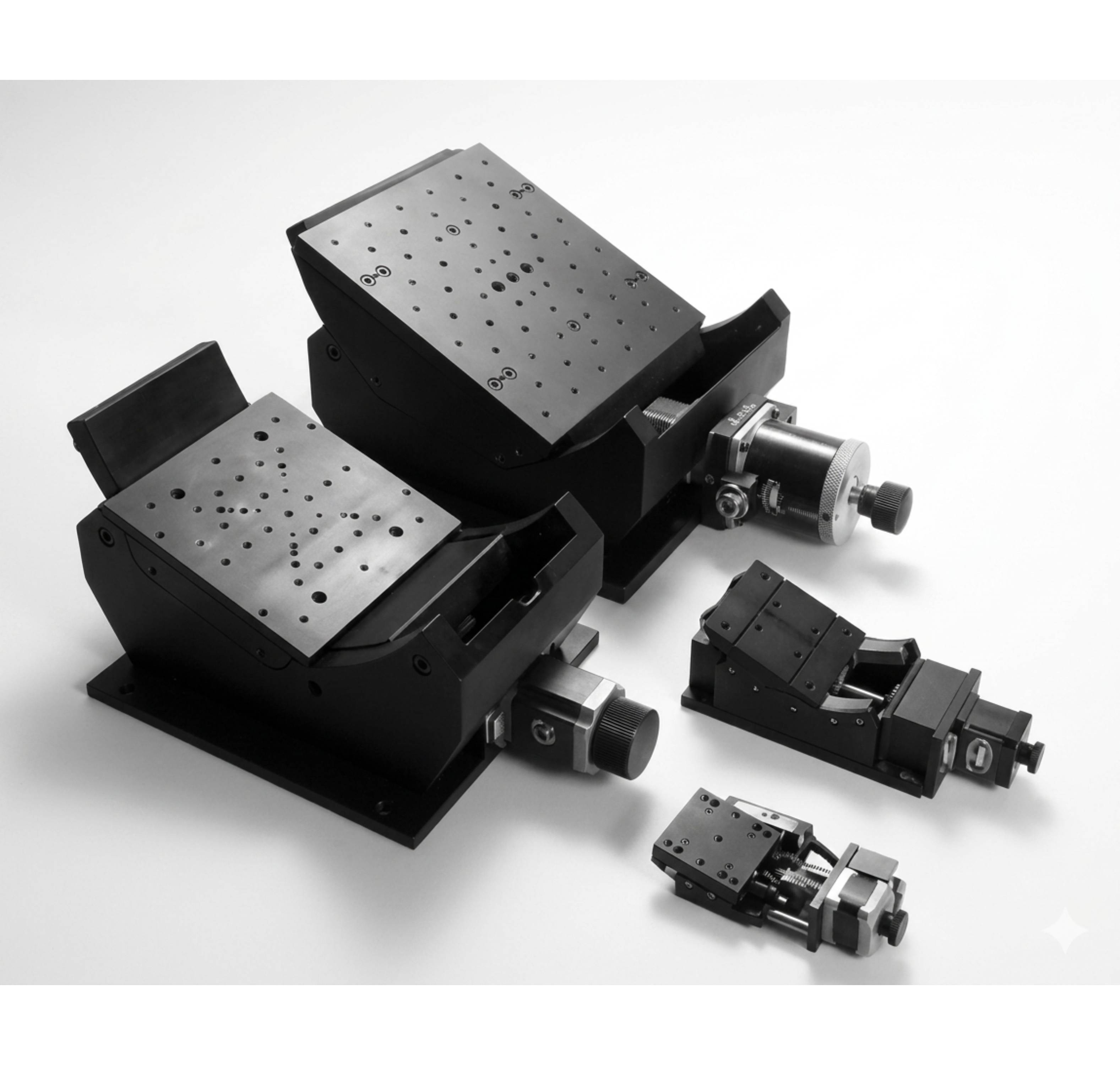

MSE PRO LDT01GA Motorized Goniometer Stage, 65x65mm platform
Regular price
$ 938.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT01GA Motorized Goniometer Stage, 65x65mm platform
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070333 | |
| Model | LDT01GA-65x65mm | |
|
Structure
Description |
Ratio | 252:1 |
| Table Diameter | 65*65mm | |
| Center height | 50mm | |
| Main Material | Aluminum Alloy | |
| Surface Treatment | Anodized Black | |
| Weight | 1kg | |
|
Accuracy Description
|
Load Capacity | 5kg |
| Maximum Speed | 10° /sec | |
| Resolution | 0.005° | |
| Repeat Positioning Accuracy | 0.05° |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
