MSE PRO™ Laboratory Knife Mill

MSE Supplies offers laboratory knife mill, which is used to process the soft, medium-hard, brittle and fibrous sample. It is suitable for high water, oil or fat content sample.

Working Principle

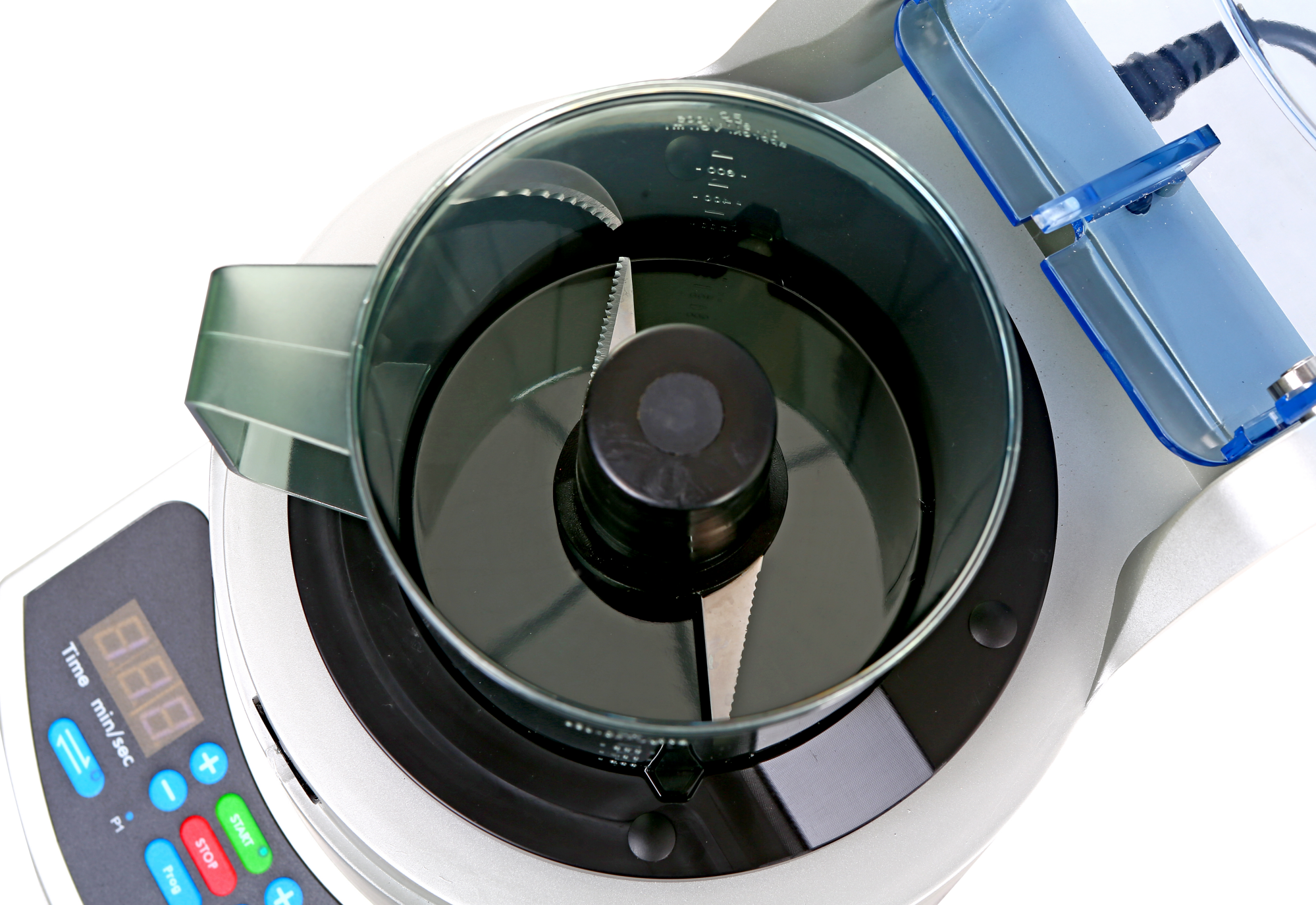

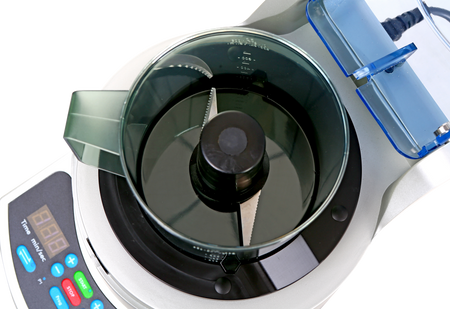

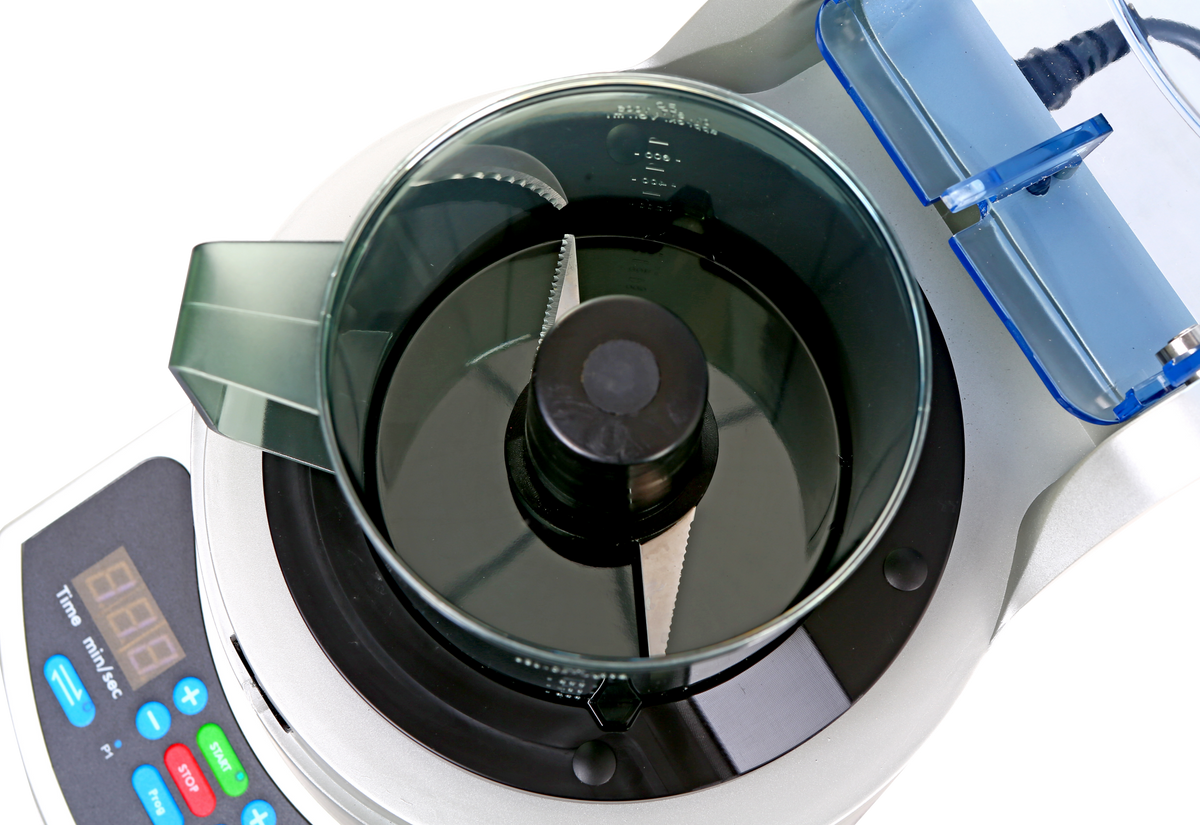

The knife mill has two-blade knives at the center of the bottom of a grinding cup. A certain height gap is kept between the blades. Driven by a motor of 1100W, the knives start rotating. Reliable crushing and homogeneous phase effects are generated via the cutting of the sharp steel knife edges. The blunt side can be selected for coarse grinding of bulk samples or the tough side for fine grinding of samples. The motor speed is electronically controlled and can be preset. The constant speed guarantees efficient and high-quality grinding homogenization. You just need 10 to 30 seconds to process samples that are usually hard to crush and get homogenized samples for analysis.

Features and advantages

Autoclavable container for choice
Grinding container in various material
Simple operation and quick start
Strong motor power 1.1KW, speed adjustable
Coarse grinding and fine grinding can be realized in one step
Three modes optional: interval mode, reverse mode and press-and-play mode
Overload protection and safety lock design

Applications of Laboratory Knife Mill:

Sample type: Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample

Typical sample:

Agriculture: grain, feed, etc
Biology: mouse tissue, plant leaves, seeds, seedling and germ
Medicine: medicine, pills, etc
Food: dried melon, vegetables, frozen food, candy, preserved fruit, meat

Technical Data

SKU	MA1120
Feed size	<40mm
Final fineness	<300μm
Speed	2000-10000rpm
Time setting	0:01-9:59 (min/s)
Batch quantity	150-700ml
Interval mode	Yes
Knives	Stainless steel or titanium alloy
Number of blades	2
Rated power	1.1KW
Power supply	110V 60Hz
Instrument size	260343454mm
Package size	480550720mm
Net weight	16kg

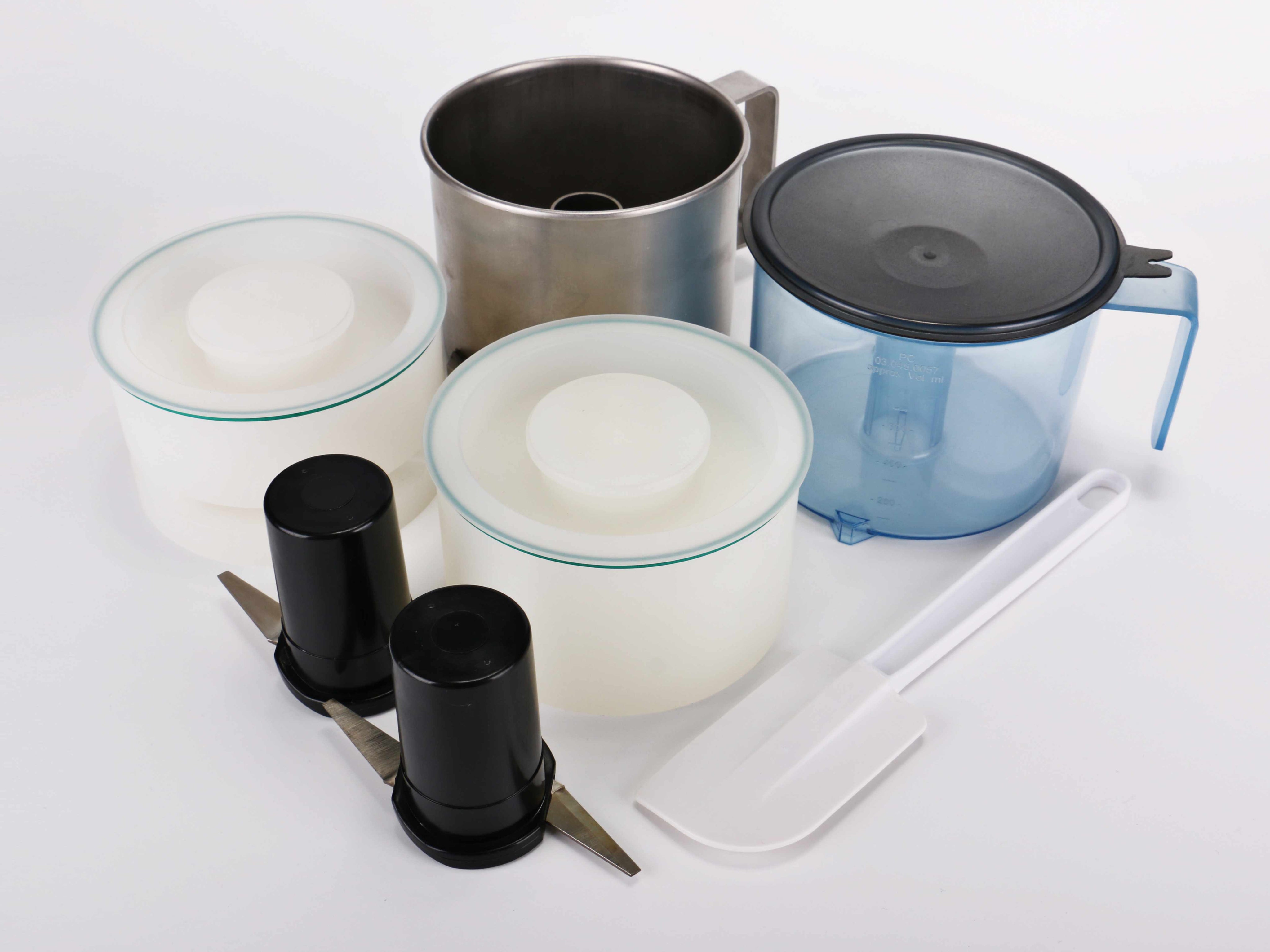

Standard accessaries: 1L grinding container of autoclavable plastic, standard lid and knife of stainless steel.
