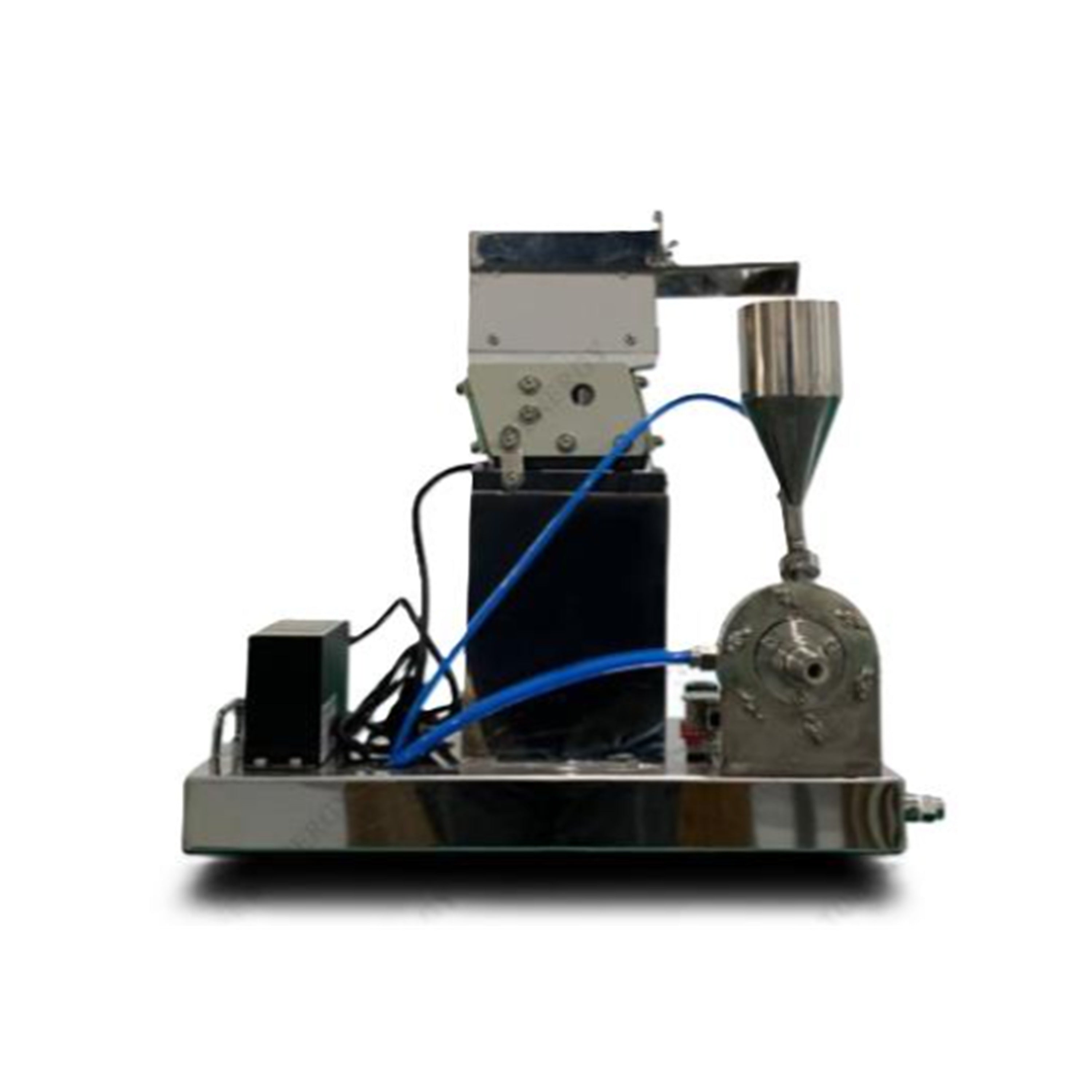

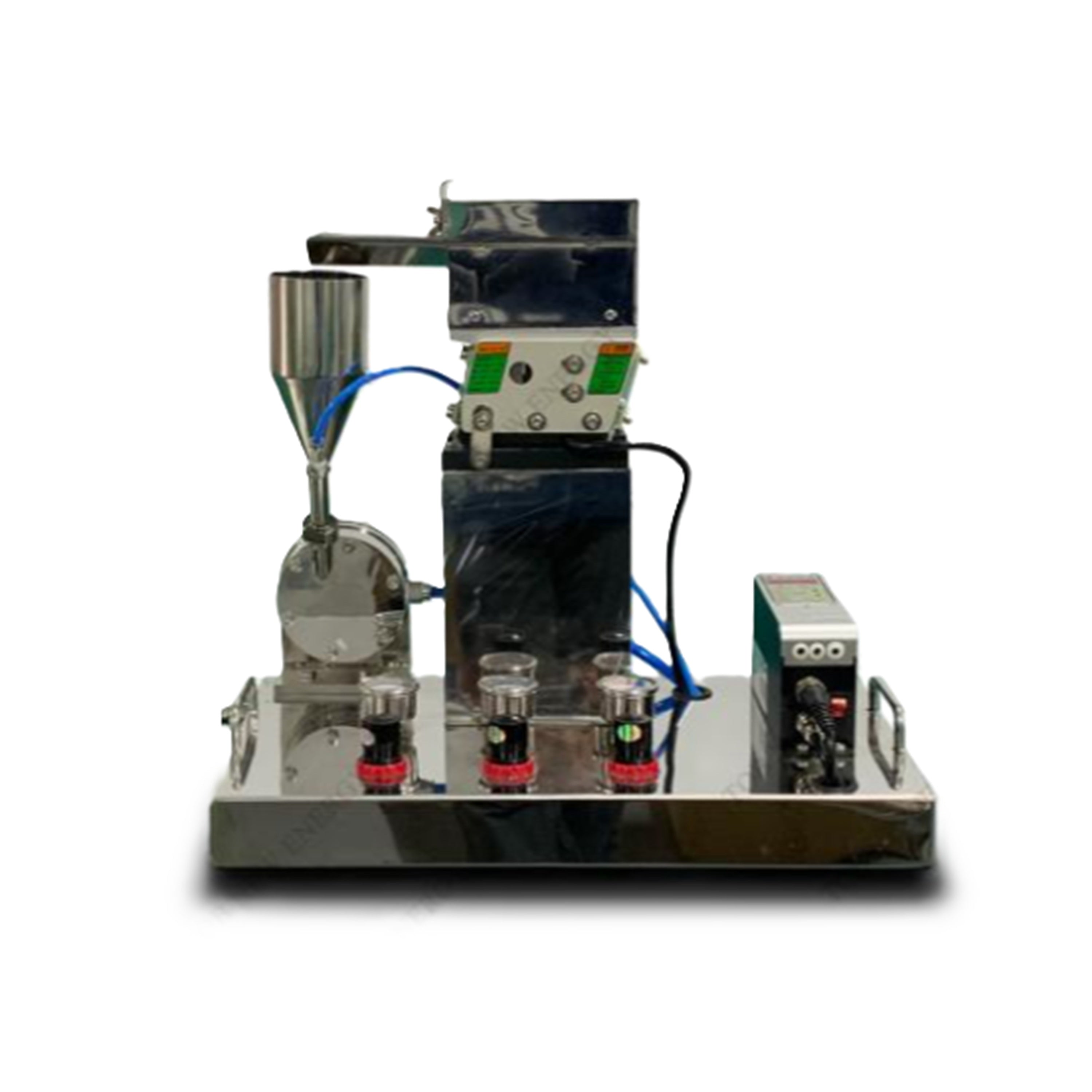

MSE PRO Laboratory Jet Mill for Dry Electrode Powder

MSE PRO™ Laboratory Jet Mill for Dry Electrode Powder

MSE PRO™ Laboratory Jet Mill for Dry Electrode Powder uses spiral air flow crushing is that the high-speed air flow drives the material to collide with each other in the grinding chamber in the tangential direction, and the material is broken under the comprehensive force such as shear. After the compressed gas is released instantaneously through the Laval nozzle, the heat absorption effect is generated, and the heat generated in the crushing process is taken away, so that the material can be crushed at low temperature.

Performance characteristics

• Suitable for R&D new product research and development
• Spiral air mill is a special manufacturing device for crystal structure
• Can be crushed product particle size D50 2~100 microns
• Small batches (5g) of materials can be processed efficiently, with maximum production depending on material properties and particle size requirements.
• It can reach 100g~500g/h, and the maximum output of easily crushed materials can reach 1000g/h.

Design features

• Easy to clean overall design, no dead corners or gaps, no welding points.
• Low loss rate, high yield (> 95%).
• Compact for laboratory or benchtop operation.
• The nozzle ring and the bottom of the mill can be separated, and the nozzle is designed in the nozzle ring.
• Separate connection for compressed air injection for grinding, independent pressure regulation.
• The system can be completely disassembled without tools for easy cleaning.
• Vibratory feeding is used, or manual feeding is optional (custom)

Power and compressed air

• Power: 220V, 60Hz
• Compressed air volume: 1m3/min, pressure 0.6mpa

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Airflow Crushers. Please contact us for more information.

Specifications:
