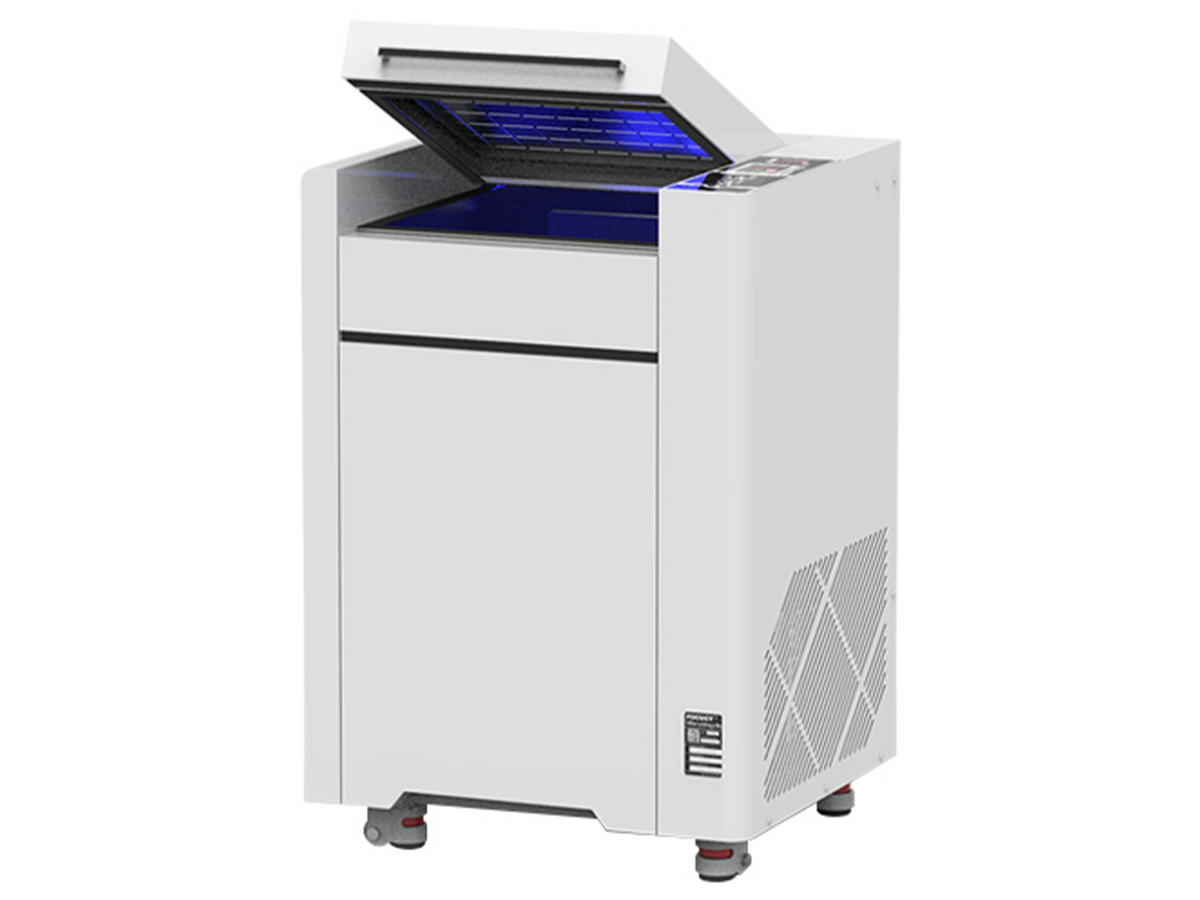

MSE PRO Laboratory Cryogenic Planetary Ball Mill with Freezer, 1L (4×250mL)
SKU: MA0938
MSE PRO™ Laboratory Cryogenic Planetary Ball Mill with Freezer, 1L (4×250mL)
MSE PRO™ Laboratory Cryogenic Planetary Ball Mill combines a planetary ball mill with a freezer. It offers rapid cooling to temperatures as low as -10°C to -20°C, effectively mitigating the adverse effects of high temperatures on sample properties during the grinding process. As a result, it is widely used in laboratories for preparing heat-sensitive samples.
In order to use the machine properly, 2 or 4 jars are needed. Please select the options carefully according to your specific needs.
- Efficient Cooling: Rapid cooling down to -10 to -20°C, effectively controlling the sample temperature.
- Prevents Sample Degradation: Prevents changes in sample properties due to high temperatures, especially suitable for heat-sensitive substances.
- Improved Grinding Efficiency: Cooling enhances grinding efficiency and ensures sample stability at low temperatures.
- Versatility: Suitable for grinding various types of samples, especially temperature-sensitive and volatile substances.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Ball Mills. Please contact us for more information.
Specifications:
| SKU# | MA0938 |
| Maximum Sample Size | < 10mm |
|
Particle Size Range |
0.1-20um |
| Recommended Number of Jars | 2 or 4 |
|
Max. Jar Volume |
250mL |

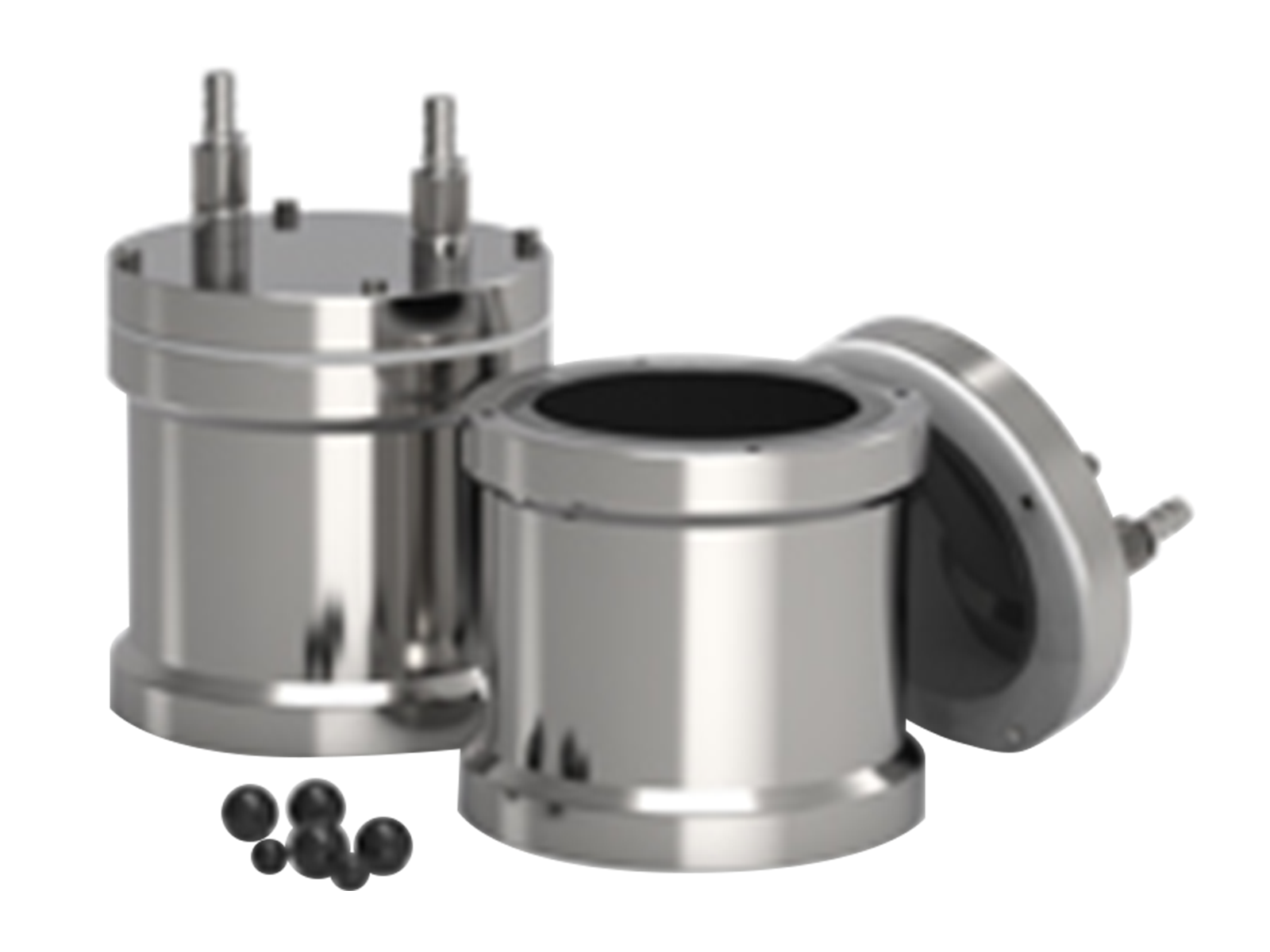

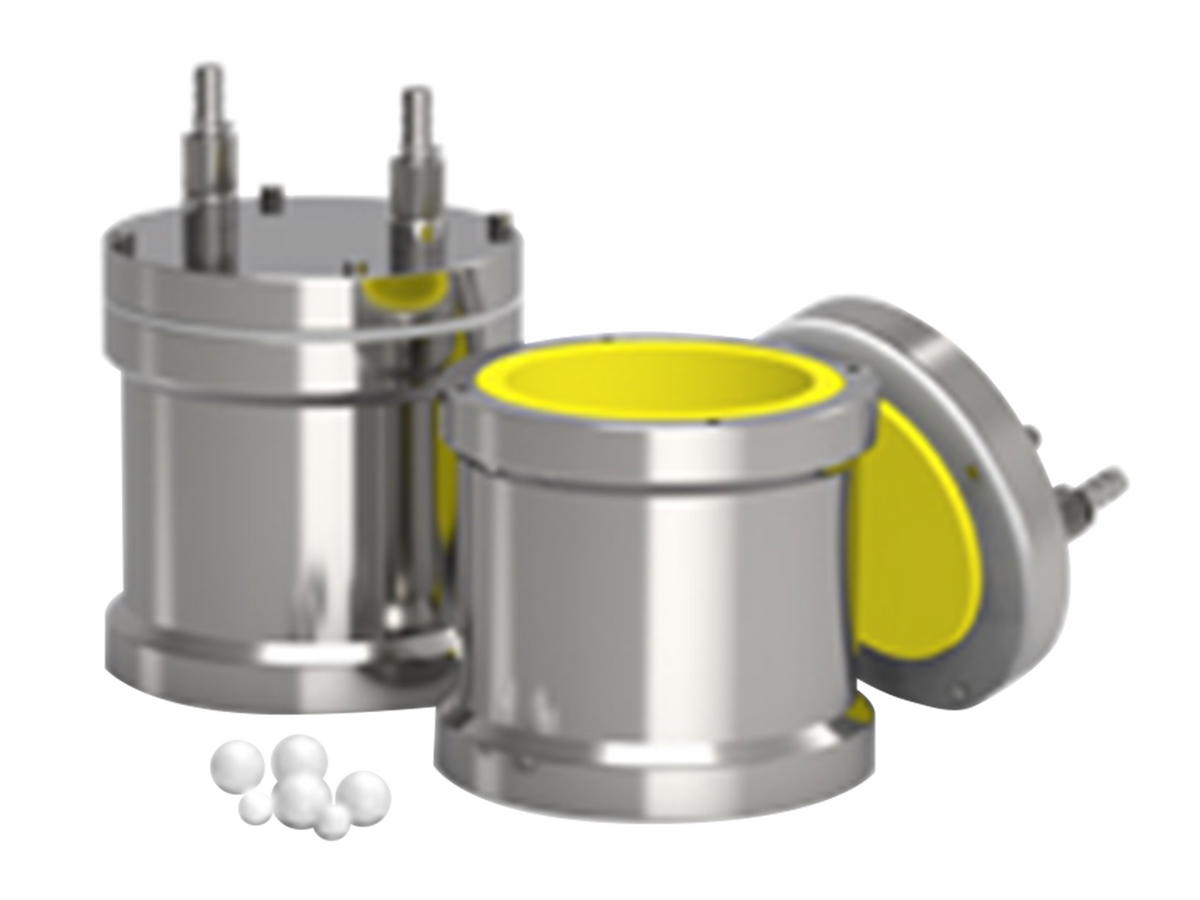

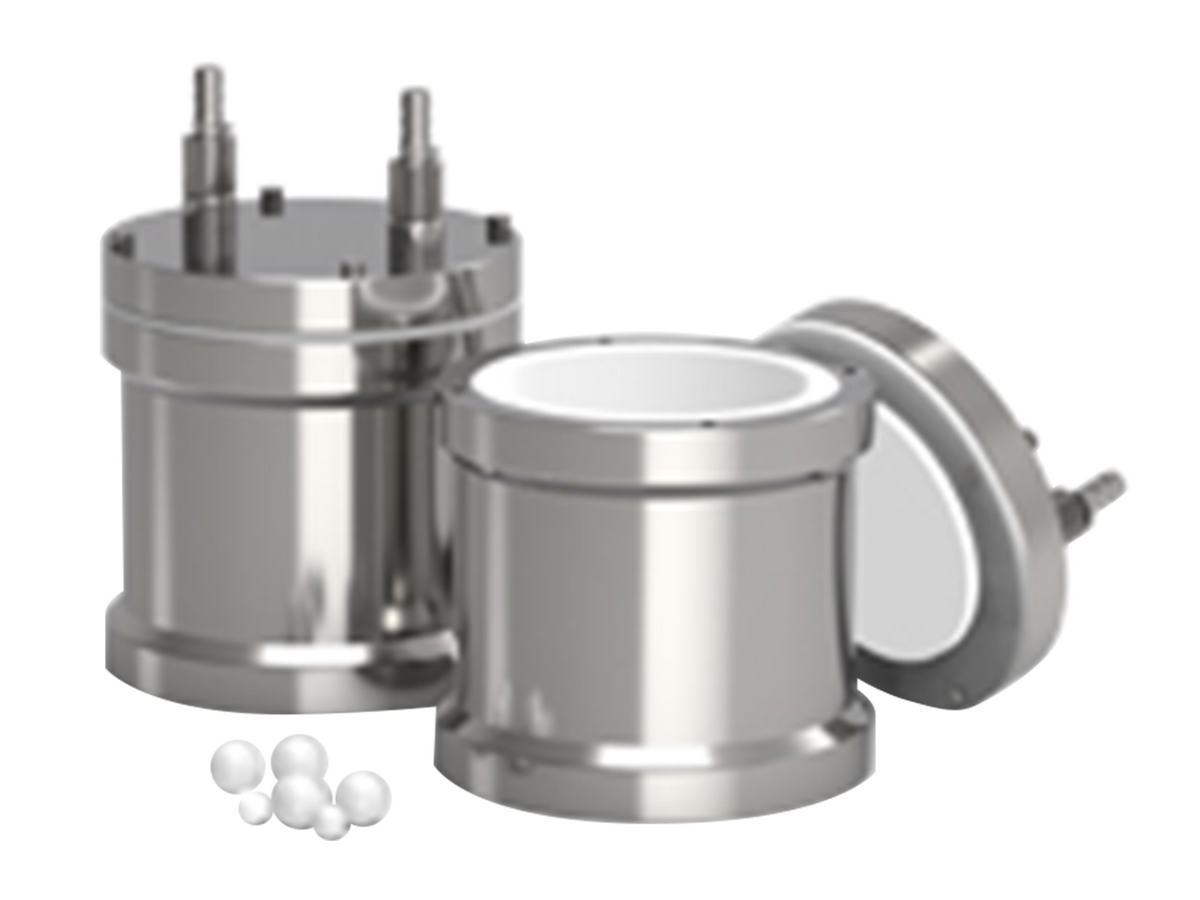

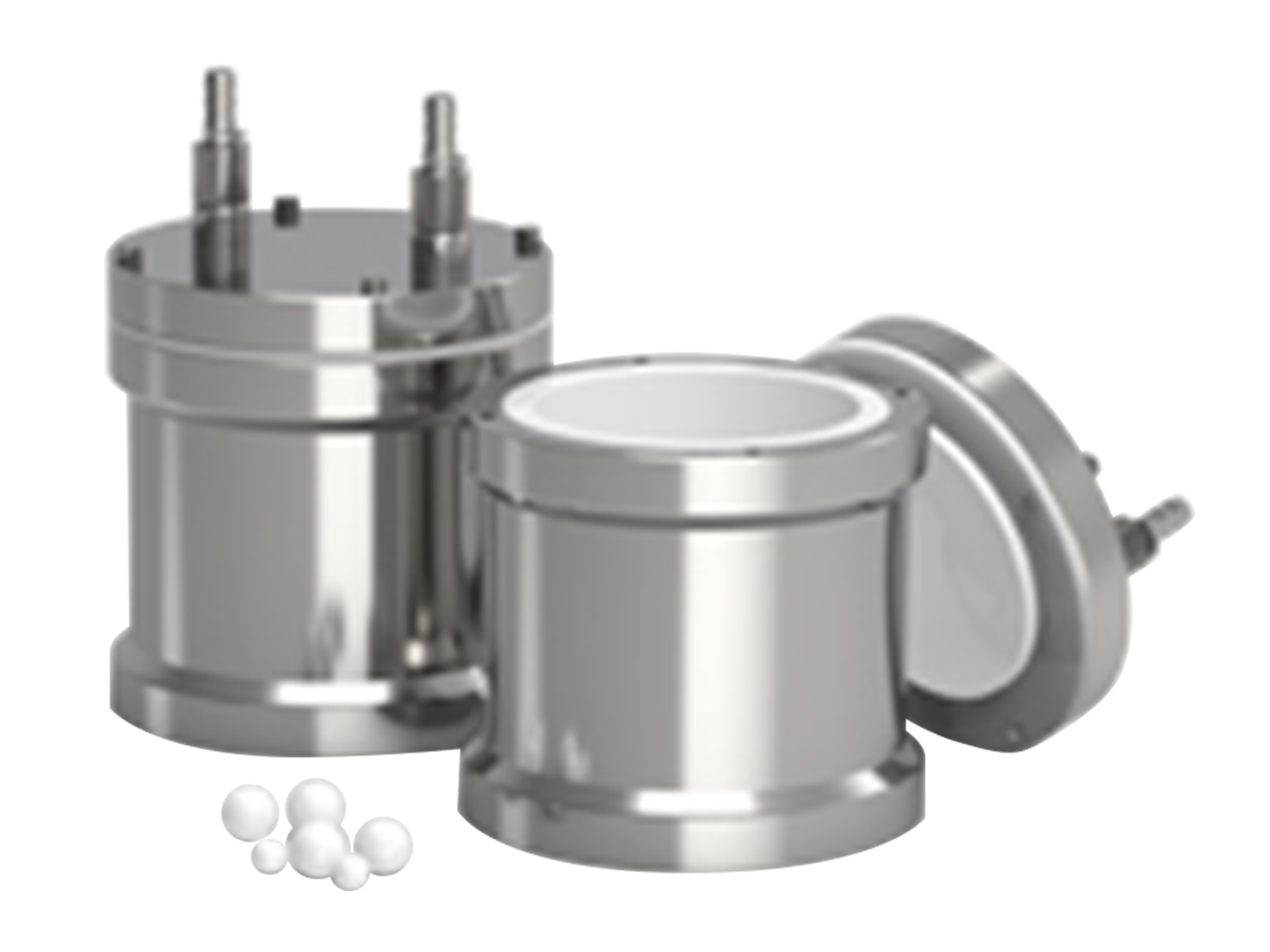

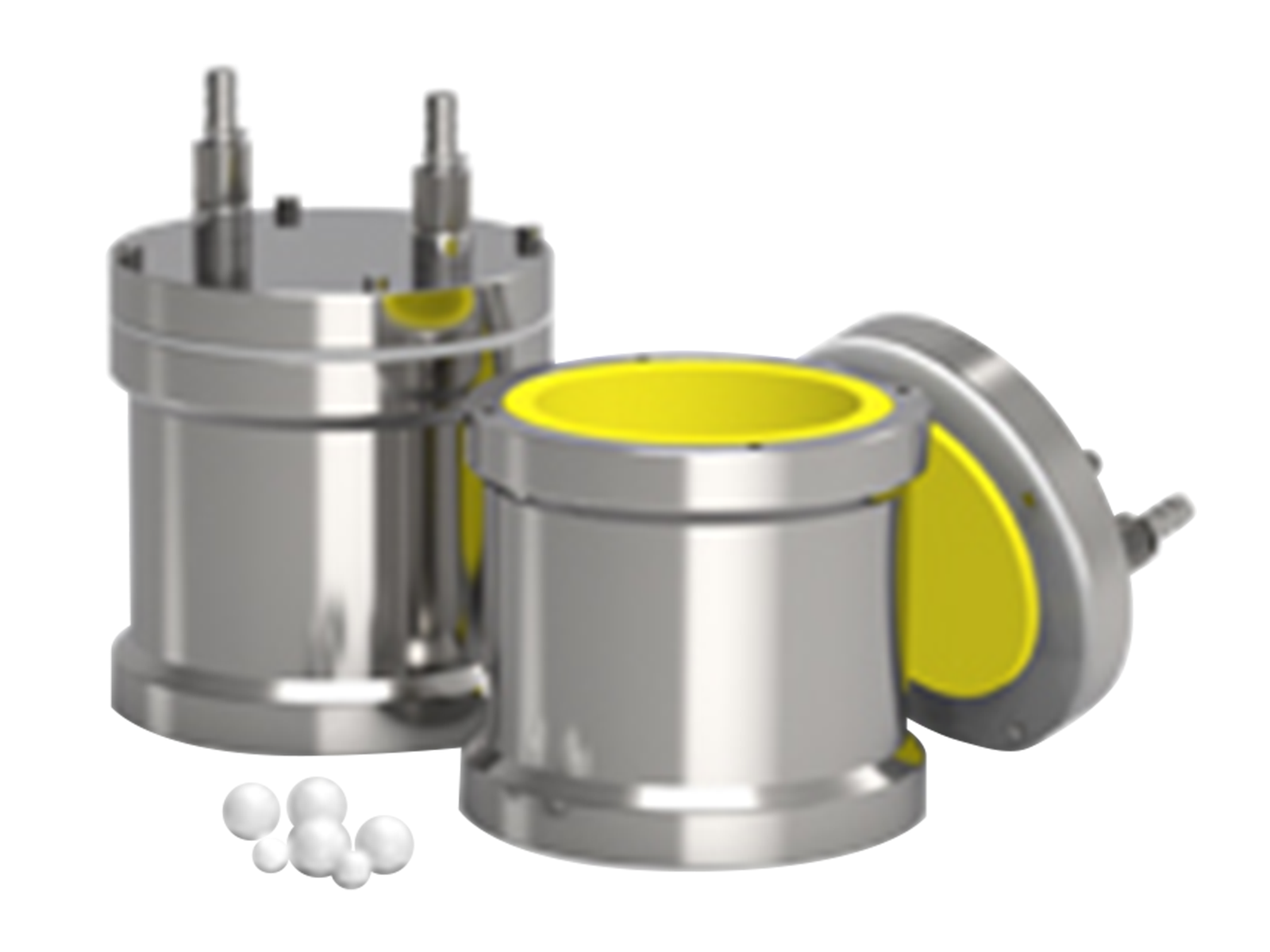

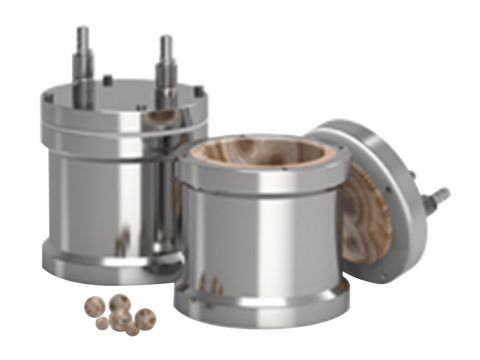

| Jar Material |
Zirconia, Tungsten Carbide, Nylon, Agate, FTPE |
| Grinding Method | Dry Grinding | Wet Grinding |
| Maximum Jar Rotation Speed | 900rpm (adjustable) |
| Minimum Cooling Temperature | -10 to -20°C |
| Cooling Power | 1200W |
| Planetary Disk Material | 304 Stainless Steel |
| Motion Mode | Planetary Motion |
| Function | Freezing | Continuous and Intermittent Operation | Emergency Stop | Timer | Speed Control | Power-off Memory | Overload and Hazardous Operation Protection | Temperature Detection | Temperature Control |
| Additional Features | Soundproofing | Insulation | Rust Prevention | Heat Dissipation | LED Lighting |
| Electrical Description | 100-120V/200-240V AC ,50-60Hz,2KW |
| Net Weight | 128kg |
| Dimensions (mm) | 600×670×880 (W×L×H) |
| Certificates | CE |
