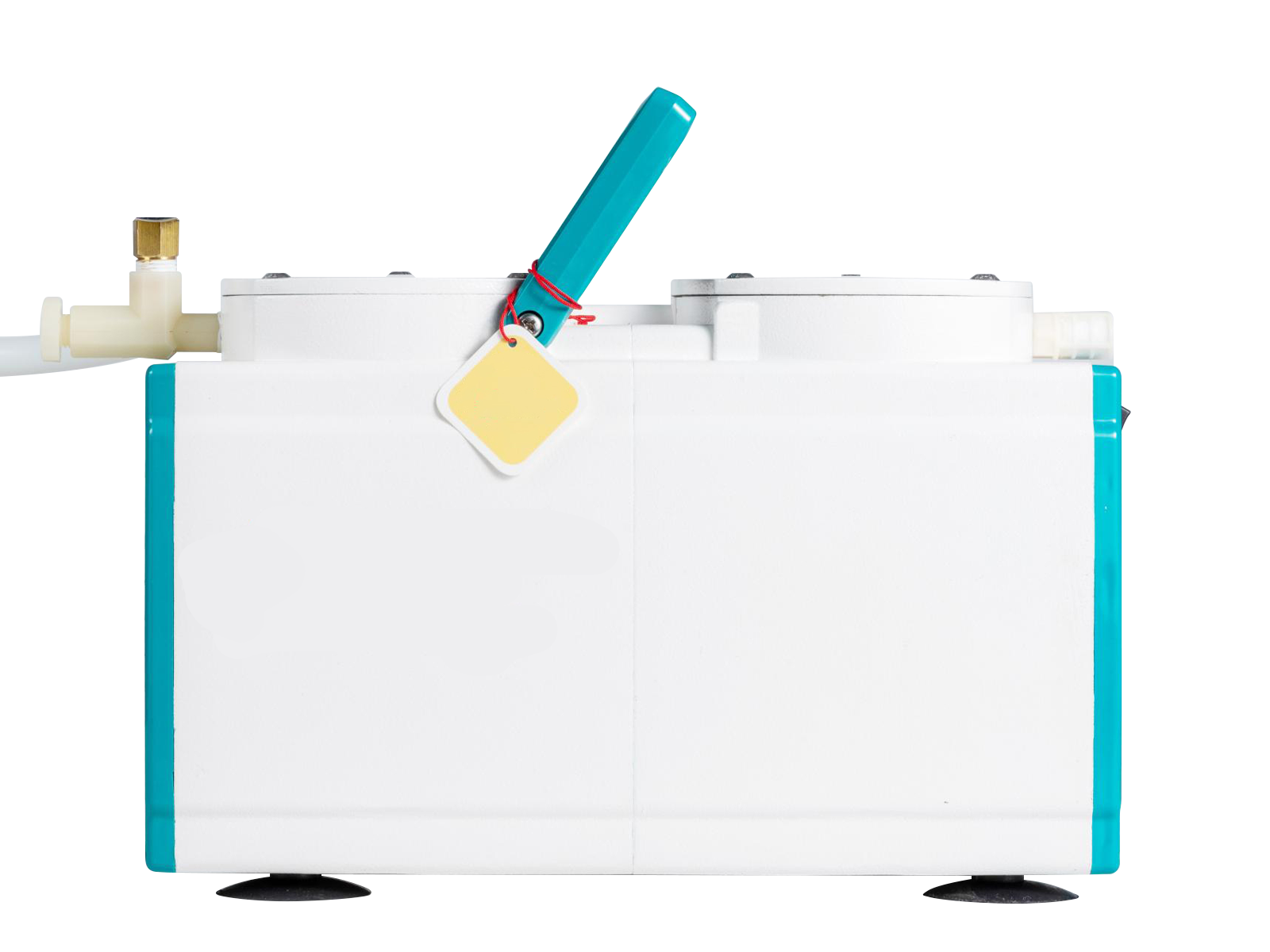

MSE PRO Laboratory Anticorrosive PTFE Diaphragm Vacuum Pump, 1.06CFM
SKU: LS9057
MSE PRO™ Laboratory Anticorrosive PTFE Diaphragm Vacuum Pump, 1.06CFM
MSE PRO™ The Laboratory Anticorrosive PTFE Diaphragm Vacuum Pump is designed with high chemical resistance, making it ideal for handling aggressive and corrosive gases or vapors. Its PTFE (polytetrafluoroethylene) diaphragm ensures durability and reliability in harsh environments, providing a long service life with minimal maintenance. This pump is widely used in applications such as chemical analysis, filtration, degassing, and other laboratory processes where contamination-free operation is crucial. Additionally, it operates quietly and without oil, reducing the risk of sample contamination and simplifying maintenance procedures.
Features:
- The oil-free design and well-sealed structure ensure that the pumped gases are not contaminated, ideal for applications requiring a pure vacuum.
- Provides stable vacuum levels and good performance, suitable for various applications.
-
Operates with low noise levels, making it suitable for noise-sensitive environments.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies can offer lab and industrial Vacuum Pump with a variety of size. Please contact us for more information.
Specifications:
| SKU# | LS9057 |
|
Max Pumping Speed (CFM/L/Min)
|
1.06/30 |
|
Ultimate Pressure (mbar)
|
50 |
|
Power Supply Voltage
|
110V 60Hz (Standard)
220V 50Hz (Optional)
|
|
Motor Power (W)
|
160
|
|
Inlet (mm)
|
φ6
|
|
Temperature of Working
Environment (℃ )
|
7-40
|
|
Function
|
Vacuum
|
|
Pump Head
|
Double
|
|
Temp of The Body (℃ )
|
＜55
|
|
Dimensions (mm)
|
350 (L) x 130 (W) x 120 (H)
|
|
Noise Level (dB)
|
≤60
|
|
Weight (kg)
|
10
|
