MSE PRO Laboratory 10-Jar Horizontal Mill, 2.5-30L Size
SKU: MA0926
MSE PRO™ Laboratory 10-Jar Horizontal Mill, 2.5-30L Size

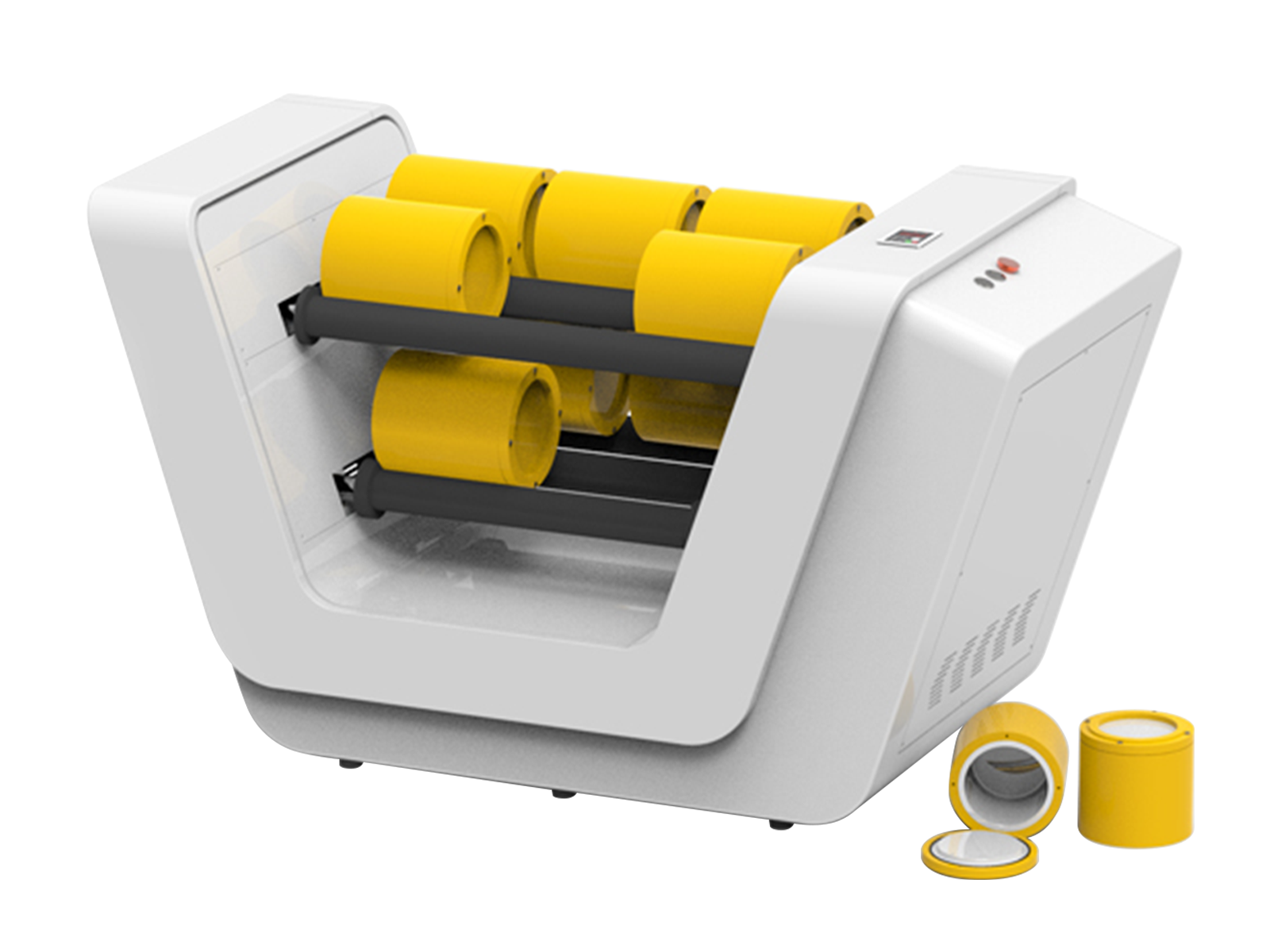

MSE PRO™ Laboratory 10-Jar Horizontal Mill can accommodate 10 ball mills with a capacity of 3000ml or less. With more comprehensive functions, optimized configuration, and enhanced processing capabilities, the product has gained significant attention and support from users.
You must purchase specific milling jars to use it. Please select the options carefully according to your specific needs.
- High grinding efficiency: Enables faster and more effective sample processing.
- Variable frequency control for adjustable speed: Allows precise control over grinding speed.
- Timer function for easy operation: Facilitates consistent and automated grinding.
- Quick roller replacement design: Simplifies maintenance and reduces downtime.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Jar Mills. Please contact us for more information.
Specifications:
| SKU# | MA0926 |
| Maximum Sample Size | < 5mm |
|
Particle Size Range |
1-20um |
| Max jar capacity |
10 |
|
Jar Volume |
250-3000mL available |
| Jar Material |
Zirconia, Tungsten Carbide, Nylon, Stainless Steel Agate, Polyurethane |
| Grinding Method |
Dry | Wet Grinding
|
| Number of Rollers | 6 |
| Roller Speed | 900rpm (adjustable) |
| Roller Cover Material | Polyurethane |
| Roller Movement Method | Electric Control |
| Main Functions | Continuous grinding | Intermittent grinding | Alternating grinding | Emergency stop, timer | Overload and safety operation protection | Power failure memory with electric control sliding rubber roller | Quick roller replacement |
| Additional Features | Heat dissipation |
| Electrical Description | 100-120V/200-240V AC ,50-60Hz,1100W |
| Net Weight | 165kg |
| Dimensions (mm) | 1330×670×740 (W×L×H) |
| Certificates | CE |
