MSE PRO Lab Ultrasonic Battery Spot Welding Machine for Cathode and Anode Electrode
MSE PRO™ Lab Ultrasonic Battery Spot Welding Machine for Cathode and Anode Electrode

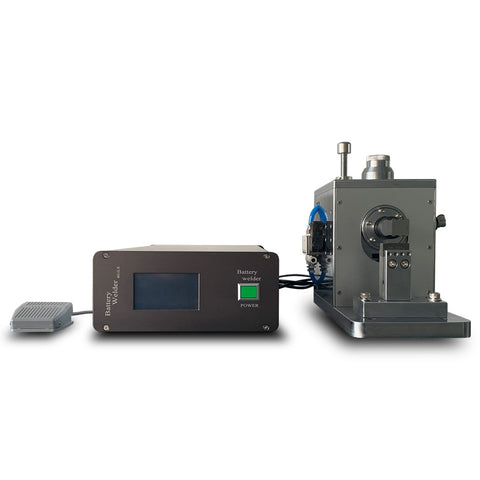

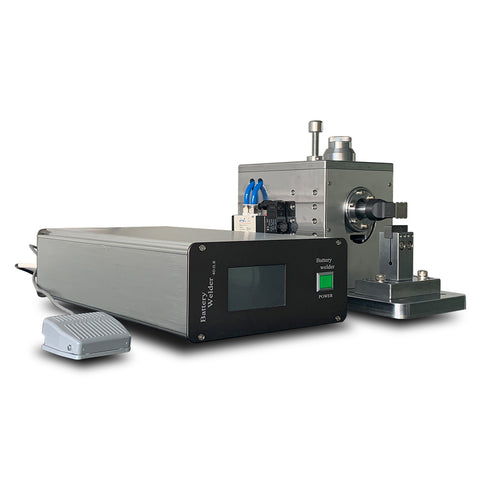

MSE PRO Lab Ultrasonic Battery Spot Welding Machine is ideal for welding cylindrical cell single layer electrode foil with battery tabs. It is a versatile tool suitable for both anode and cathode welding. In a battery laboratory setting, it can also handle electrode welding for pouch cells with up to 15 layers in a 4x4mm area.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Specifications:
| Product number (SKU#) | BR0298 |
| Power Supply | 110V 60Hz |
| Ultrasonic power | 800W |
| Ultrasonic frequency | 40kHz |
| Air pressure | ≧ 0.6MPa, adjustable |
| Welding area | 3x25mm |
| Welding time | within 0.2s, adjustable |
| Welding point |
Cathode 3x25mm 1 point strip Anode 3x3x25mm 3 points |
| Welding tensile strength | ≧ 4N |
| Weight | 50kg |
| Cathode | |
| Electrode materials | Aluminum foil |
| Electrode thickness | 12-20um (Single layer) |
| Tab materials | Aluminum strip |
| Tab thickness | 0.1~0.2mm (Single layer) |
| Anode | |
| Electrode materials | Copper foil |
| Electrode thickness | 6-10um (Single layer) |
| Tab materials | Nickel strip |
| Tab thickness | 0.1~0.2mm (Single layer) |
