MSE PRO Lab Scale 40-Ton Manual Hydraulic Pellet Press
MSE PRO™ Lab Scale 40-Ton Manual Hydraulic Pellet Press
Our MSE PRO™ lab scale 40-Ton manual hydraulic pellet press has unique features such as compact structure, small volume, fast compression, simple operation, easy cleaning and low maintenance. It is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
If you need other maximum pressure requirements or customized designs, please contact MSE Supplies. The product image is for reference only. The actual product appearance is based on the specific product configuration.
If you use this press inside a glove box, please check the O-ring seal periodically to avoid oil leak.
| Product SKU # |

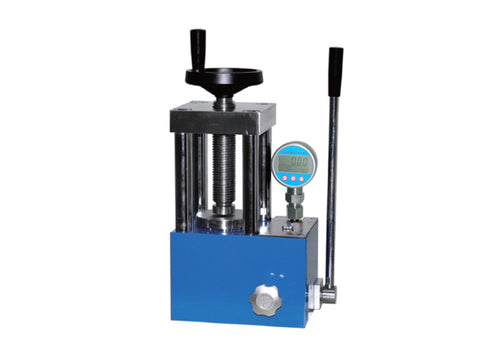

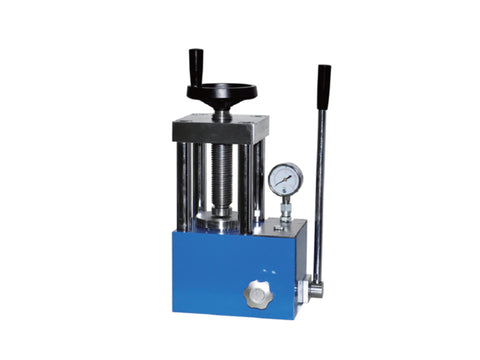

Regular Pressure Gauge PR0347A Digital Pressure Gauge PR0347B |
| Pressure range | 0-40 Metric Tons (0-30Mpa) |
| Max pressure | 40 Tons |
| Diameter of piston | 130mm |
| Maximum travel distance of the piston | 50mm |
| Pressure stability | ≤1MPa/10min |
| Sample stage diameter | 140mm |
| Working area | 106mm x 180mm |
| Dimensions |
295mm x 215mm x 500mm
|
| Net weight | 75kg |
| Warranty | Limited one year warranty, not responsible for the damage caused by improper use |
| Note | Please clean the press after each use to ensure the best performance and longer life time |
