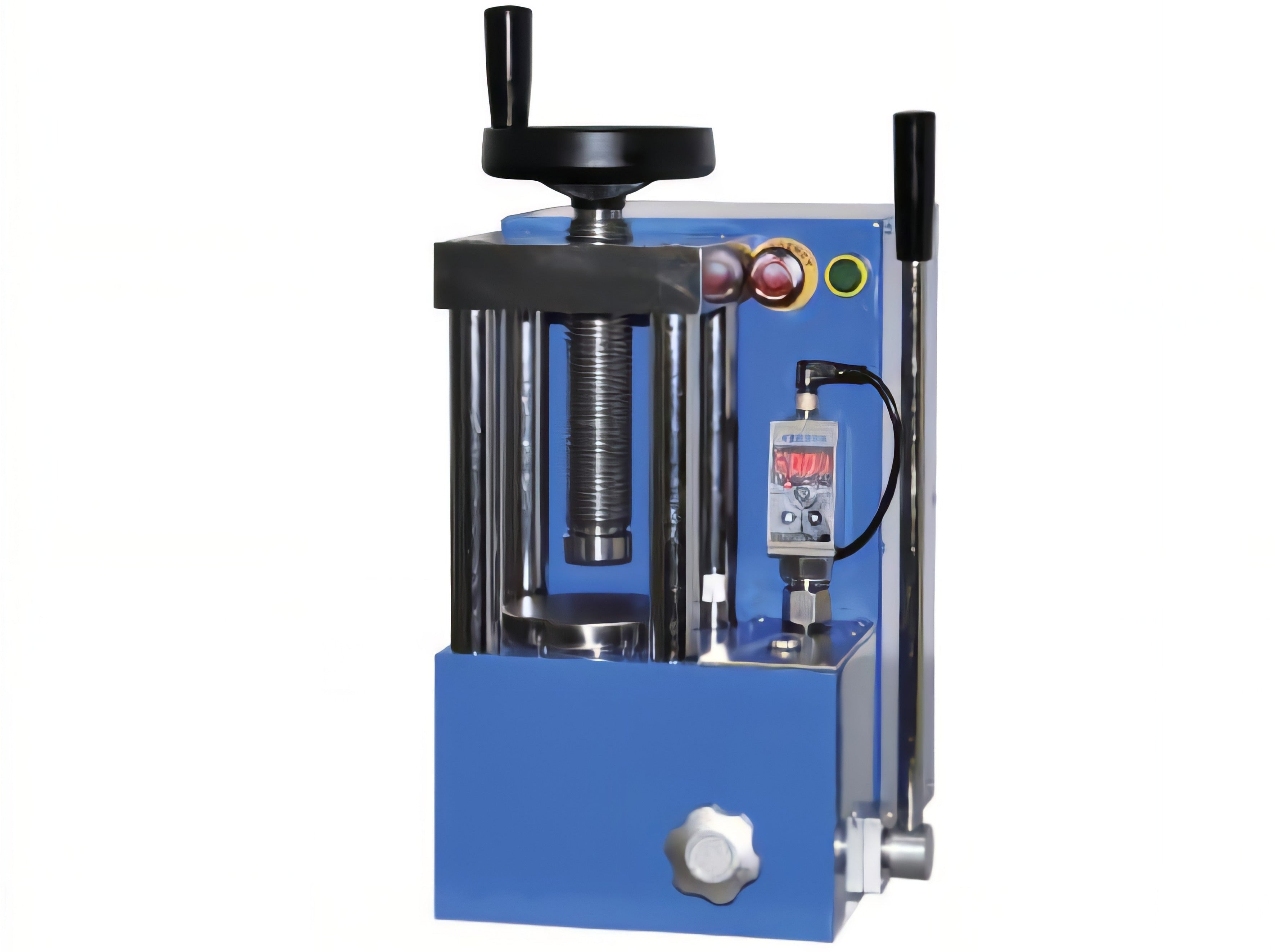

MSE PRO Lab Scale 30-Ton Electric Hydraulic Pellet Press
MSE PRO™ Lab Scale 30-Ton Electric Hydraulic Pellet Press
Our lab scale 30-Ton electric hydraulic pellet press has unique features such as compact structure, small volume, fast compression, simple operation, easy cleaning and low maintenance. Compared with manual pressing, the electric pellet press is easier to operate. It is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
If you need other maximum pressure requirements or customized designs, please contact MSE Supplies.
Specifications
| Product SKU # | PR0348 |
| Pressure range | 0-30 Metric Tons (0-31.5Mpa) |
| Diameter of piston | 110mm (d) |
| Maximum travel distance of the piston | 40mm (T) |
| Pressure stability | ≤1 MPa/10min |
| Pressurization mode | Electric/manual |
| Compensation mode | Auto/manual |
| Sample stage diameter | 120mm (D) |
| Working space | 92mm x 160mm (MxN) |
| Dimensions |
275mm x 430mm x 420mm (WxLxH)
|
| Net weight | 72kg |
| Power supply |
110V 60Hz |
| Warranty | Limited one year warranty, not responsible for the damage caused by improper use. |
| Note | Please clean the press after each use to ensure the best performance and longer lifetime. |
