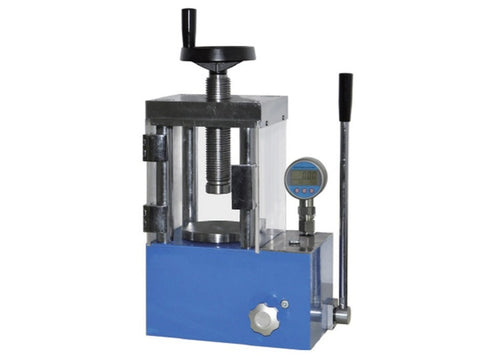

MSE PRO Lab Scale 24-Ton Manual Hydraulic Pellet Press with Safety Shield and Digital Pressure Gauges
MSE PRO™ Lab Scale 24-Ton Manual Hydraulic Pellet Press with Safety Shield and Digital Pressure Gauges
Our lab scale 24-Ton manual hydraulic pellet press has unique features such as compact structure, small volume, fast compression, simple operation, easy cleaning and low maintenance. It is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
If you need other maximum pressure requirements or customized designs, please contact MSE Supplies.
If you use this press inside a glove box, please check the O-ring seal periodically to avoid oil leak.
| Product SKU # | PR0339 |
| Pressure range | 0-24 Metric Tons (0-34MPa) |
| Diameter of piston | 95mm (d) |
| Maximum travel distance of the piston | 30mm (T) |
| Pressure stability | ≤1 MPa/10min |
| Pressure gauges | Digital display 0.00-40.00MPa |
| Sample stage diameter | 105mm (D) |
| Working area | 112mm x 160mm (MxN) |
| Dimensions |
305mm x 195mm x 425mm (WxLxH)
|
| Net weight | 65 kg |
| Safety shield | Plexiglass safety shield |
| Warranty | Limited one year warranty, not responsible for the damage caused by improper use |
| Note | Please clean the press after each use to ensure the best performance and longer life time |
