MSE PRO Lab Scale 20-Ton Electric Hydraulic Pellet Press

  • $ 3,15900
  • Save $ 34500

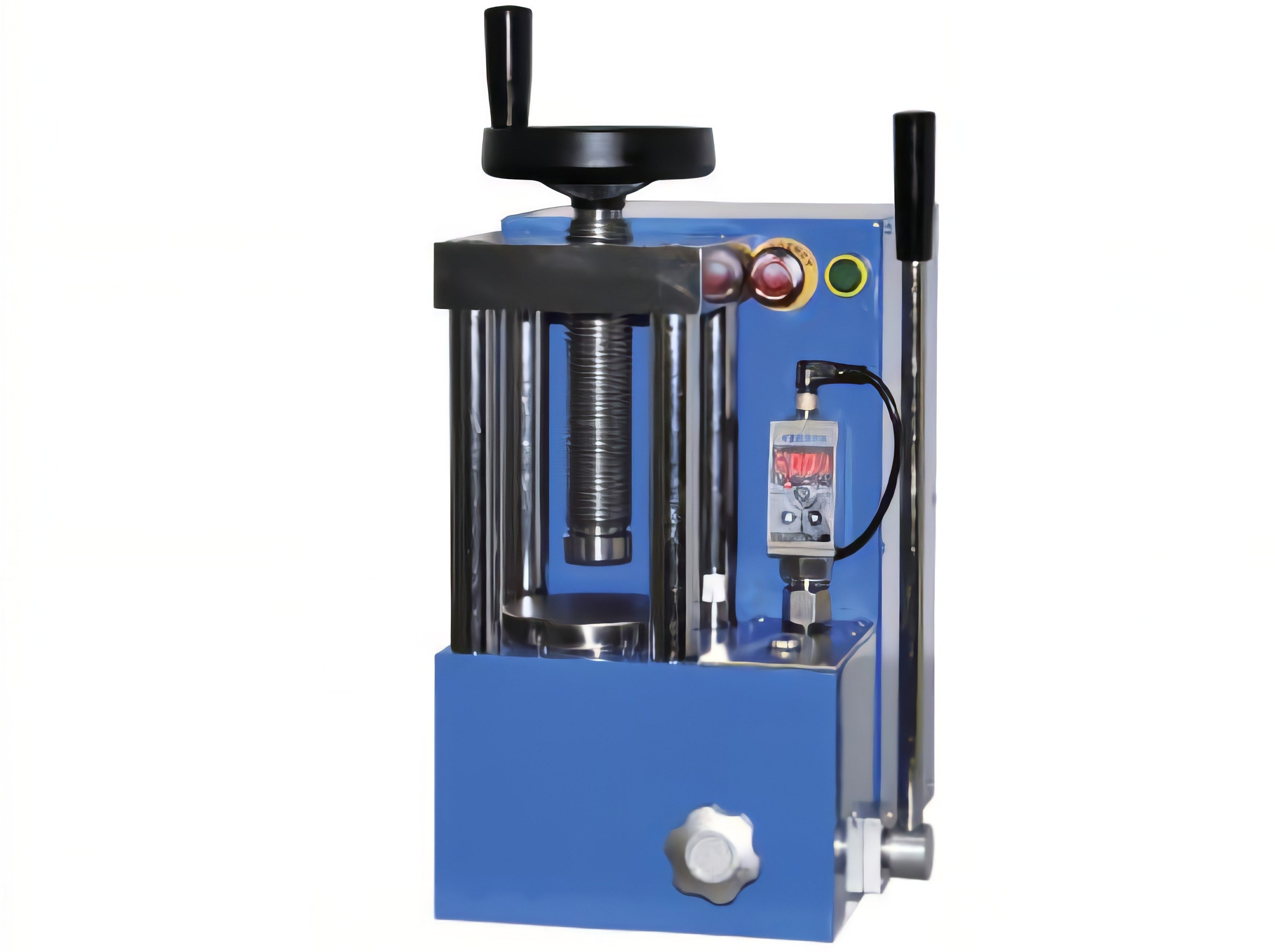

MSE PRO™ Lab Scale 20-Ton Electric Hydraulic Pellet Press

Our lab scale 20-Ton electric hydraulic pellet press has unique features such as compact structure, small volume, fast compression, simple operation, easy cleaning and low maintenance. Compared with manual pressing, the electric pellet price is easier to operate. It is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.

At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.

If you need other maximum pressure requirements or customized designs, please contact MSE Supplies.

Specifications

    Product SKU # PR0340
    Pressure range 0-20 Metric Tons
    Diameter of piston 95mm (d)
    Maximum travel distance of the piston 30mm (T)
    Pressure stability ≤1 MPa/10min
    Pressure gauge Digital display 0.00-40.00 MPa
    Pressurization mode Electric/manual
    Compensation mode Auto/manual
    Sample stage diameter 105mm (D)
    Working space 80mm x 150mm (MxN)
    Dimensions
    245mm x 415mm x 415mm (WxLxH)
    Net weight 58kg
    Power Supply
    110V 60Hz
    Warranty Limited one year warranty, not responsible for the damage caused by improper use
    Note Please clean the press after each use to ensure the best performance and longer life time
