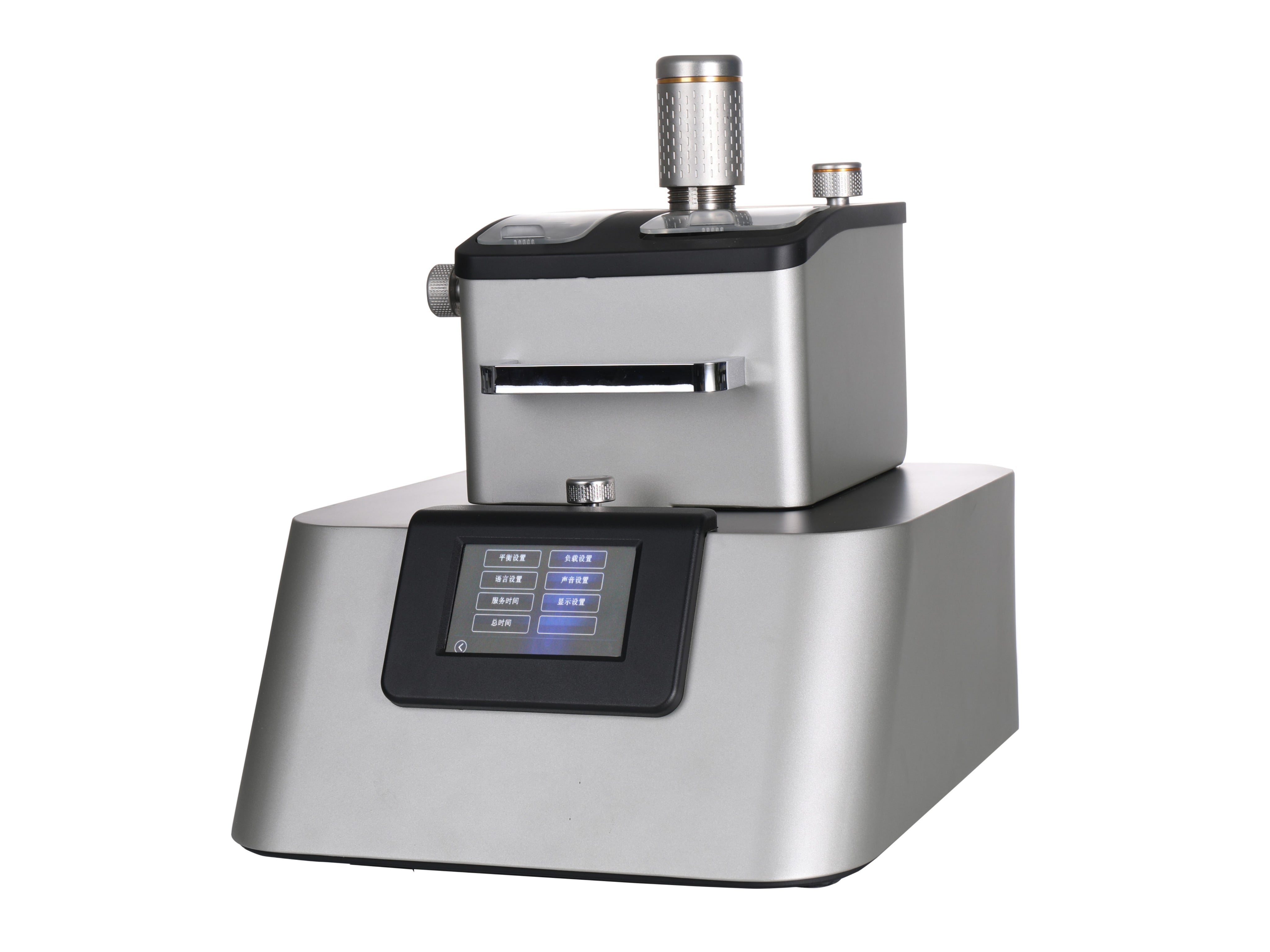

MSE PRO Lab Mortar Grinder
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE Supplies offers the Lab Mortar Grinder, a reliable tool for grinding, homogenizing, and mixing a wide selection of samples in dry/wet or cryogenic conditions. It is capable for processing hard, soft, brittle or pasty samples with extraordinary efficiency. It is designed to be easy and safe to operate.
Please Contact us today to discuss your needs.

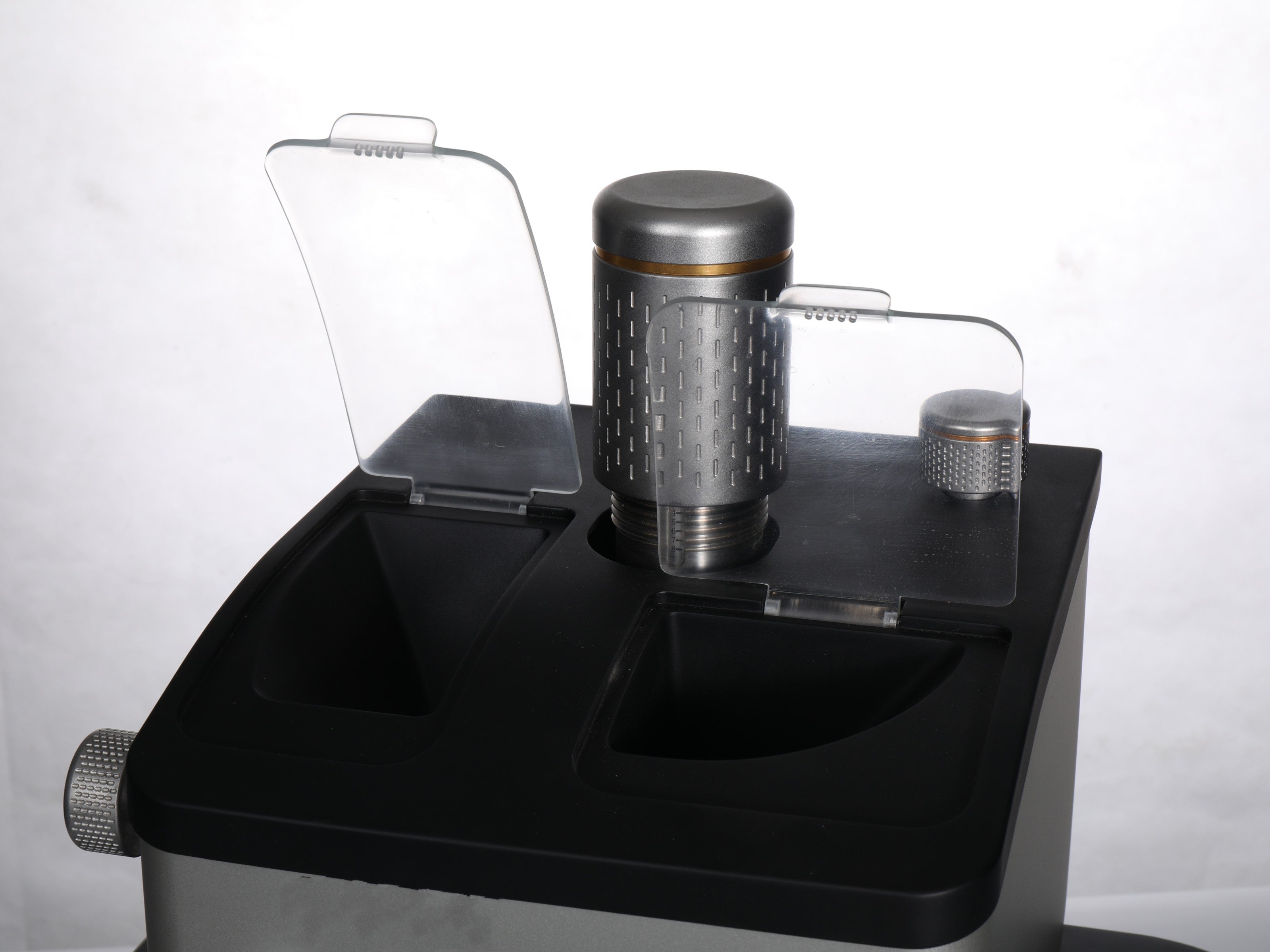

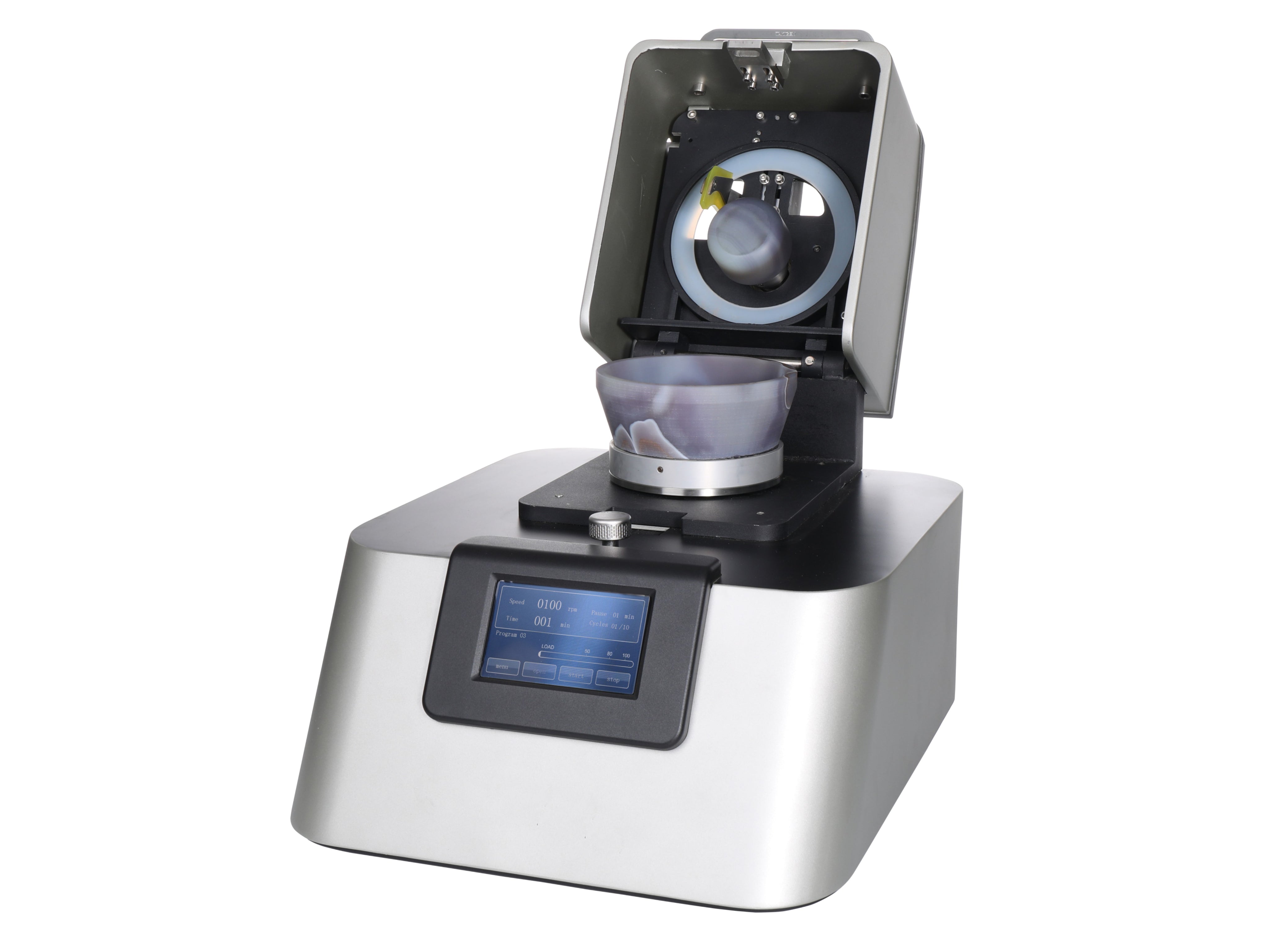

The sample enters the grinding area between the pestle and mortar via hopper and is crushed by pressure and friction. The function of the scraper is to feed the material into the area between the mortar and pestle. This forced feed ensures that the whole sample is continuously subjected to grind and is also intensively mixed.
Features and advantages
Easy to clean
- Easy and safe to operate
- Suitable for dry, wet, and cryogenic grinding
- Pretreatment for some rough samples
- Adding samples through the filling opening during the operation
- A variety of scraper materials are available (polyurethane, PTFE, beech wood) to meet all application requirements.
Applications of Lab Mortar Grinder:
|Feed size||≥15mm, depending on the sample property|
|Final fineness||≤5μm, depending on the sample property|
|Speed||50~130rpm, speed is adjustable|
|Mortar and pestle||
Stainless steel/Hardened steel/Tungsten carbide/Agate/Sinter aluminium oxide/Zirconium oxide
|Time setting||00:01~99:59 (h/min)|
|Setting pestle pressure /position||Vertical by adjusting knob+scale|
|Setting scraper pressure/position||By adjusting knob|
|Display||Digital tube display|
|Lock device||External helix-screw device|
|Power supply||110V single phase (by default). Other voltage options are available upon request (extra cost applies)|
|Instrument size (W*D*H)||400*480*500mm|
|Package size (W*D*H)||600*600*610mm|

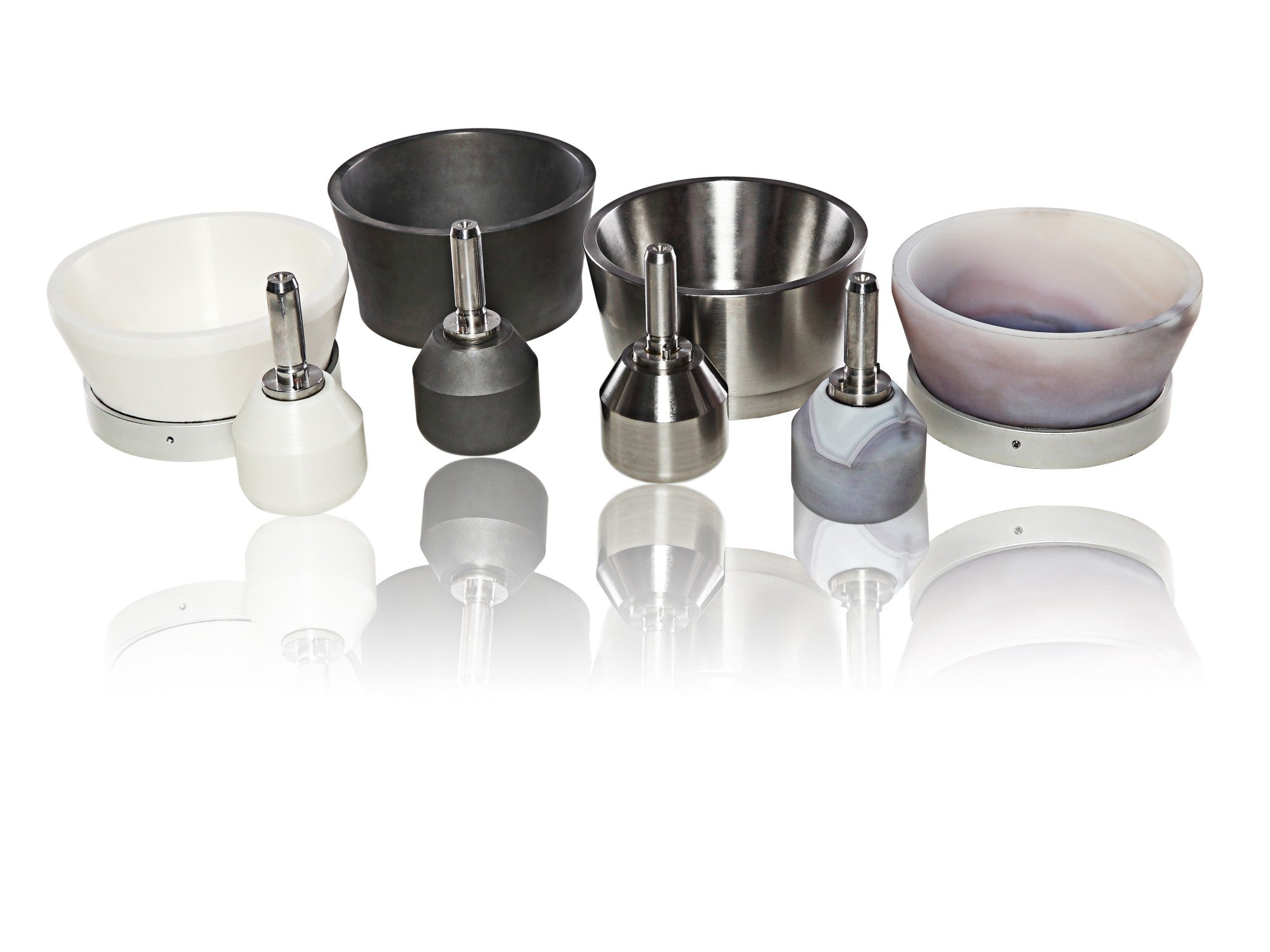

Options for mortars and pestles
|Grinding set materials||Hardness||Abrasion resistance||Sample type||Dry grinding||Wet grinding||Cryogenic grinding|
|Stainless steel||48-52HRC||Good||Medium-hard, brittle||YES||YES||YES|
|Hardened steel||60HRC||Good||Medium-hard, brittle||YES||NO||NO|
|Tungsten carbide||1180-1280HV30||Very good||Medium-hard, fibrous||YES||YES||YES|
|Sinter aluminium oxide||1750HV||Normal||Medium-hard, soft||YES||YES||NO|
|Zirconium oxide||1200HV||Good||Medium-hard, soft||YES||YES||NO|
