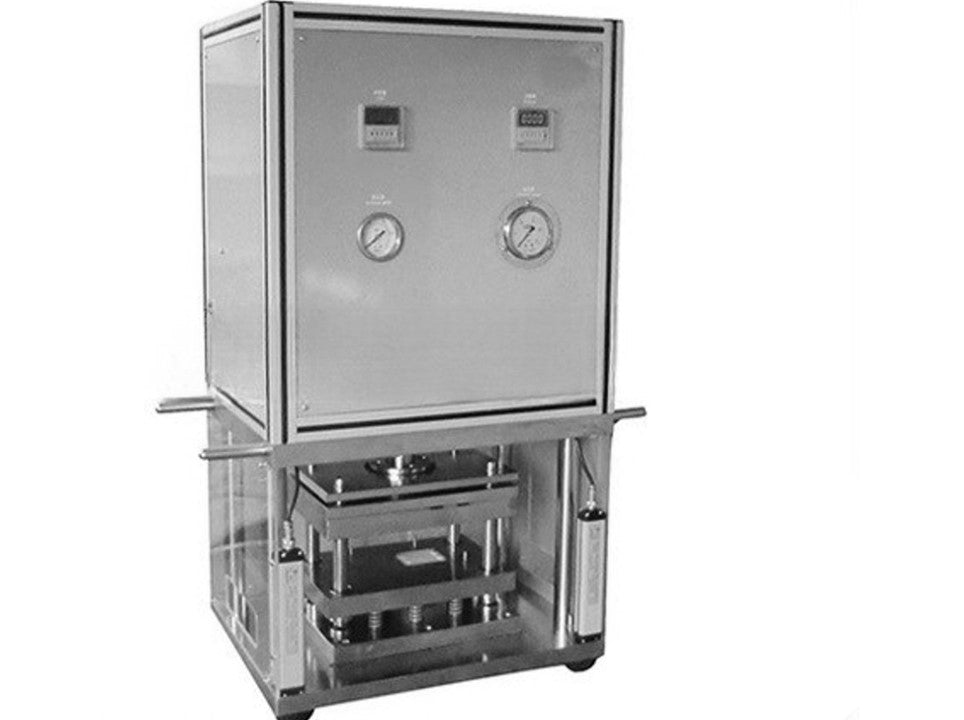

MSE PRO Lab Battery Pouch Forming Machine
SKU: BR0294
MSE Supplies offers high-quality battery pouch forming machine. It is used for lithium polymer battery/pouch cell cup forming in the production line of making pouch cell batteries. This aluminum laminated film pouch forming machine is designed with simple spring mold with a small size, which is suitable for research in laboratory settings.
The size of the suitable pouch cell can be customized upon request.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
SPECIFICATIONS
| Product number (SKU#) | BR0294 |
| Source voltage | AC 110V, 50/60Hz |
| Power | 100W |
| Al film thickness |
0.1-0.2mm |
| Suitable Al film size | 160*120mm(L*W), can be customized |
| Punching thickness | Max. 6mm |
| Punching pressure | Max. 3T |
| Dimension(L*W*H) | 460*320*925mm |
| Weight | About 130kg |
