Hydraulic Manual Crimper for All Types of Battery Coin Cells,  MSE Supplies

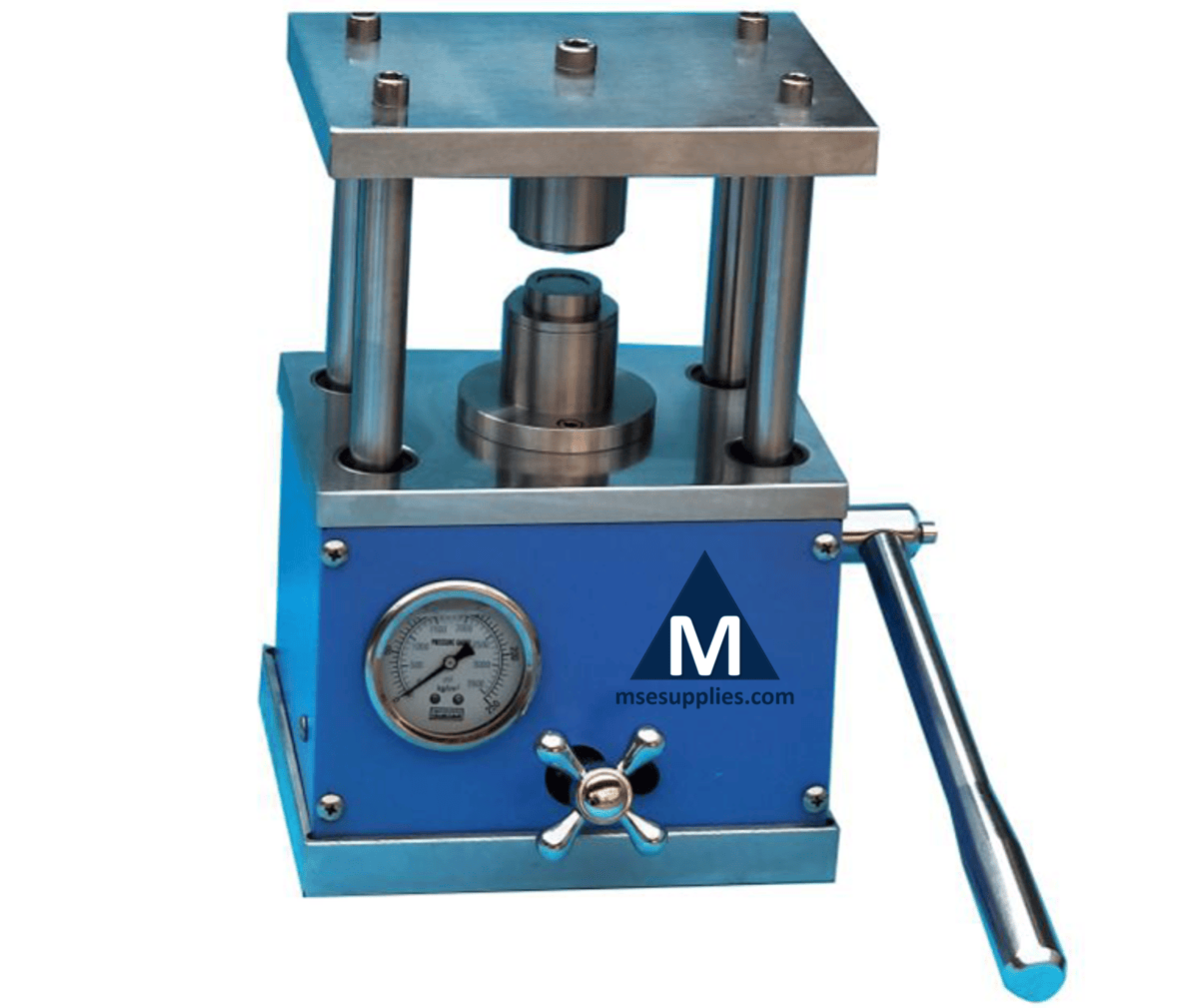

MSE PRO Hydraulic Manual Crimper for All Types of Battery Coin Cells

  • $ 3,22800


SPECIFICATIONS

  • This battery coin cell crimper is a newly designed coin-cell sealing machine with light weight. It is suitable for sealing various types of coin cells such as CR2032, CR2025, and CR2016 by adjusting the sealing line without changing the die. It can also crimp CR2325, CR2450, AG3 and other special size cases with optional die sets.
  • In addition, customers can easily replace the original die for disassembling purpose.
*If used in glove box, please periodically check the seal in case of any oil leak
    Product SKU # BR0202

    Crimping Die

    • One set of crimping die for CR2032, CR2025, and CR2016 coin cells included
    • Optional dies are available for crimping CR1220, CR2325, CR2450, AG3, AG5 (please contact us for a quote)

    Features

    • Heavy duty steel frame
    • PTFE Anti-Corrosion Core prevents coin cells from being
      short-circuited
    • An Aluminum tray is included to place at the bottom of the crimper to prevent oil leakage by accident

    Max Pressure

    • Max. 8 metric Tons hydraulic pump with automatic pressure relief
    • Recommended CR20XX series coin cell sealing pressure: 850~1000 psi
    • Effective piston area: 11.34 cm^2

    Dimension

    • With handle positioned horizontally: 280mm(L) x 280mm(W)  x 333mm(H)
    • Without handle: 228mm(L) x 176.8mm(W) x 333mm(H)
    • Tray: 330mm(L) x 230mm(W)

    Net Weight

    26 kg

    Shipping Weight

    45 kg

    Optional die set

    Warranty

    One year limited warranty with lifetime product support (Rusted and damaged parts due to improper storage condition or maintenance are excluded from product warranty)
