MSE PRO High Purity Graphite Crucible with Lid
SKU: JA1164

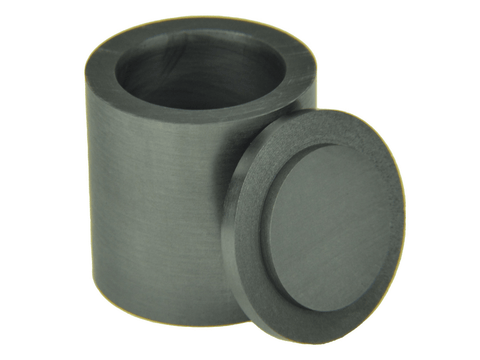

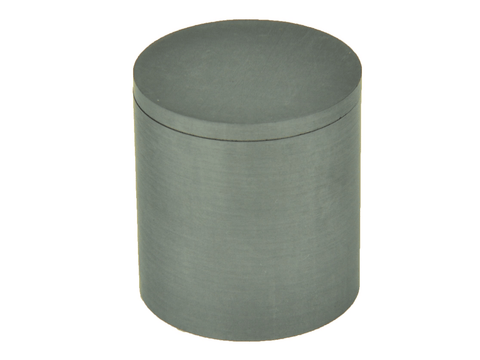

MSE PRO™ High Purity Graphite Crucible with Lid
Product details
Our graphite crucible is made from high purity (>99.9%) graphite raw material. It has unique features such as high temperature resistance (withstand up to 2760 °C), excellent acid and alkali resistance, good thermal shock resistance, excellent thermal/electrical conductivity and high mechanical strength. It is widely used for induction heating and metal melting, such as Ag, Au, Cu and Al metals.
Powder processing is recommended for the best calcination and sintering results. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.
Please note consumable products are non refundable or eligible for return. Quality issues or concerns must be reported within 1 week of delivery.
Standard Products and Specifications
Purity: >99.9%
Maximum temperature: 400 °C (Air), 2760 °C (non-oxidation environment)
Crucibles are considered as consumables which are not covered by warranty.
| SKU# |
Capacity (mL) | OD (mm) | ID (mm) | Out Height (mm) | Inner Height (mm) |
| JA1164 | 5 | 25 | 19 | 25 | 21 |
| JA1165 | 14 | 35 | 25 | 35 | |
| JA1166 | 24 | 40 | 30 | 40 | |
| JA1167 | 56 | 50 | 40 | 50 | |
| JA1168 | 107 | 60 | 50 | 60 | |
| JA1260 | 55 | 50 | 40 | 55 | 45 |
| JA1261 | 120 | 65 | 50 | 80 | 70 |
| JA1262 | 2 | 20 | 14 | 22 | 16 |
| JA1263 | 9 | 30 | 22 | 30 | 25 |
| JA1264 | 20 | 30 | 22 | 60 | 55 |
| JA1277 | 25 | 40 | 30 | 40 | 35 |
| JA1278 | 28 | 30 | 22 | 80 | 75 |
| JA1279 | 35 | 40 | 30 | 60 | 55 |
| JA1280 | 42 | 30 | 22 | 120 | 112 |
| JA1281 | 50 | 50 | 40 | 55 | 45 |
| JA1282 | 70 | 45 | 30 | 80 | 75 |
| JA1283 | 79 | 45 | 35 | 80 | 75 |
| JA1284 | 75 | 50 | 40 | 80 | 75 |
| JA1285 | 95 | 50 | 40 | 100 | 95 |
| JA1286 | 160 | 65 | 50 | 100 | 90 |
| JA1287 | 200 | 80 | 65 | 80 | 70 |
| JA1288 | 261 | 70 | 55 | 120 | 110 |
| JA1289 | 290 | 75 | 60 | 100 | 90 |
| JA1290 | 360 | 85 | 70 | 110 | 100 |
| JA1291 | 560 | 100 | 80 | 120 | 110 |
| JA1292 | 79 | 40 | 30 | 120 | 112 |
Other dimensions can be customized upon request. The dimensions listed above are for reference only. Please contact us if you need tight tolerance.
We can also offer SiC coated graphite crucibles. Please contact us for customization or bulk orders.
Note:
Don't use graphite crucibles for fuel-burning furnaces
