MSE PRO High Purity 99.99% Quartz Evaporating Dishes

MSE PRO High Purity 99.99% Quartz Evaporating Dishes

SKU: JA1391

  • $ 2495
  • Save $ 300



Product details

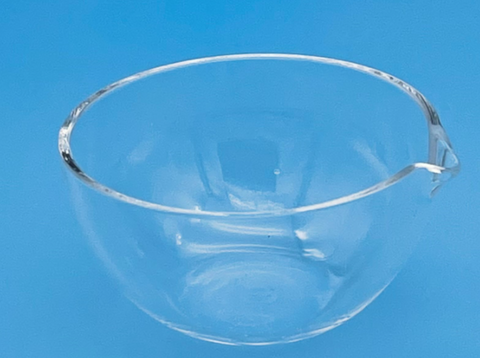

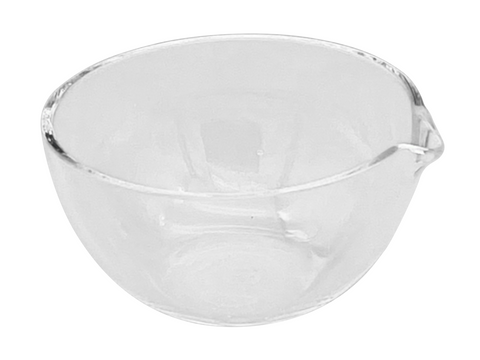

Quartz evaporating dishes (made with >99.99% high purity quartz) have excellent thermal shock resistance and are chemically inert to most elements and compounds, including virtually all acids, regardless of concentration, except hydrofluoric (HF) acid. Quartz can withstand high temperatures up to 1200 °C. Quartz evaporating dishes are widely used for materials melting and chemical reactions in both materials science research and industry.

Powder processing is recommended for the best calcination and sintering results. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.

Standard Products and Specifications of Quartz Evaporating Dishes from MSE Supplies

Purity: >99.99% SiO(4N purity)

Maximum use temperature: 1200 °C.

It is recommended to use the quartz evaporating dish below 1000 °C. The dish may crack or deform under continuous heating above 1000 °C.

SKU#
Capacity (ml) OD (mm) Height (mm)
JA1391 25 50 25
JA1392 50 65 33
JA1393 100 90 45
JA1394 300 120 60
JA1395 450 150 75

Dimensions can be customized upon requested. Please contact us for customization or bulk order. The dimensions listed above are for reference only. Please contact us if you need tight tolerance.

Quartz dishes are considered as consumables which are not covered by warranty.
