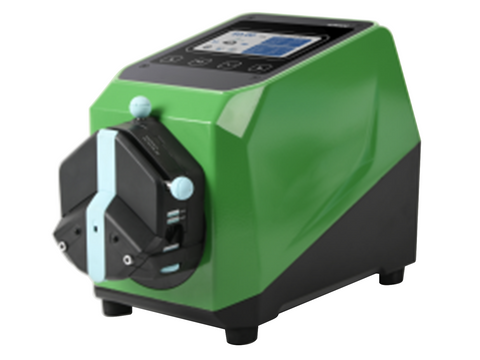

MSE PRO High-protection Intelligent Touchscreen Flow Rate Peristaltic Pump, Max Speed 150rpm
SKU: LS9000
MSE PRO™ High-protection Intelligent Touchscreen Peristaltic Pump, Max Speed 150rpm
MSE PRO™ High-protection Peristaltic Pump with a housing protection rating of IP67. The machine features six types of sealing structures, making it resistant to harsh and humid environments, and ensuring long-term stable operation. It is suitable for a wide range of applications, including pharmaceuticals and biotechnology, the food and beverage industry, water treatment, laboratories and research institutions, and the chemical industry.
Order Peristaltic Pump Tubing Through MSE Supplies HERE!
Features:
- Intelligent Control System: The 4.3-inch touchscreen display allows for easy operation, making parameter settings and calibration simple and convenient. The running status is displayed in real-time through animations.
- Low Shear Force: Peristaltic pumps exert minimal shear force on the fluid, making them ideal for transferring shear-sensitive liquids like cell suspensions or protein solutions.
- Reversible Operation: The pump direction can be easily reversed, simplifying system cleaning and fluid recovery.
- Strong Self-Priming Capability: Peristaltic pumps are self-priming, eliminating the need for additional priming processes.
This Peristaltic Pump comes with EasyPump pump head and 2 meters of 17# silicon tube (ID: 6.4mm and WT: 1.6mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Specifications:
| SKU# | LS9000 |
| Speed Range | 0.1~150 rpm (reversible) |
| Speed Resolution | 0.01 rpm |
| Flow Rate per Channel | 0.0002~775 mL/min |
| Channel per Pump Head | Single Channel |
| Display | 4.3" LCD Touch Screen |
| Pump Head | EasyPump as standard (For other types please contact us.) |
| Standard Tube Accessory |
Length: 2 m Inner Diameter x Wall Thickness: 6.4 x 1.6 mm (17#) |
| Power Supply | AC110V |
| Power | 110W |
| Timing Range | 0.1s-9999hr |
| Quantitative Range | 0.1mL-9999L |
| Protection Rate | IP67 Waterproof |
| External Control Interface | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication. |
| Drive Size | 274×160×221mm |
| Drive Weight | 6.2kg |
Tubing Information:
| Tubing Size | mL/r | Flow Range |
| 0.8 mm x 1.6 mm (13#) | 0.053 | 0.0053-8 mL/min |
| 1.6 mm x 1.6 mm (14#) | 0.27 | 0.027-41 mL/min |
| 2.4 mm x 1.6 mm (19#) | 0.55 | 0.055-83 mL/min |
| 3.1 mm x 1.6 mm (16#) | 0.933 | 0.0933-140 mL/min |
| 4.8 mm x 1.6 mm (25#) | 1.967 | 0.1967-295 mL/min |
| 6.4 mm x 1.6 mm (17#) | 3.333 | 0.3333-500 mL/min |
| 7.9 mm x 1.6 mm (18#) | 4.3 | 0.43-645 mL/min |
