Heatable (up to 200°C) PEEK Split Cell Test Kit (12mm) for Solid State Lithium Battery Research - MSE Supplies LLC

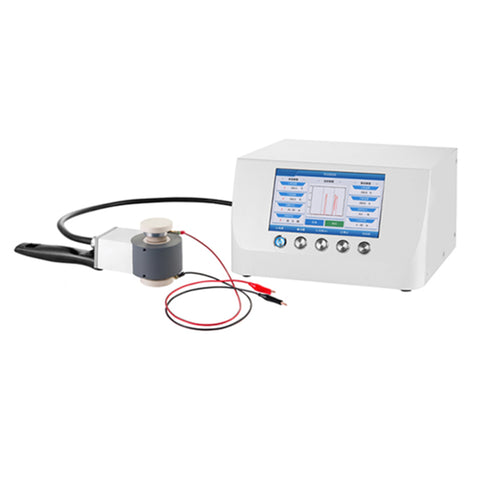

MSE PRO Heatable (up to 200°C) PEEK Split Cell Test Kit (12mm) for Solid State Lithium Battery Research

SKU: PR0194

  • $ 1,99595
  • Save $ 24000


MSE PRO™ Heatable (up to 200°C) PEEK Split Cell Test Kit (12mm) for Solid State Lithium Battery Research

Product SKU#: PR0194

This split cell test kit is designed by Ampcera Inc. for the development and testing of solid-state electrolyte materials. It can be used under pressure for solid-state battery research and product quality control. It can be heated up to 200°C which is designated for battery research when temperature control is required.

The lithium ionic conductivity of a solid state electrolyte material can be measured by pressing the solid electrolyte material between the two stainless steel working electrodes.

When doing a liner sweep voltammetry (LSV) test, the electrolyte membrane is sandwiched between the stainless steel working electrode and the lithium metal foil, which is used as a counter and reference electrode.

The Pressure Jig and Load Sensor Kit can be ordered together with this PEEK Split Cell Test Kit along with additional PEEK Sleeves and Screws.

This test kit is also used for Lithium / Lithium symmetric cell testing

Diameter: 12 mm

Temperature range: 50~200°C

Sleeve material: Polyether ether ketone (PEEK)

Pushing rod material (working electrode): Tool steel with HRC60~62

Chamber depth: 45mm

Outer diameter: 78mm

Height: 138mm

Voltage: 110V

Product customization is available upon request
