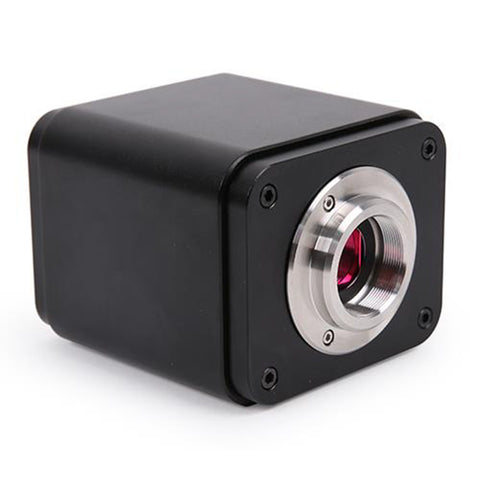

MSE PRO HDMI/NETWORK/USB Multi Output C-mount CMOS Camera (4K, 8.0MP)
SKU: OM0066073
MSE PRO™ HDMI/NETWORK/USB Multi Output C-mount CMOS Camera (4K, 8.0MP)
The OM0066073 series cameras are intended for acquisition of digital images and videos from stereo microscopes, biological microscopes and other optical microscopes, or online interactive teaching. The cameras are equipped with HDMI, USB2.0, WIFI and network output.
Features:
The basic characteristics are listed as below:
- Sony Exmor/STARVIS back-illuminated CMOS sensor
- 4K HDMI/ WiFi/ USB multiple video outputs
- 4K/1080P auto switching according to monitor resolution
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- Embedded XCamView for the control of the camera and image processing
- Excellent ISP with local tone mapping and 3D denoising
- ImageView software for PC
- iOS/Android applications for smart phones or tablets
Specifications:
| OM0066073 | Sony IMX334(C) 1/1.8"(7.68x4.32) | 2.0x2.0 | 505mv with 1/30s 0.1mv with 1/30s |
30@3840*2160(HDMI) 30@3840*2160(NETWORK) 30@3840*2160(USB) |
1x1 | 0.04~1000 |
| USB Mouse | Connect USB mouse for easy operation with embedded XCamView software | |||||
| USB2.0 | Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time(WIFI) |
|||||
| USB Video | Connect PC or other host device to realize video image transmission | |||||
| HDMI | Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors | |||||
| LAN | LAN port to connect router and switch to transfer video | |||||
| SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images saving | |||||
| ON/OFF | Power switch | |||||
| LED | LED status indicator | |||||
| DC12V | Power adapter connection (12V/1A) | |||||
| HDMI Interface | Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P | |||||
| LAN Interface | support real time resolution switching(4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration | |||||
| WLAN Interface | Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode | |||||
| USB Video Interface | Connecting USB Video port of PC for video transfer MJPEG format video |
|||||
| Video Saving | Video format: 8MP(3840*2160) H264/H265 encoded MP4 file Video saving frame rate: 30fps |
|||||
| Image Capture | 8MP (3840*2160) JPEG/TIFF image in SD card or USB flash drive | |||||
| Measurement Saving | Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|||||
| ISP | Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function | |||||
| Image Operation | Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare, Embedded Files Browser, Video Playback, Measurement Function | |||||
| Embedded RTC(Optional) | To support accurate time on board | |||||
| Restore Factory Settings | Restore camera parameters to its factory status | |||||
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian | |||||
| White Balance | Auto White Balance | |||||
| Color Technique | Ultra-Fine Color Engine | |||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | |||||
| Recording System | Still Picture or Movie | |||||
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10/11 (32 & 64 bit) OSx(Mac OS X) Linux |
|||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet Port: RJ45 Ethernet Port Display:19” or Larger CD-ROM |
|||||
| Operating Temperature (in Centidegree) | -10°~ 50° | |||||
| Storage Temperature (in Centidegree) | -20°~ 60° | |||||
| Operating Humidity | 30~80%RH | |||||
| Storage Humidity | 10~60%RH | |||||
| Power Supply | DC 12V/1A Adapter | |||||
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of biological microscopes accessories. Please contact us for more information.
