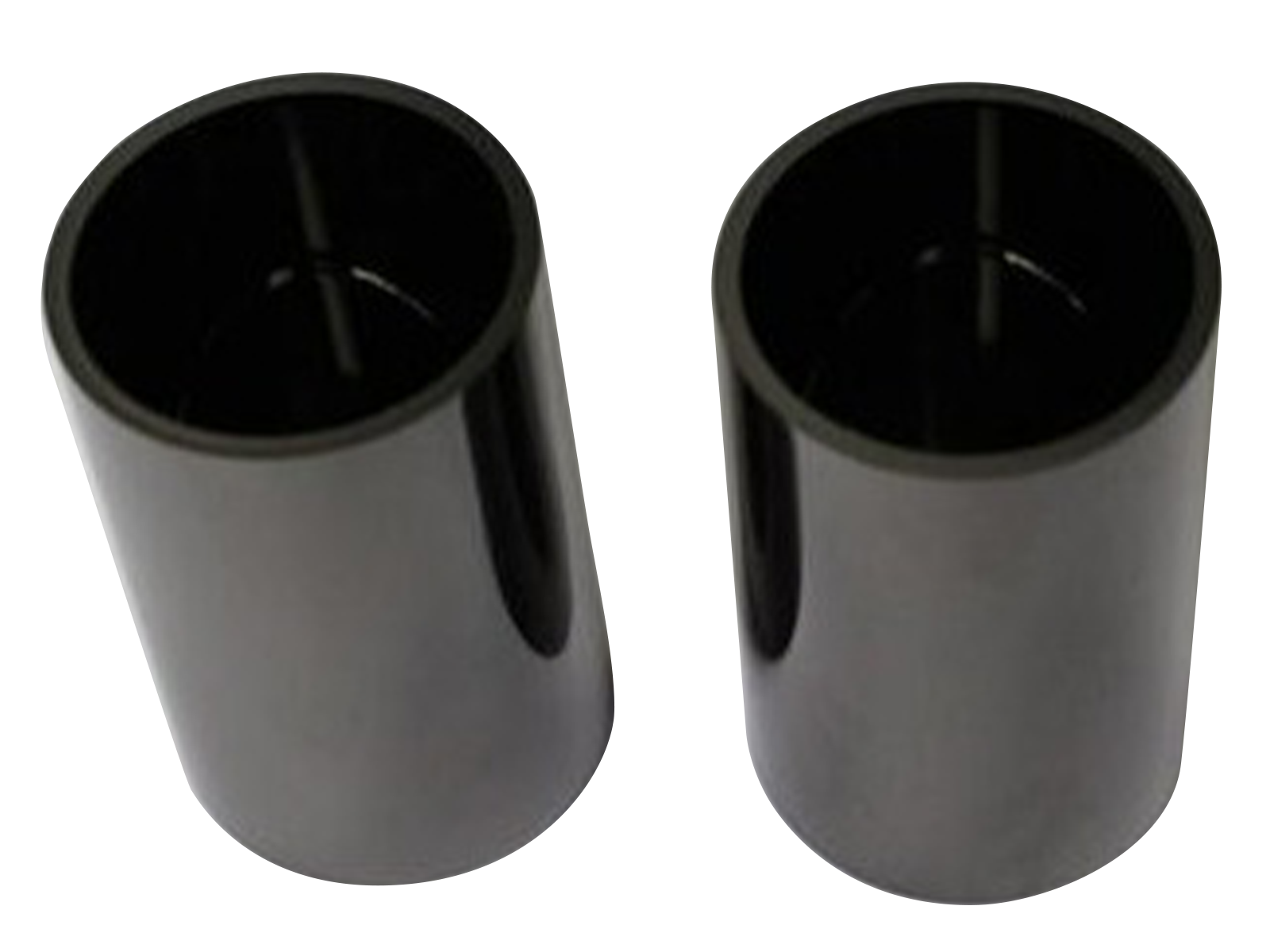

MSE PRO Glassy (Vitreous) Carbon Cylindrical Crucibles
MSE PRO Glassy (Vitreous) Carbon Cylindrical Crucibles
Glassy carbon, also called vitreous carbon, is an advanced material of pure carbon combining glassy and ceramic properties with these of graphite. Unlike graphite, glassy carbon has a fullerene-related microstructure. This leads to a great variety of unique material properties.
MSE Supplies offers different shapes and capacities of Glassy Carbon crucibles as well as other Glassy Carbon products such as substrates, tubes, rods. Please contact us for more information.
Specifications:
Maximum temperature: 3000 °C (vacuum or inert gas)
Density: 1.42 g/cm3
Open porosity: 0 %
Permeability coefficient: 10-9 cm2/s
Vickers hardness: 230 HV
Specific electrical resistance at 30 °C: 45 Ωµm
Thermal conductivity at 30 °C: 6.3 W/(Km)
Median linear coefficient of expansion (20-200 °C): 2.6x10-6 1/K
| SKU# |
Capacity (mL) | OD (mm) | Outer Height (mm) | Wall Thickness (mm) |
| JA1501 | 9 |
25 | 37 | 3 |
| JA1502 | 20 |
30 | 45 | 3 |
| JA1503 | 27 |
36 | 43 | 3 |
| JA1504 | 46 |
30 | 107 | 3 |
| JA1505 | 50 | 37 | 80 | 4 |
| JA1506 | 50 | 41 | 54 | 3 |
| JA1507 | 60 | 37 | 80 | 2.5 |
| JA1508 | 80 | 41.5 | 90 | 3.7 |
Lids sell separately.
Dimensions can be customized upon requested. Please contact us for customization. The dimensions listed above are for reference only. Please contact us if you need tight tolerance.
Crucibles are considered as consumables which are not covered by warranty.
