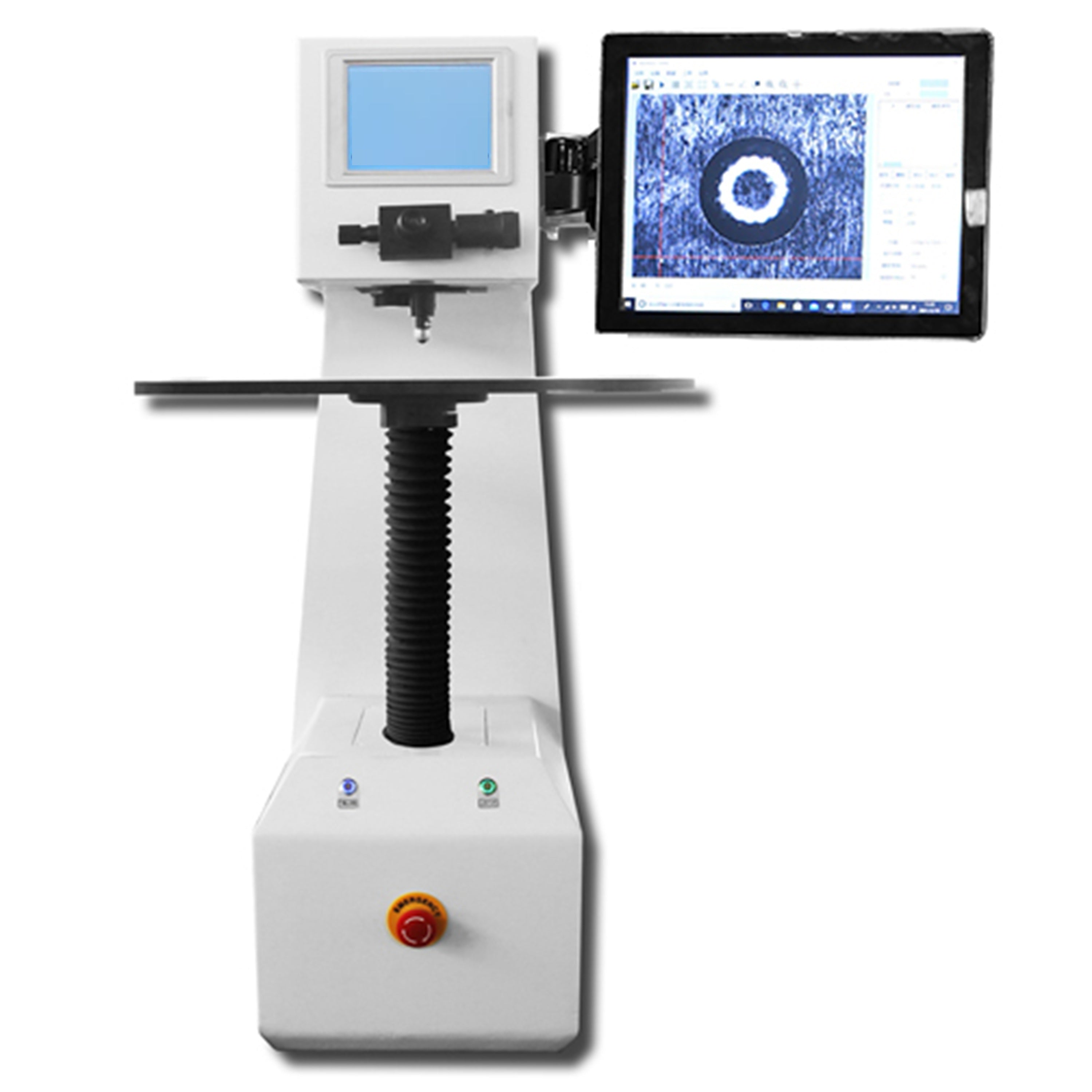

MSE PRO Fully Automatic Brinell Hardness Testing System with Motorized Stage and Autofocus
Regular price
$ 17,333.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Fully Automatic Brinell Hardness Testing System with Motorized Stage and Autofocus
Introduction
The MSE PRO Fully Automatic Brinell Hardness Testing System is an advanced solution for high-precision hardness measurement of metals and alloys. Designed with a motorized stage, automatic load control, and autofocus imaging system, it enables fully automated testing from indentation to measurement and data output. With a wide load range and multiple Brinell scales, this system ensures reliable, repeatable results for industrial quality control, research laboratories, and materials testing applications.
Key Features
- Fully automatic testing process including load application, indentation, autofocus, and measurement
- Wide load range from 62.5 kgf to 3000 kgf with high-precision closed-loop control
- Motorized Z-axis and automatic turret for seamless switching between indentation and measurement positions
- Dual optical system with integrated camera for both eyepiece and computer-based measurement
- High-resolution imaging with 5 MP industrial camera and 0.1 µm measurement resolution
- Direct data export to USB in Excel format for easy analysis and reporting
Specification
| Hardness Scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test Force Range | 62.5–3000 kgf (612.9–29420 N) |
| Standards | BS EN 6506, ISO 6506, ASTM E10, GB/T 231 |
| Force Accuracy | ≤1% (62.5–250 kgf), ≤0.5% (500–3000 kgf) |
| Measurement Resolution | 0.1 µm |
| Hardness Resolution | 0.1 HBW |
| Dwell Time | 0–99 s |
| Measurement Range | 15.9–650 HBW |
| Measurement Accuracy | ±0.5% |
| Imaging System | 5 MP industrial digital camera |
| Measurement Modes | Automatic and manual measurement |
| Calibration | Standard hardness blocks / length scale |
| Data Output | LCD display, USB export (Excel format) |
| Data Storage | USB flash drive |
| Max Sample Height | 350 mm |
| Throat Depth | 250 mm |
| Stage / Motion | Motorized Z-axis, automatic positioning |
| Turret | Automatic switching between indenter and objective |
| Control Interface | Touchscreen interface with multilingual support |
| Power Supply | 110V, 60Hz |
| Dimensions | 700 × 340 × 970 mm |
| Weight | 160 kg |
