MSE PRO Electrolytic Polishing Corrosion Tester
SKU: MA1308

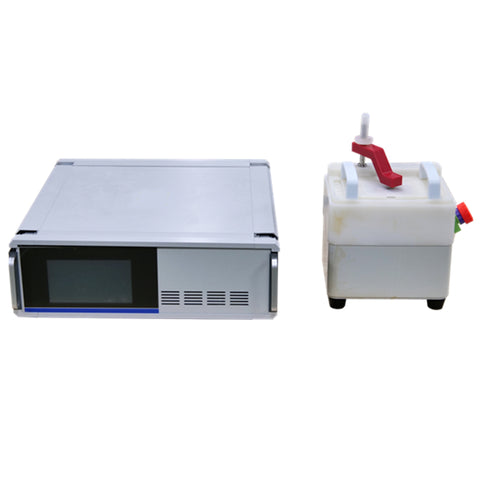

MSE PRO™ Electrolytic Polishing Corrosion Tester
MSE Supplies MA1308 electrolytic etching polisher is an instrument that combines electrolytic polishing and etching function. It is suitable for laboratories in factories, colleges, universities and scientific institutions. It employs electro chemical principle to make preparation of metallographic samples. The device can be used for polishing of the metallographic sample, but also for corrosion of the metallographic sample. Faster, good repeatability, no machining deformation layer, etc., it’s an ideal equipment for metallographic specimen of nonferrous metal and steel, especially stainless steel.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- The current range is large, the voltage range is moderate, could finish the polishing and corrosion of the majority of material.
- Achieve a mode of a constant current and voltage.
- Could control the area of polishing/corrosion, ensure the stability of the current. It could control the working temperature of the polishing and etching solution; it could control polishing/etching time.
- Mixing device to ensure that the polishing/corrosive medium is uniform and the sample surface environment is identical.
- The operating voltage and the current can be input into the computer for further data analysis and research.
Technical Specifications:
| Output voltage | AC110V, 60Hz |
| Output current | 0-60V/0-20A, continuously adjustable, digital display |
| Time display | Working time can be customized |
| Electrolyte capacity | 300-1000ml |
| With cooling device, can be connected with water cooling | |
| Electric box size | 145*387*340mm; Etching stage:310*180*265mm |
| Instrument weight | 10kg |
For accessories/consumables and other available models, please contact us so we can help you choose appropriate products for your needs.
