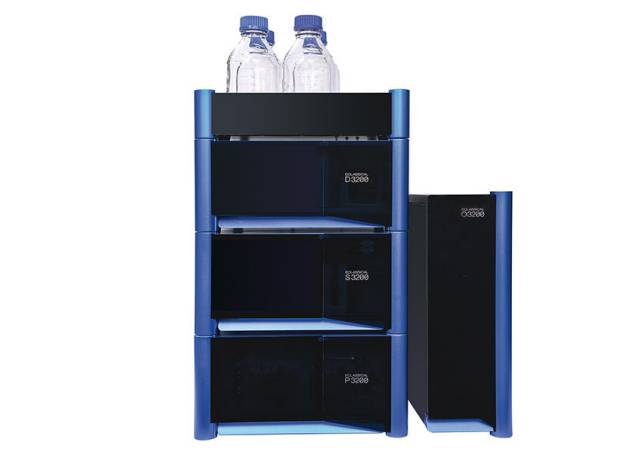

MSE PRO Eclassical 3200 High Performance Liquid Chromatograph System (Type II)
SKU: BB2506
MSE PRO™ Eclassical 3200 High Performance Liquid Chromatograph System (Type II)
The MSE PRO EClassical 3200 is a high-performance liquid chromatography (HPLC) system designed to meet evolving regulatory standards while delivering precise and reliable analytical results. Engineered for efficiency, automation, and compatibility, it enhances laboratory workflows by ensuring the continuity and integrity of the analysis process. With advanced technology, robust construction, and seamless integration, the EClassical 3200 is an ideal choice for laboratories seeking accuracy, stability, and ease of use.
- Unmatched Reliability – Built on a legacy of proven performance, ensuring highly accurate and consistent chromatography results.
- Regulatory Compliance & Innovation – Meets updated national and international standards, making it a leader in HPLC technology.
- Superior Automation & Stability – Enhances process continuity and integrity, reducing human intervention and error.
- High Efficiency & Compatibility – Optimized for seamless integration with various laboratory setups, ensuring maximum convenience.
- User-Friendly Design – Modernized appearance with intuitive controls, making operation effortless for professionals at all levels.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Liquid Chromatograph Systems. Please contact us for more information.
Specifications:
| SKU# | BB2506 |
| Pump | P3220*1 |
| Detector | D3210*1 |
| Solvent Switching Module | Solvent switching module (built in high pressure pump)*1 |
| Solvent Bottle Tray | T3200*1 |
| Sampler Injector | Rheodyne 77251*1 |
| Column | Supersil ODS2 5μm ID4.6*250mm*1 |
| Workstation | Kromstation*1 |
| Valve Mounting Frame | VB3200*1 |
| Multifunctional Mounting Frame | M83200*1 |
| Column Mounting Frame | CB3200*1 |
| System Kit | EClassical 3200*1 |
| Power Supply | AC220V, 50Hz |
| Optional Accessory | Auto-sampler, Column, 03220 Column Oven, D3270 Evaporative Light Scattering Detector, RI-201H Differential Refractive Index Detector, D3250 Fluorescence Detector, Solvent bottle 1000mI*4 |
O3200 Column Oven:
| Temperature range | Ambient + 5°C~85 °C |
| Accuracy | ±0.5°C |
| Precision | ≤0.1 °C |
| Power | AC220 V ± 10%, 50 Hz, 130 W |
| Dimensions | 435*137*450 mm (L*W*H) |
| Weight | 11 kg |
P3230 High Pressure Constant Flow Pump:
| Flow Rate | 0.001-10.000 mL/min (Step: 0.001 mL/min) |
| Accuracy | ≤±0.2% |
| Precision | ≤0.06% RSD |
| Pressure Rang | 0-70 MPa |
| Communication Methods | UDP Network Communication |
| Power | AC 220V; 300W |
| Dimension | 450*350*185 mm |
| Weight | 18 kg |
P3230 Low-Pressure Quaternary Pump:
| Flow Range | 0.001~10.000 mL/min (step 0.001 mL/min) |
| Accuracy | ≤+0.2% (1.00ml/min, H₂O, R.T, 8.5MPa) |
| Stability | <0.06% (1.00m/min, H₂O, R.T, 8.5MPa) |
| Maximum Pressure | 63Mpa |
| Pulsation | <0.1MPa(1.00m/min, H₂O, R.T, 8.5MPa) |
| Communication Methods | UDP Network Communication |
| Power | AC 220V/150 W |
| Dirnensions | 440*380*180 mm (L*W*H) |
| Weight | 18 kg |
D3230 UV-Vis Detector:
| Linearity | ≥2.5 AU |
| Wavelength Range | 190-800 nm |
| Wavelength Repeatability | ±0.1nm |
| Wavelength Accuracy | ±1.0nm |
| Noise | ≤1.5*10-5 AU (Single wavelength) ≤5.0*10-5 AU (Double wavelength) |
| Drift | ≤2.0*10-5 AU/h |
| Light Source | Deuterium Lamp, Tungsten Lamp |
| Optical Path | Dual beam optical path |
| Response Time | 0.1-5s |
| Sampling Frequency | 5Hz/10HZ/20Hz/50Hz; Double wavelength 1Hz |
| Cell | Optical path 10 mm; Proof pressure 1000psi |
| Communication Methods | UDP Network Communication |
| Power | AC 220 V, 50/60 Hz/100 W |
| Dimensions | 440*378*160 mm (L*W*H*) |
| Weight | 10 kg |
