MSE PRO Eclassical 3100 High Performance Liquid Chromatograph System (Type I)
SKU: BB2462
MSE PRO™ Eclassical 3100 High Performance Liquid Chromatograph System (Type I)
The MSE PRO Eclassical 3100 High Performance Liquid Chromatograph System is a high-performance analytical system designed for versatility, reliability, and efficiency in laboratory applications. Built with advanced HPLC technology, it offers a comprehensive range of gradient systems and multi-mode detection capabilities, making it ideal for precise analysis. Equipped with cutting-edge USB and optoelectronic isolation technology, it ensures stable communication and seamless data transfer. The intelligent software simplifies operation, data management, and analysis, while real-time pressure monitoring and safety alerts enhance user security and efficiency.
- Versatile & Flexible Operation: Supports isocratic, binary, and quaternary gradient systems for a wide range of analytical applications.
- Multi-Mode Detection for Precise Analysis: Compatible with DAD, UV/Vis, FL, RI, and ELSD detection, ensuring high-accuracy results.
- Stable & Reliable Communication: Advanced USB chip and optoelectronic isolation technology guarantee secure and uninterrupted data transmission.
- User-Friendly & Powerful Software: Simplifies control, data capture, management, and analysis, making laboratory operations efficient and hassle-free.
- Enhanced Safety & Real-Time Monitoring: Live pressure display with minimum/maximum pressure warnings ensures safe and secure operation.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Liquid Chromatograph Systems. Please contact us for more information.
Specifications:
| SKU# | BB2462 |
| Pump | P3100*1 |
| Detector | UV3100*1 |
| Gradient Mixer | / |
| Solvent Bottle Tray | TP3100*1 |
| Sampler Injector | Rheodyne 7725i*1 |
| Column | Supersil ODS2 5 μm ID4.6*200mm*1 |
| Workstation | Kromstation*1 |
| AD Adapter | / |
| Valve Mounting Frame | ZJ-1*1 |
| Degasser | / |
| System Kit | EClassical 3100*1 |
| Power Supply | AC220V |
| Optional Accessory | 500m1 Solvent bottle*2, Column, Column Oven, S3100 Auto-sampler, Degasser |
P3100 High Pressure Constant Flow Pump:
| Flow Rate | 0.001-10.000 mL/min (Step: 0.001 mL/min) |
| Accuracy | ≤±0.2% |
| Precision | ≤0.06% RSD |
| Pressure Rang | 0-45 MPa |
| Power | AC 220V; 80W |
| Dimension | 420*300*175 mm |
| Weight | 12 kg |
P3100 Low-Pressure Quaternary Constant Flow Pump:
| Flow Range | 0.001~10.000 mL/min (step 0.001 mL/min) |
| Gradient Accuracy | ≤±1% |
| Retention Time Repeatability | ≤0.1% |
| Maximum Working Pressure | 63Mpa |
| Communication Methods | UDP Network Communication |
| Mixed Volume | 750μL |
| Power | AC 220V/100 W |
| Dimensions | 400*300*180 mm (L*W*H) |
| Weight | 15 kg |
UV3100 UV-Vis Detector:
| Linearity | 2.0 AU |
| Wavelength Range | 190~700 nm |
| Noise | ≤±0.5*10-5 AU |
| Drift | ≤1.0*10-4 AU/h |
| Cell | Analytical: Optical path 10 mm, 11μL |
| Semi-Prep Scale: Optical path 2 mm, 6μL | |
| Power | AC220V ± 10%, 50 Hz, 100 W |
| Dimensions | 420*300*175 mm (L* W* H*) |
| Weight | 16 kg |
DAD3100 Diode Array Detector:
| Linear | ≥2.0 AU |
| Wavelength Range | 190~800 nm |
| Noise | ≤±1.0*10-5 AU |
| Drift | ≤2.0*10-4 AU/h |
| Power | AC220V, 50 Hz, 180 W |
| Dimensions | 500*300*175 mm (L*W*H) |
| Weight | 18 kg |

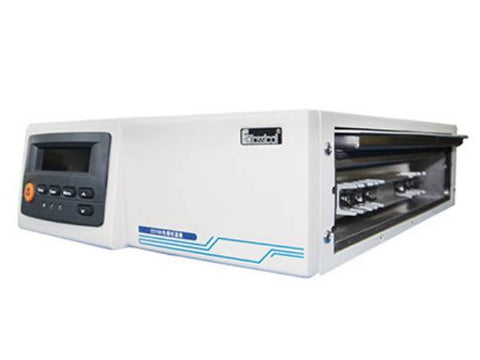

O3100 Column Oven:
| Temperature range | Ambient + 5°C~85 °C |
| Accuracy | ±0.3°C |
| Precision | ≤0.1 °C |
| Power | AC220 V ± 10%, 50 Hz, 130 W |
| Dimensions | 420*300*120 mm (L*W*H) |
| Weight | 7 kg |
