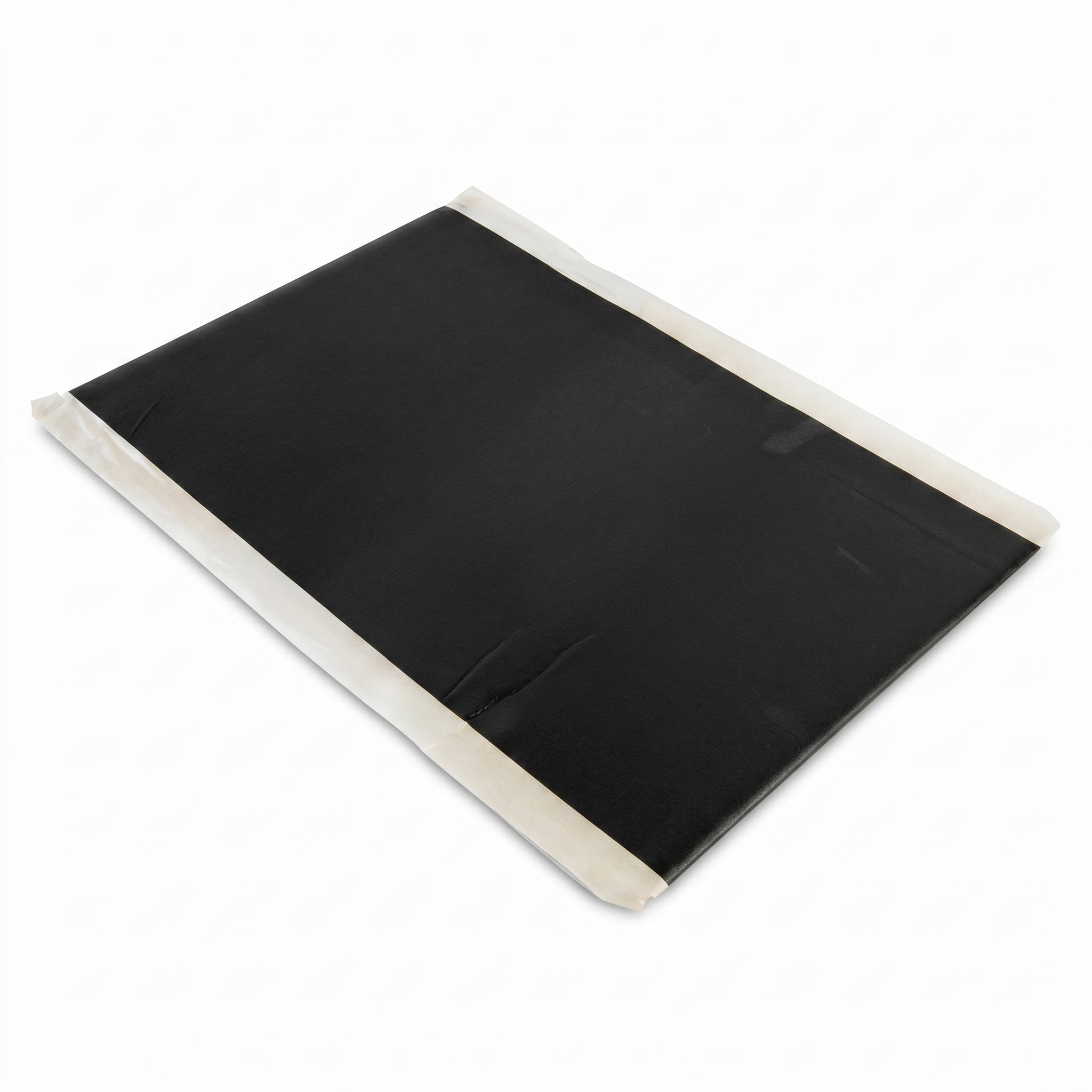

Double Sides Lithium Nickel Manganese Cobalt Oxide (NMC532) Coated Aluminum Foil For Battery Research

Product Details:

Lithium Nickel Manganese Cobalt Oxide, LiNixMnyCozO(NMC) (x+y+z=1) has high capacity and power density, makes them ideal for the new generation of electric vehicles. Compared with LiCoO2, the introduction of Ni and Mn improves the electrochemical performance and reduces the cost. It has the lowest self-heating rate out of the different types of lithium ion batterie cathode. It is commonly used for electric vehicles, energy storage and personal electronics. This LiNi0.5Mn0.3Co0.2O2 coated aluminum foil can be used as cathode for coin cell and pouch cell.

This LiNi0.5Mn0.3Co0.2O2 coated aluminum foil can be customized upon request, such as coating thickness/width, and aluminum foil thickness/width. Please contact us to provide your requirements.

Specifications

Product SKU# BR0195
Pack Size
5 sheets/pack
Substrate material Aluminum (≥99.5% purity)
Substrate thickness 14 µm
Substrate size 260x230 mm
Coating material NMC532, LiNi0.5Mn0.3Co0.2O2
Coating area 260x200 mm
Coating side Two sides
Coating density 21.6 mg/cm2
Capacity 153 mAh/g
Total thickness 103 um

Please vacuum dry the sheets before use to ensure the best performance.
