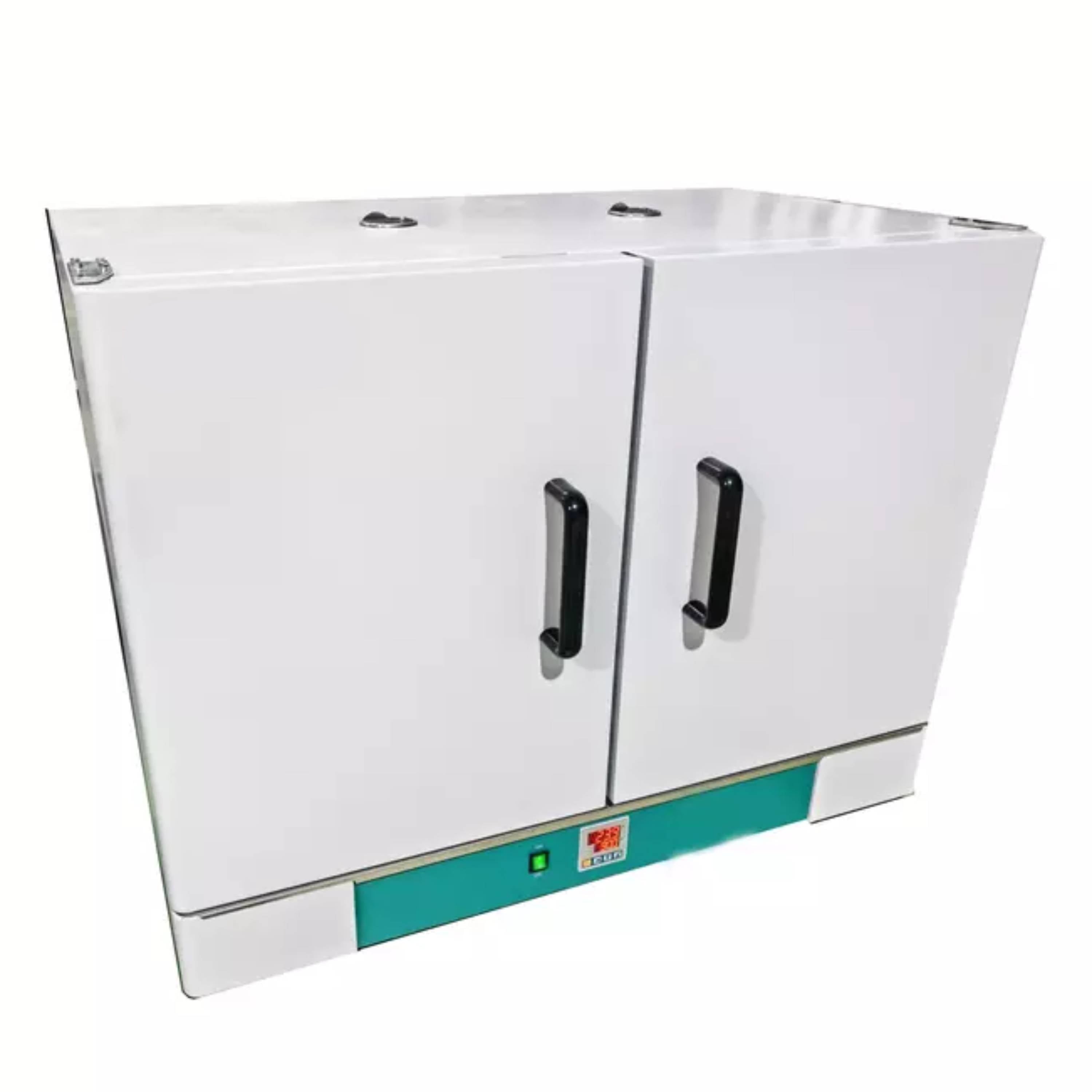

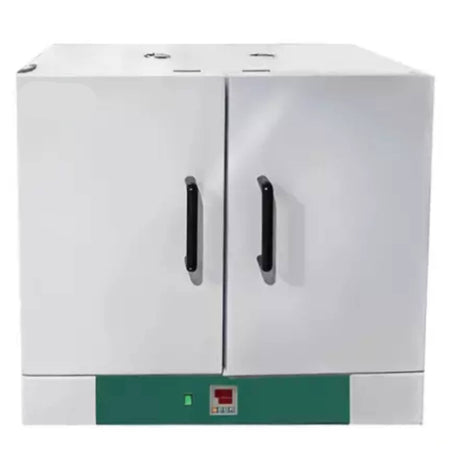

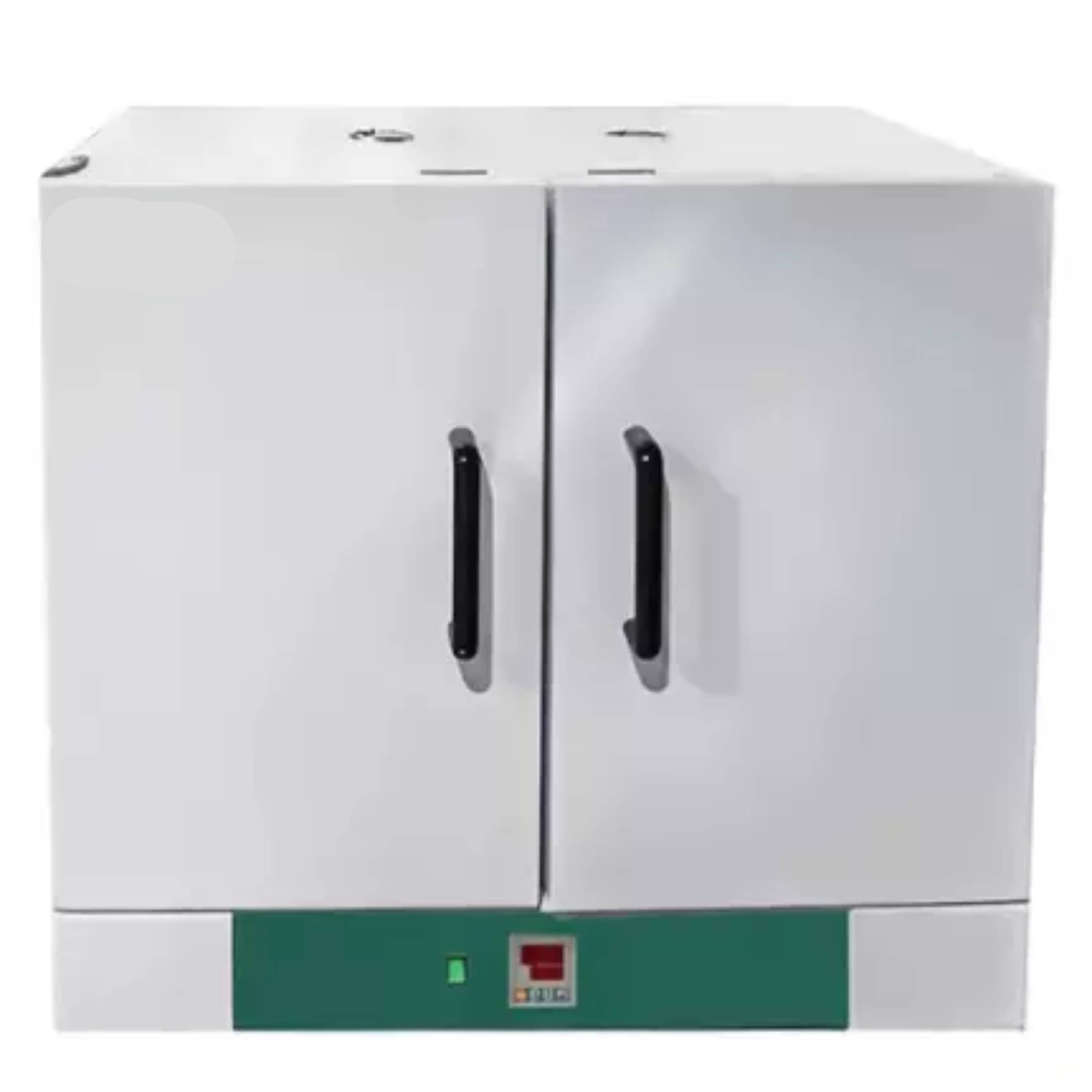

MSE PRO™ Double Door Drying Oven Forced air type – 950×450×550mm, 220V, 250L
Features:
- PID or program temperature control controller, with over-temperature alarm system.
- Double doors ensure that use is convenient.
- Forced air system, with Low-noise fan, centrifugal cycle method, high temperature uniformity.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Climate Chamber with Illuminations. Please contact us for more information.
Specifications:
|
Model |
MA0067453 |
|
|
Cycle Mode |
Forced Convection |
|
|
Function |
Temp. Range |
RT+10-250℃ |
|
Temp. Resolution Ratio |
0.1℃ |
|
|
Temp. Motion |
±0.5℃ |
|
|
Temp. Uniformity |
±2.5% |
|
|
Structure |
Inner Chamber |
Mirror Stainless Steel |
|
Outer Shell |
Cold rolling steel electrostatic spraying exterior |
|
|
Insulation Layer |
Composite silicate insulation board |
|
|
Heater |
Nickel-chromium alloy heating wire |
|
|
Power Rating |
2.4kW |
|
|
Exhaust Hole |
φ32mm X 2 top (with function of test hole ) |
|
|
Controller |
Temp. Control Mode |
PID Intelligent |
|
Temp. Setting Mode |
Touch button setting |
|
|
Temp. Display Mode |
Measuring temperature: display on upper LCD screen, setting temperature: display on the lower row |
|
|
Timer |
0-9999min(with timing wait function) |
|
|
Operation Function |
Fixed temperature operation, timing function, auto stop |
|
|
Additional Function |
Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
|
|
Sensor |
PT100 |
|
|
Safety Device |
Over temperature sound-light alarm |
|
|
Specification |
Inner Chamber Size(W*L*Hmm) |
950*450*550 |
|
Exterior Size(W*L*Hmm) |
1087*727*807 |
|
|
Packing Size(W*L*Hmm) |
1137*777*942 |
|
|
Volume |
250L |
|
|
Max Shelf Number |
6 Layers |
|
|
Shelf Space |
- |
|
|
Load Per Rack |
15kg |
|
|
Supply(50/60HZ)Current Rating |
AC220V/11.0A |
|
|
NW/GW(kg) |
94/120 |
|
|
Shelf Number |
2 |
|
|
Optional Accessories |
Shelf |
|
