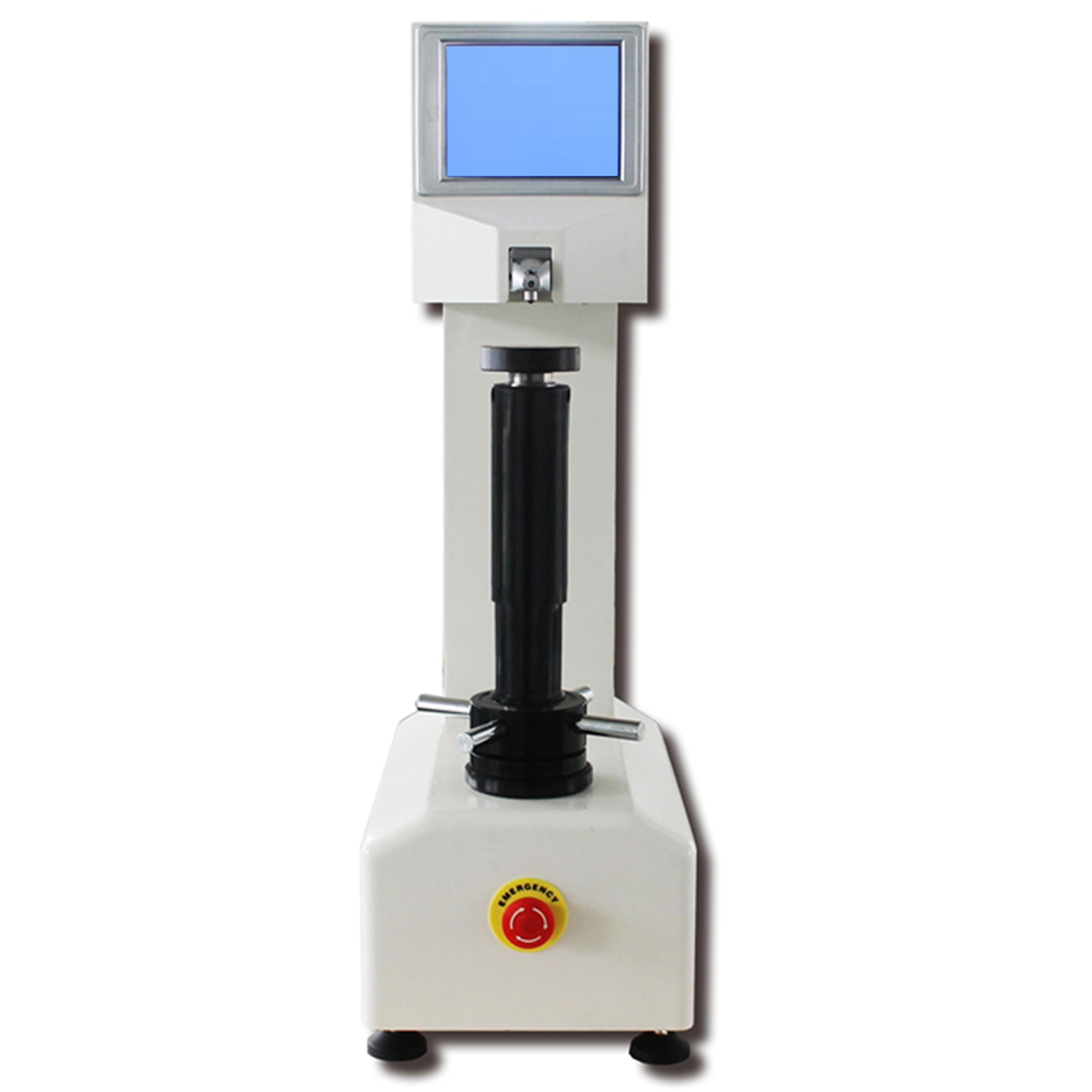

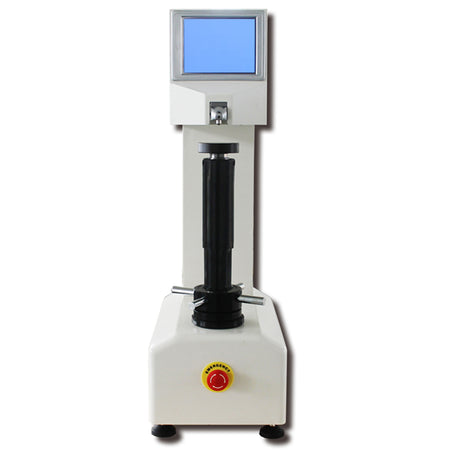

MSE PRO Digital Rockwell Hardness Tester
1. Introduction
The MSE PRO Digital Rockwell Hardness Tester is a precision hardness testing instrument designed for reliable Rockwell hardness measurement across a wide range of metallic materials and components. Its special extended indenter design allows testing of ring-shaped, tubular, and other hard-to-reach parts that conventional hardness testers may not accommodate, with a minimum internal diameter of 25 mm. The system features electronic automatic loading, a high-precision sensor, and a closed-loop control system to improve testing accuracy and repeatability. A touchscreen interface, automatic test force correction, and USB data export in Excel format make it a practical solution for laboratories, quality control, and industrial inspection applications.
2. Key Features
- Special protruding indenter design for testing rings, tubes, and similar parts with a minimum internal diameter of 25 mm
- Electronic automatic loading with high-precision sensor and closed-loop control system for improved accuracy
- Touchscreen interface with direct Rockwell scale selection and automatic test force adjustment
- Supports 15 Rockwell hardness scales for broad material testing capability
- Automatic correction for high, medium, and low hardness sections using standard hardness blocks
- USB data storage in Excel format for convenient editing, reporting, and traceability
3. Specifications
| Specification | Details |
|---|---|
| Product Title | MSE PRO Digital Rockwell Hardness Tester |
| Initial Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Rockwell Test Range | HRA: 20-88; HRB: 20-100; HRC: 20-70; HRD: 40-77; HRE: 70-100; HRF: 60-100; HRG: 30-94; HRH: 80-100; HRK: 40-100; HRL: 100-120; HRM: 85-115; HRR: 114-125 |
| Dwell Time | 0-99 s |
| Hardness Resolution | 0.1 HR |
| Test Force Error | <1.0% |
| Data Output | LCD display |
| Data Storage | Measured values saved to USB drive in Excel format |
| Conversion Scales | Superficial Rockwell, Brinell, Vickers |
| Standards | BS EN 6508, ISO 6508, ASTM E18 |
| Max. Workpiece Height | 300 mm |
| Distance from Indenter to Machine Wall | 250 mm |
| Dimensions | 720 × 260 × 840 mm |
| Weight | 80 kg |
| Power Supply | 110V, 60Hz |
MSE supplies offers various metallographic equipment, please contact us for more information.
