MSE PRO DG Series Pump Heads
SKU: LS0362

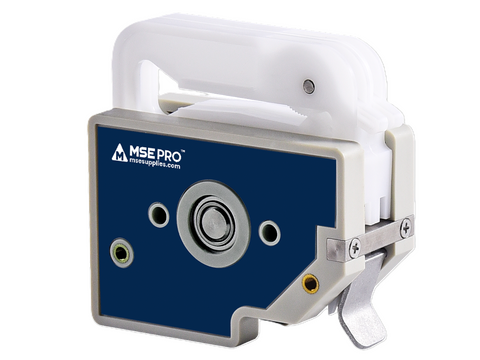

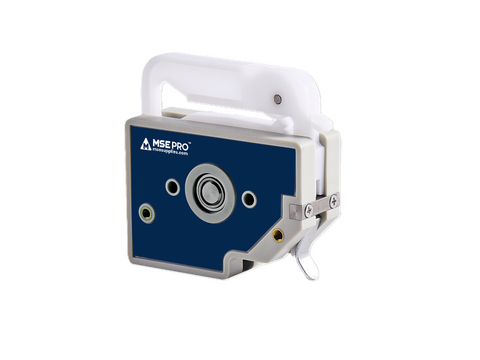

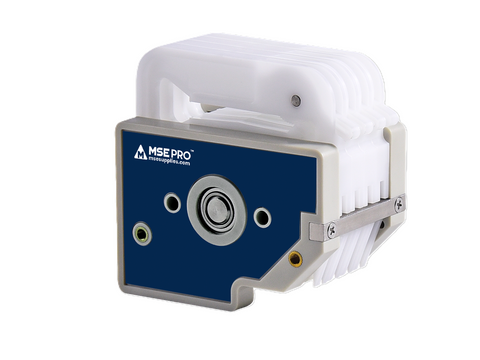

MSE PRO™ DG Series Pump Heads
MSE PRO DG series pump head has a compact structure, versatile, and provide multi-channel options. They are suitable for small flow transmission environments. They are installed with clip-type pump tubes. The clearance of the ratchet pump head can be fine-tuned through the ratchet to adapt to different wall thicknesses. Tubes, springs are adaptive.
Order Peristaltic Pump Tubing Through MSE Supplies HERE!
For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.
Brand: MSE PRO™
Specifications
| Model | Channel | Max speed (rpm) | Roller Material | Shaft end | Card Material - Color | |
| DG | 1/2/4/6/8/12 | 100 | Stainless steel |
Round shaft /flat shaft |
POM-White | |
Maximum Flow Rates for Tubing Compatible with the DG Pump Head
| Rollers |
Tube ID*wall thickness(mm) |
Max flow (ml/min) |
||
| 6 | 0.5*0.8 | 2 | ||
| 1*1 | 6 | |||
| 2*1 | 19 | |||
| 2.4*0.8 | 24 | |||
| 3*1 | 36 | |||
| 10 | 0.5*0.8 | 1.5 | ||
| 1*1 | 4 | |||
| 2*1 | 13 | |||
| 2.4*0.8 | 17 | |||
| 3*1 | 27 | |||
