MSE PRO™ Cutting Mill

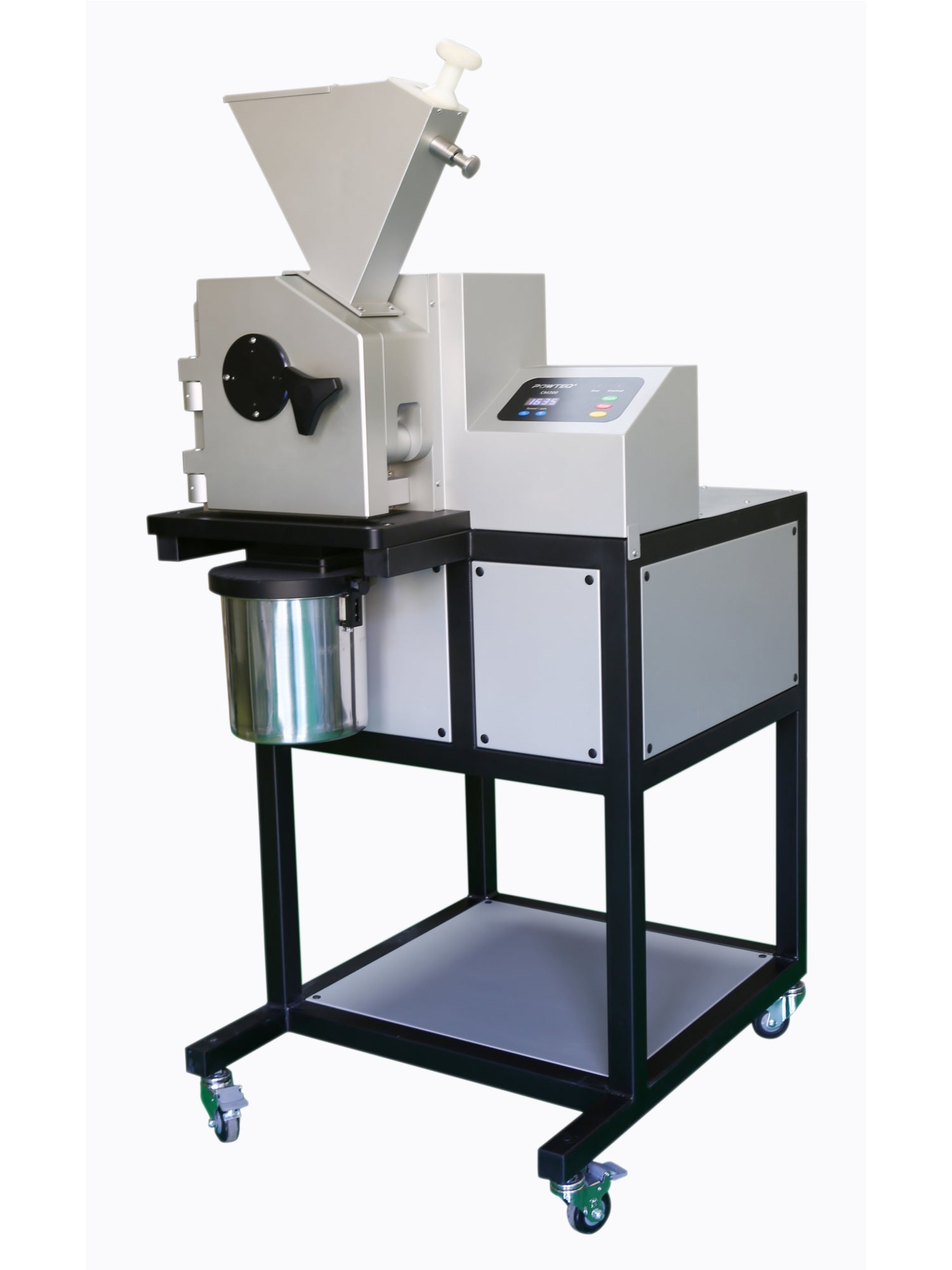

MSE Supplies offers a cutting mill designed for laboratory applications. It is an ideal machine for the sample pretreatment of heavy-metal-free RoHS and WEEE test. It is commonly used to process solid samples, both in batch and continuously. For long fiber and large-volume samples, it can be used directly without the need for pre-crushing.

    Working Principle

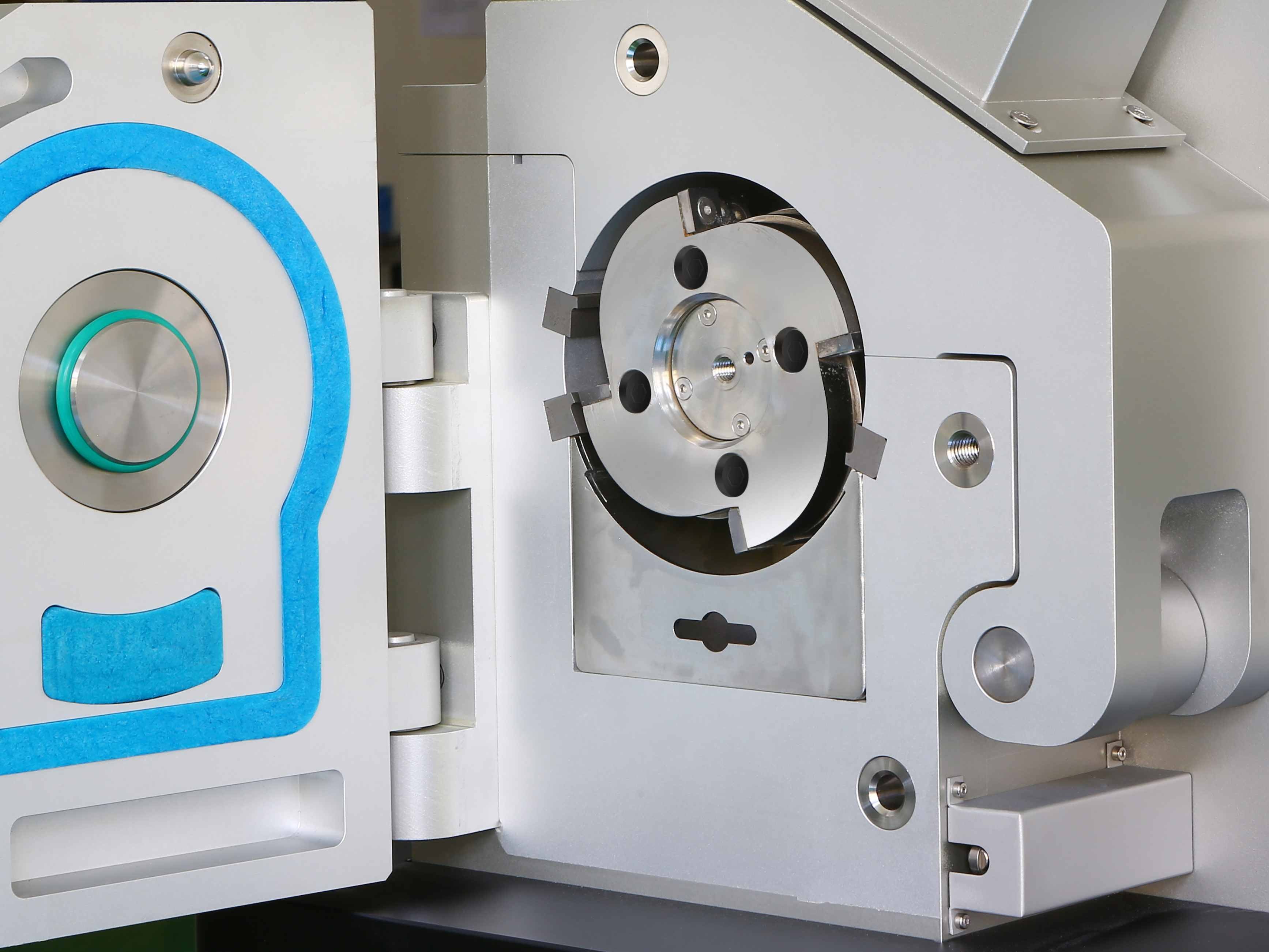

    The cutting mill processes the sample by the strong cutting and shear force. The sample to be processed falls into the cutting chamber via the hopper and is shredded by cutting between rotating and fixed knives until it passes an attached sieve as ground product into the collection bucket.

    Features and Advantages

    • Powerful size reduction, even with heterogeneous mixtures
    • The speed is adjustable between 500-3000rpm (continuously)
    • Final fineness depends on bottom sieve
    • Quickly and less heat milling suitable for temperature sensitivity samples
    • Wide range of collection system to meet various requirement
    • Big screen touch panel, speed adjustment can be imported by the control panel
    • The operation is quite simple and safe
    • The electric safety switch can prevent the device from being started when the door is open

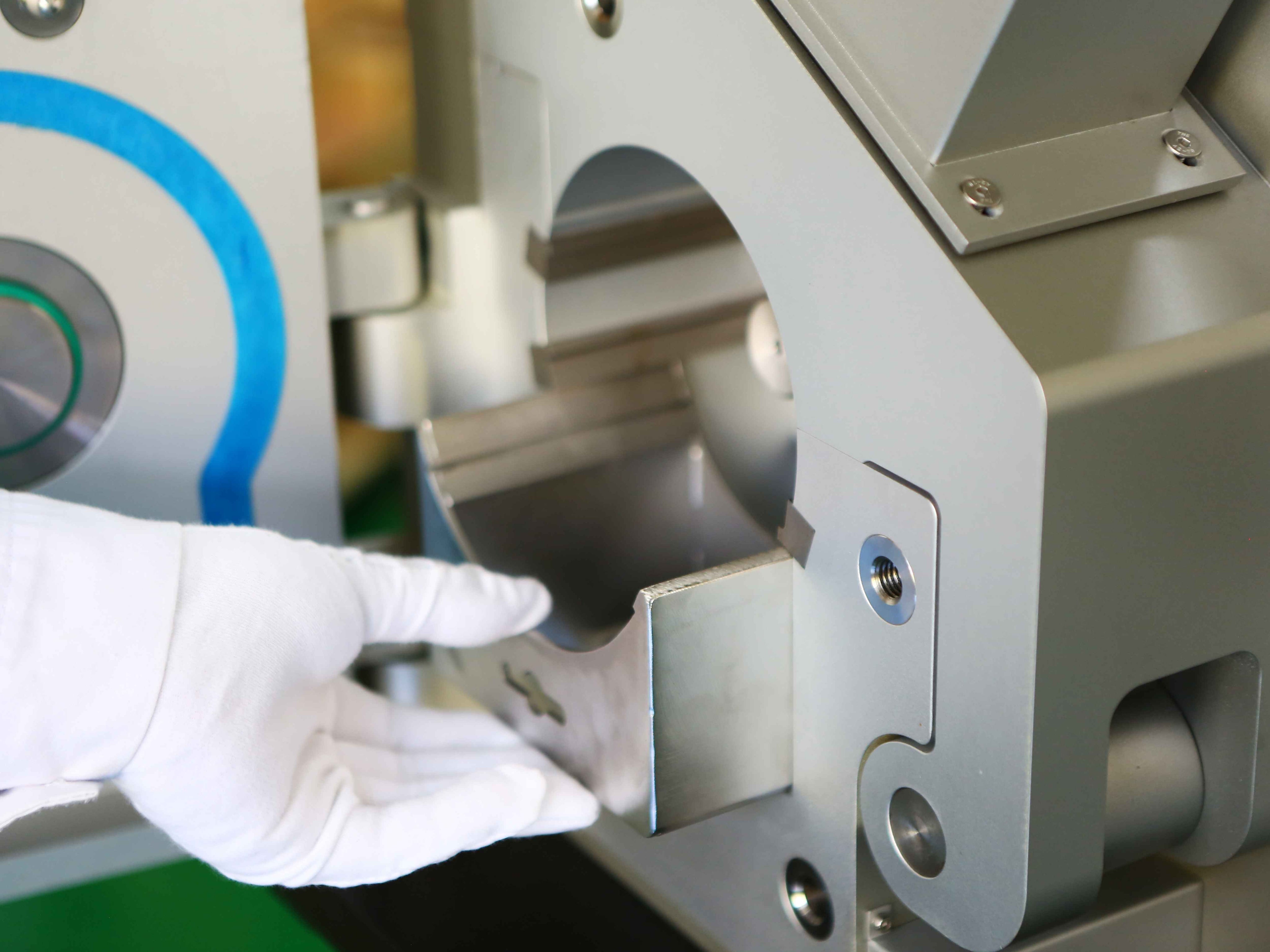

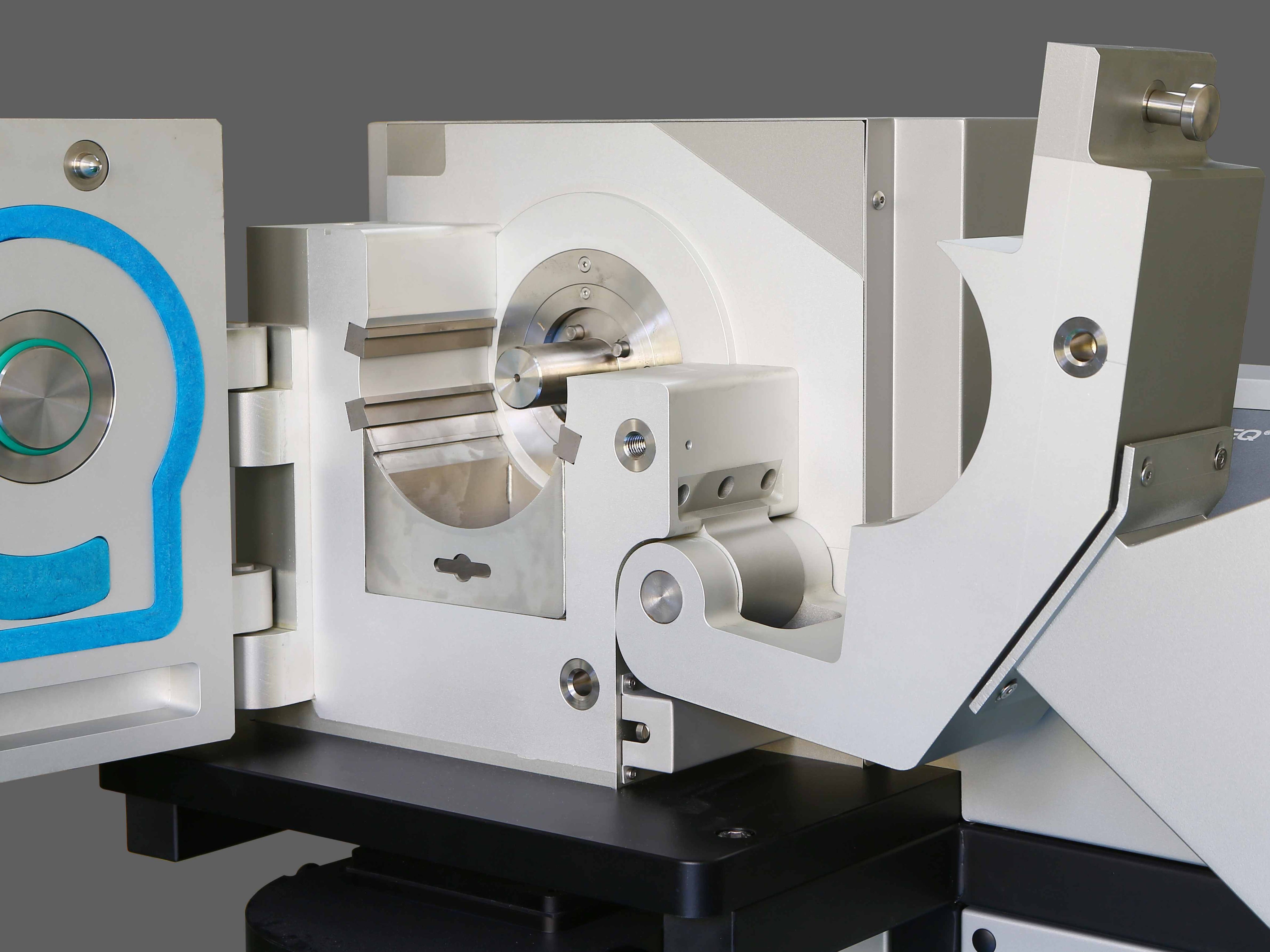

    • The rotating knife, bottom sieve and hopper can be easily removed and re-installed, which greatly facilitate the cleaning of the grinding chamber

    Applications of Cutting Mill:

    Application fields: Electronics, environment, cement, agriculture, etc
    Typical sample: Rubber, plastic, garbage, circuit board, wood, paperboard, paper, spice, straw, leather, rubber, raw material, bone, animal feed, cable, plastic, electric waste, non-metallic waste, grain, lignite, peat

    Technical Data

    SKU#

    MA1122: Al grinding chamber, stainless steel cutting bars

    MA1123: Stainless steel 304 grinding chamber, stainless steel cutting bars

    MA1124: Al grinding chamber, steel 1.1740 cutting bars (for grinding without heavy-metal contamination)

    Maximum feed size 60*80mm
    Final fineness 0.1~20mm
    Speed 500~3000rpm
    Sieves 0.20/0.5/1.00/2.00/4.00/6.00/8.00/10.00mm
    Collector  0.25L, 0.5L, 1L, 3L, 5L, 30L
    Rotor 6-disc rotor, standard rotor
    Rated power 3.0kW
    Power supply 380V 3ph (customizable)
    Instrument size(W*D*H) 640*825*1510mm
    Package size(W*D*H) 900*960*1450mm
    Net weight 190kg

    Standard accessories included 5L collecting bucket and stand frame, for hopper, rotor, bottom sieve please order separately.

     For the accessories, please contact us for more details.
