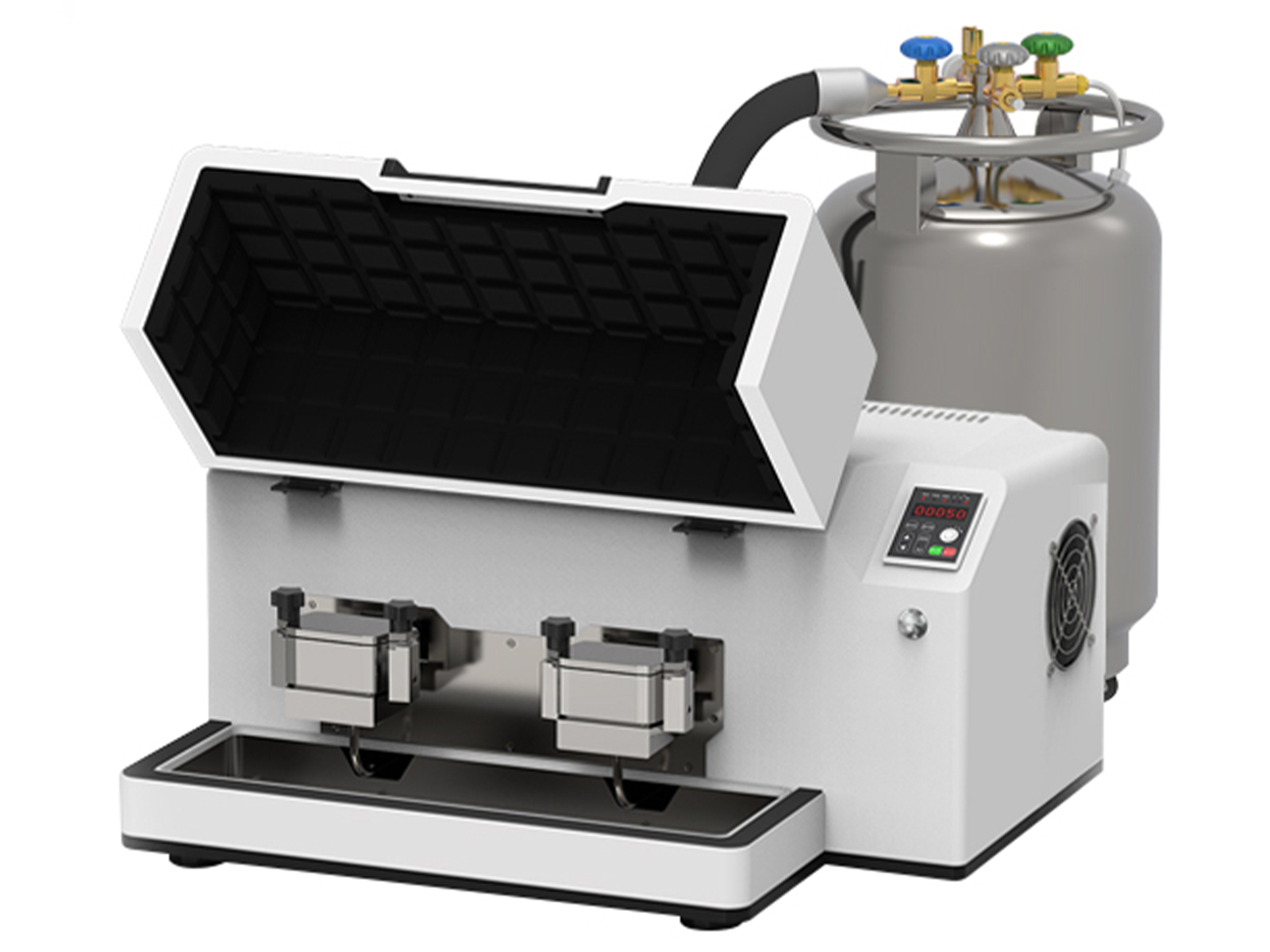

MSE PRO Cryogenic Nano Scale Vibration Ball Mill with Liquid Nitrogen Tank, 250mL (2×125mL)
SKU: MA0941
MSE PRO™ Cryogenic Nano Scale Vibration Ball Mill with Liquid Nitrogen Tank, 250mL (2×125mL)
MSE PRO™ Cryogenic Nano Scale Vibration Ball Mill offers multiple material options for grinding jars with a maximum capacity of 125ml. The product provides excellent crushing and grinding effects in just a few minutes or even seconds, with intensity and speed being its main features. (liquid nitrogen-cooled)
You must purchase specific milling jars to use it. Please select the options carefully according to your specific needs.
- Low Temperatures: Enables the grinding of heat-sensitive materials without degradation due to high temperatures.
- Fast Grinding: Provides excellent crushing and grinding effects in a very short time, ideal for efficient experimental needs.
- Powerful Vibration: Delivers high energy through intense vibrations, ensuring thorough grinding of the sample.
- Multiple Options: Offers grinding jars made from various materials, with a maximum capacity of 125ml, catering to different sample requirements.
- Efficient and Energy-Saving: High-energy density vibration grinding improves efficiency while saving energy.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Ball Mills. Please contact us for more information.
Specifications:
| SKU# | MA0941 |
| Sample Characteristics | Hard | Medium to Low Hardness | Brittle | Dry | Viscous | Fibrous | Soft | Elastic |
| Processing Types | Mechanochemical | Mechanical Alloying | Crushing | Mixing | Homogenizing |
| Maximum Sample Size | < 10mm |
|
Particle Size Range |
≈ 100nm |
| Number of Jars | 2 |
|
Jar Volume |
125mL |
| Jar Material |
Zirconia, Tungsten Carbide, Stainless Steel, PTFE |
| Jar Fixing Method | Threaded Fastening |
| Grinding Method |
Dry Grinding | Wet Grinding | Vacuum Grinding | Cryogenic Grinding
|
| Motion Type | Horizontal Arc Reciprocal Motion |
| Motion Frequency | 180-1800rpm |
| Crushing Time | 10-60s |
| Functions | Continuous Operation | Intermittent Operation | Timer | Speed Control | Data Storage | Power-off Memory | Overload Protection |
| Additional Functions | Quick Fastening | Soundproof Layer | Stainless Steel Workbench |
| Electrical Description | 100-120V|200-240V AC, 50-60Hz, 750W |
| Net Weight | 95kg |
| Dimensions (mm) | 680×540×320 (W×L×H) |
| Volume of Liquid Nitrogen Tank | Standard: 30L Optional: 50L |
| Certificates | CE |
