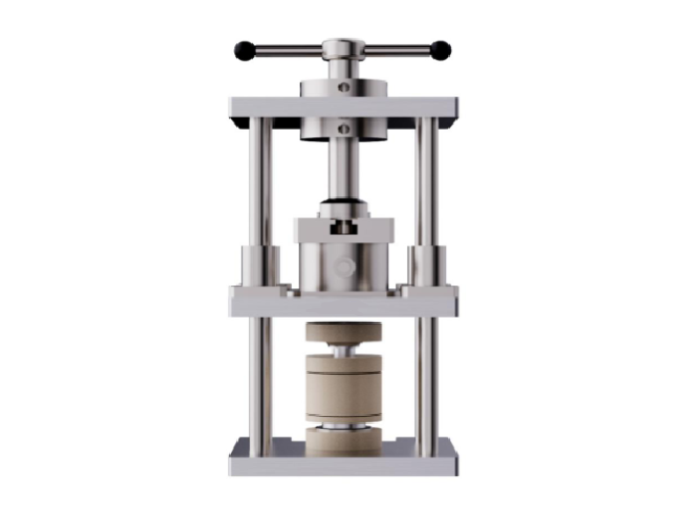

MSE PRO Cell Clamps for Fluid and Solid-State Batteries with Clamp Size (L*W*H) 100x92x235 mm with 1 Jig
Regular price
$ 6,050.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Cell Clamps for Fluid and Solid-State Batteries with Clamp Size (L*W*H) 100x92x235 mm with 1 Jig
Description:
This clamp is designed for testing of the swelling force of the solid-state jig cells under constant gap
Together with an additional potentiostat, it can be used to test EIS of the sulphides solid electrolytes.
Specifications:
| Clamp Material | Stainless Steel |
| Clamp Size(L*W*H) | 100x92x235 mm |
| Applicable Cells & Size |
Sealed Jig Cells Jig Material: PEEK
|
| Max Manual Force | Up to 400 Kg Jig 1: 10mm(49.9 MPa) Jig 2: 13mm(29.5 MPa) |
| Force Sensor Range | 2000 Kg |
| Force Sensor Accuracy | 0.3% F.S |
| Clamp Weight | 3 kg |
| Working Temp | -10~60℃ |
Note: Potentiostat is not included.
