MSE PRO Cell Clamps for Fluid and Solid-State Batteries with Clamp Size(L*W*H) 100x92x145 mm
SKU: IE0512

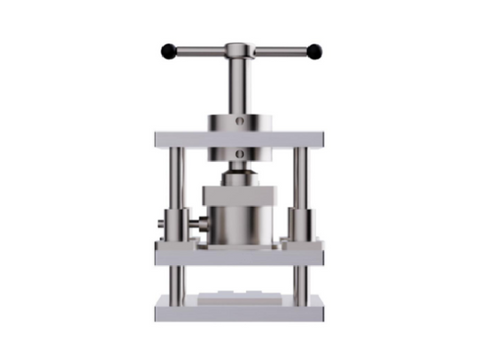

MSE PRO Cell Clamps for Fluid and Solid-State Batteries with Clamp Size(L*W*H) 100x92x145 mm
Description:
This clamp is designed for detecting the swelling force of liquid & solid-state pouch
cells under constant gap during cycling.
Together with an additional Force Acquisition Console and Cyclers, it can automatically
collect the swelling force during cycling
Specifications:
| Clamp Material | Stainless Steel |
| Clamp Size(L*W*H) | 100x92x145 mm |
| Applicable Cells & Size |
Pouch Cells with a max size of 65x75x25 mm |
| Max Mannual Force | Up to 400 Kg 0.82 MPa |
| Force Sensor Range | 2000 Kg |
| Force Sensor Accuracy | 0.3% F.S |
| Clamp Weight | 2 kg |
| Working Temp | -10~60℃ |
Note: Force Acquisition Console and Cyclers are not included.
Force Acquisition Console link:
MSE PRO Additional Force Acquisition Console for Cell Clamps for Fluid– MSE Supplies LLC
