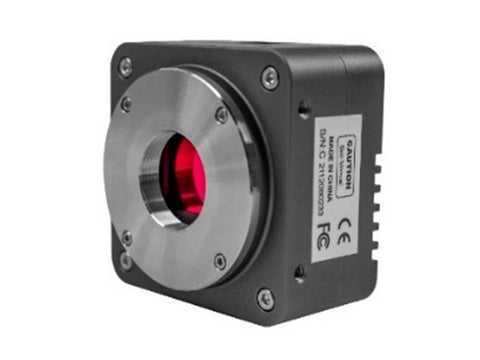

MSE PRO BUC5F-2000C C-mount USB3.0 CMOS Camera
SKU: MA4050
MSE PRO™ BUC5F-2000C C-mount USB3.0 CMOS Camera
The MSE PRO™ BUC5F series USB3.0 digital cameras adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.
The MSE PRO™ BUC5F series cameras hardware resolutions range from 1.5MP to 45MP and come with the integrated CNC aluminum alloy compact housing.
The MSE PRO™ BUC5F series cameras integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISP VP) for Demosaic, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed.
The MSE PRO™ BUC5F series cameras come with advanced video & image processing application ImageView; Providing Windows/ Linux/ macOS/ Android multiple platforms SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).
The MSE PRO™ The BUC5F series cameras can be widely used in bright field, dark field, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.
-
SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
-
Real-time 8/12bit depth switch (depending on sensor);
-
Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates;
-
Super high sensitivity up to 2188mV(IMX264);
-
Ultra-low noise and low power dissipation by using column-parallel A/D conversion;
-
With hardware resolution from 1.5M to 45M;
-
Rolling Shutter or Global Shutter;
-
Standard C-Mount camera;
-
CNC aluminum alloy housing;
-
With advanced video & image processing application ImageView;
-
Providing Windows/Linux/Mac OS multiple platforms SDK;
-
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView
Specification
| Sensor & Size(mm) |
20M/IMX183(C, RS)
1” (13.06x8.76)
|
|
Pixel Size(μm)
|
2.4 x2.4
|
|
G Sensitivity Dark Signa
|
462mv with 1/30s
0.21mv with 1/30s
|
|
FPS/Resolution
|
15@5440x3648
50@2736x1824
60@1824x1216
|
|
Binning
|
1x1
2x2
3x3
|
|
Exposure
|
0.1ms~15s
|
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
