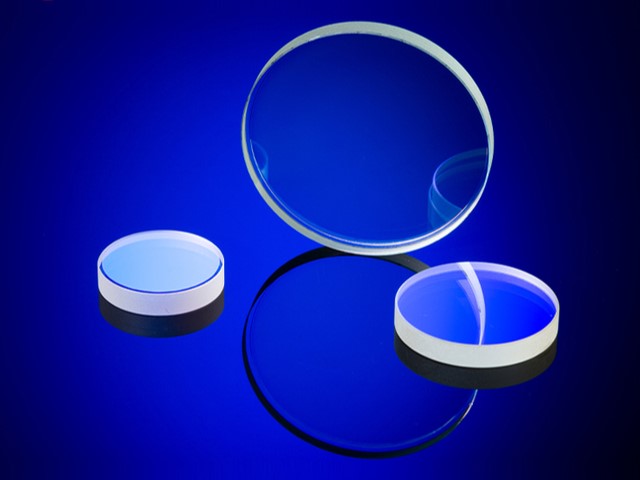

MSE PRO Broadband Fused Silica Laser Mirrors, Ø1"
SKU: AFSLM-1-3-4
MSE PRO™ Broadband Fused Silica Laser Mirrors, Ø1"
MSE supplies offers Ø1" Broadband Fused Silica Laser Mirrors. This adopts fused silica substrate, which have excellent thermal stability. The mirrors provide reflectivity greater than 99% over a wide wavelength range, with an incidence angle between 0-45°, suitable for all polarization states. The coating has a high damage threshold suitable for high-powered laser.
MSE Supplies can offer a variety of optical elements, with different focal length and coating options. Please contact us for customization or bulk orders.
Technical Data:
| Material | UV grade Fused Silica |
| Diameter Tolerance | +0/-0.1 |
| Thickness Tolerance | ±0.1 |
| Incident Angle | 0-45˚ |
| Parallelism | <3 arc min |
| Flatness | λ/8 at 633nm |
| Surface Quality | 20-10 scratch-dig |
| Clear Aperture | >90% Diameter |
| Back surface | Commercial polished |
| Wave length | 350-400nm, 400-700nm, 700-1100nm, 1100-1600nm |
| Thickness | 6mm |
| Diameter | 25.4mm (1") |
| Damage Threshold | >1.0J/cm²(10ns 10Hz 532nm) |
350-450nm
400-700nm
700-1100nm
1100-1600nm
