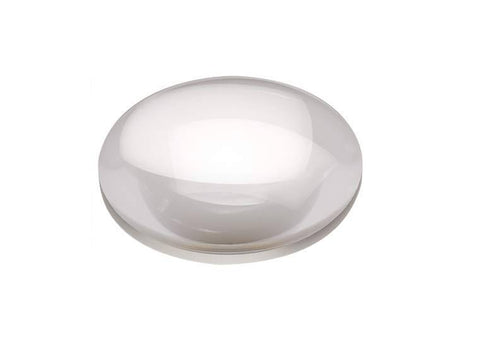

MSE PRO BK7 Plano-Convex Lenses with 1/4 Wave MgF2 Coating@550nm, Ø30mm
SKU: ACB7PV5-30-60
MSE PRO™ BK7 Plano-Convex Lenses with 1/4 Wave
MgF2 Coating@550nm, Ø30mm
MSE supplies offers Ø30mm BK7 Plano-Convex Lenses with 1/4 Wave MgF2 Coating@550nm. These lenses are mostly used for focusing parallel rays of light to a spot. The asymmetry of these lenses between the front and back surface minimizes spherical aberration effectively, particularly in the situations where the object and image are not at equal distance from the lens. The optimum case is where the object is placed at infinity (regarded as parallel rays entering lens) and the image is on the focus, which has infinite conjugate ratio, i.e. object distance/image distance. The curved surface of the lens should face the object direction.
MSE Supplies can offer a variety of optical elements, with different focal length and coating options. Please contact us for customization or bulk orders.
Technical Data:
| Material | BK7 grade A, fine annealed |
| Diameter (Ø) Tolerance | +0.0/-0.20 |
| Center Thickness (Tc) | ±0.1 |
| Centration | 3’ |
| Form Error | 1 ～ 5 fringes |
| Irregularity of Fringes | 0.2 ～ 0.5 fringes |
| Surface Quality | 60-40 scratch-dig |
| Clear Aperture | 90% diameter |
