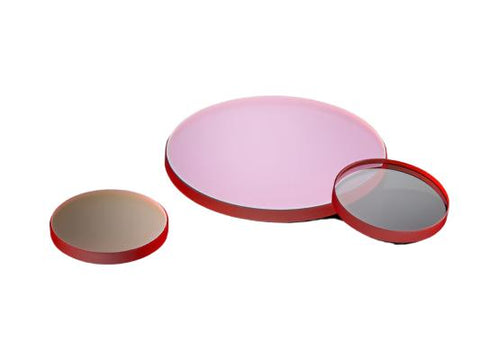

MSE PRO BK7 Broadband Conventional Beamsplitter Plates
SKU: AB7SP-1-4-6-5/5
MSE PRO™ BK7 Broadband Conventional Beamsplitter Plates
MSE supplies offers BK7 Broadband Conventional Beamsplitter Plates. This is a conventional beamsplitter independent of polarization. The incoming light should be one of the following: 45 linearly polarized, circularly polarized or natural light, i.e. the s-polarized and p-polarized components should be equal to within 5% of each other. The outgoing beams are two partially polarized beams of about equal intensities.
MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.
Technical Data:
| Material | BK7 fine annealed optical glass |
| Diameter Tolerance | +0.0/-0.15mm |
| Thickness | 3±0.15mm |
| Parallelism | ≤1’ |
| Flatness | λ/8 at 632.8nm |
| Surface Quality | 40-20 scratch-dig |
| Clear Aperture | >90% diameter |
| Incidence angel | 45º |
| Coating |
S1: broadband beamsplitter coatings. S1:broadband AR coating, Rave<0.5%
|
| Wavelength(nm) | 450-650 |
| T:R | 05:05 |
| Dimension | 25.4 |
