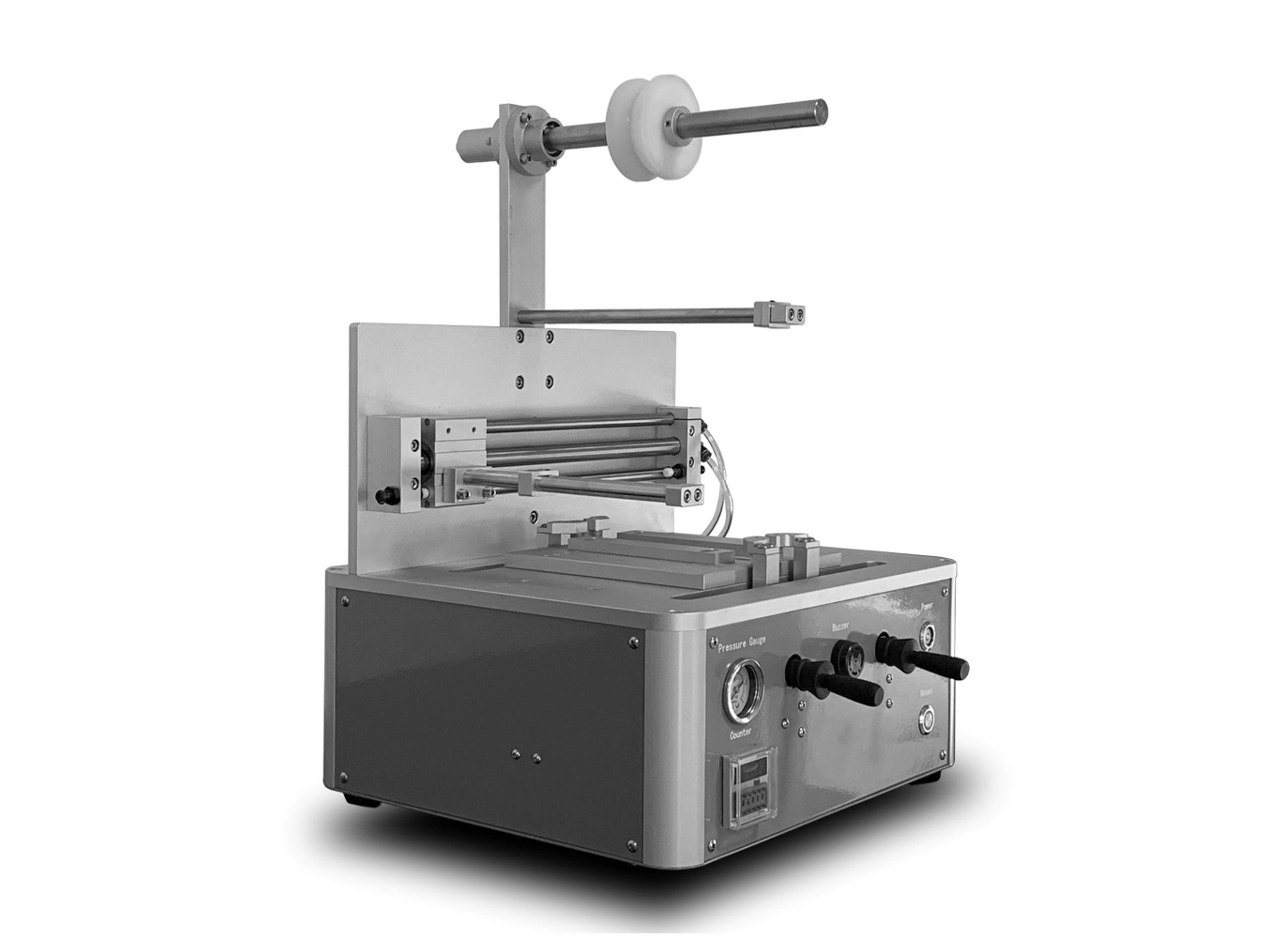

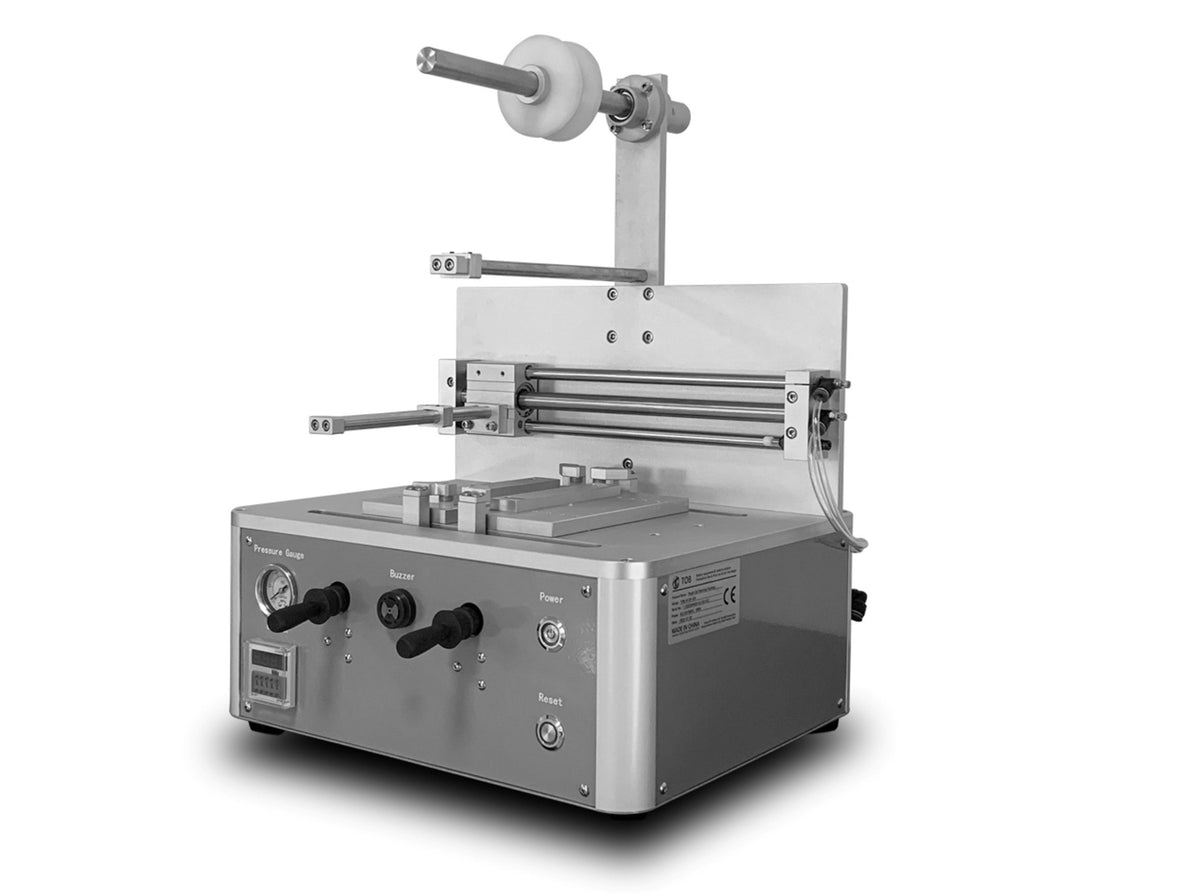

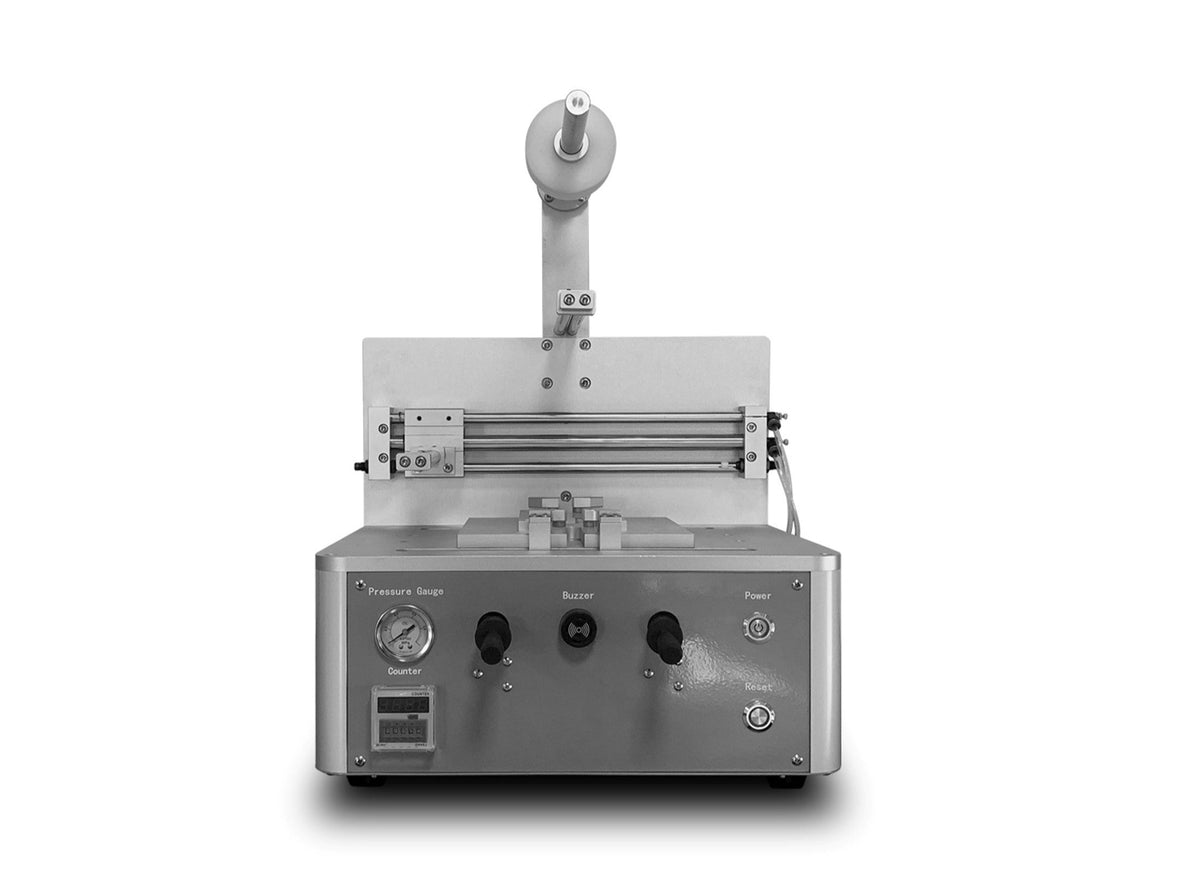

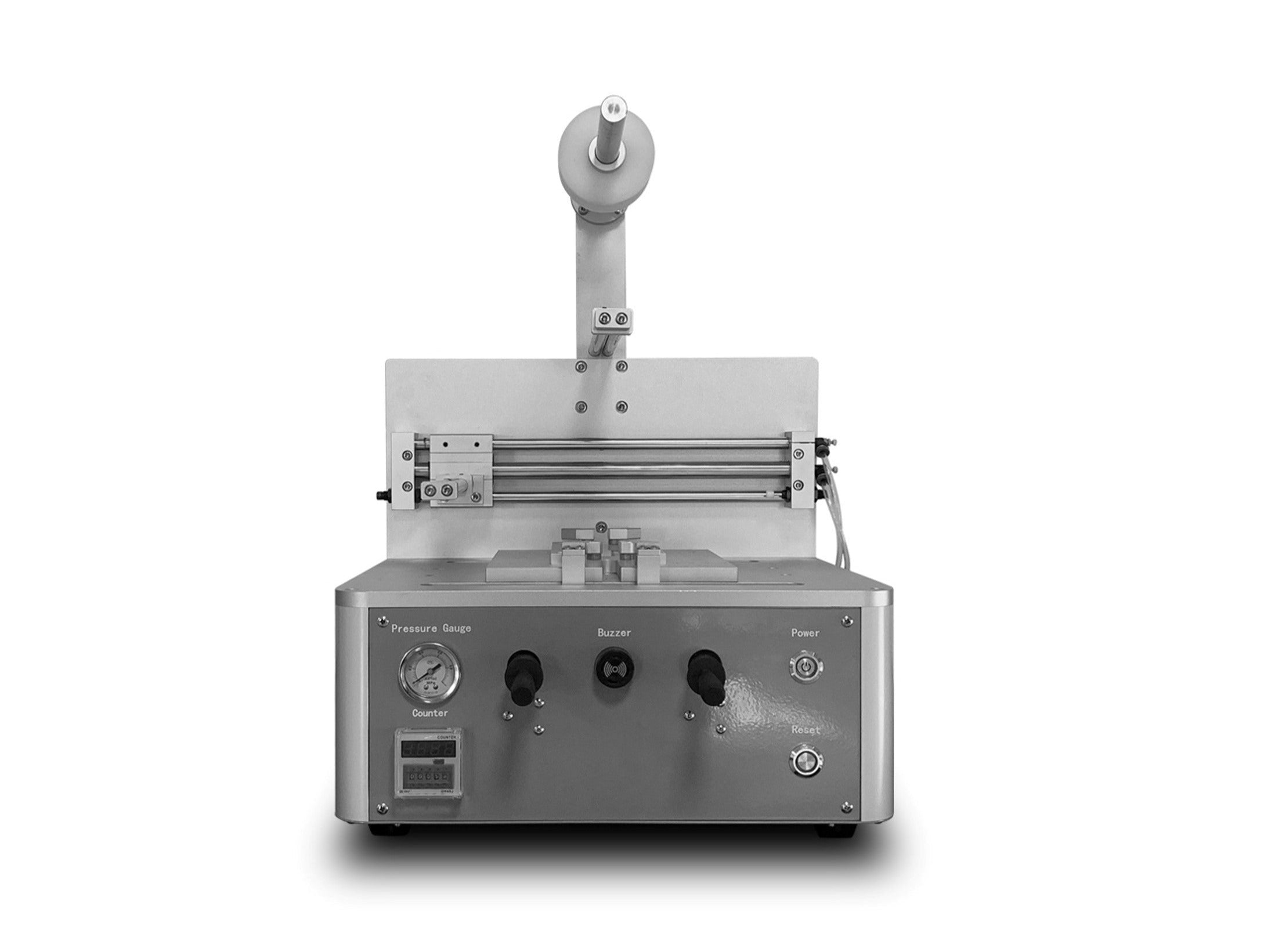

MSE PRO Benchtop Semi-Automatic Electrode Stacking Machine for Pouch Cell Research

SKU: BR0408

  • $ 3,30095
  • Save $ 39700


MSE PRO™ Benchtop Semi-Automatic Electrode Stacking Machine for Pouch Cell Research

MSE Supplies offers a benchtop semi-automatic electrode stacking machine with stable, repeatable and precise performance. It can stack the cathode, anode and separator together through "Z" shape stacking path for pouch cell research. It is compatible with electrodes with size up to 200x200mm.

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

    SKU BR0408
    Separator Roller Diameter Max 250mm
    Fixed Travel Distance 400mm
    Compatible Electrode Size

    L (55~200)mm

    W (40~200)mm

    Compressed Air Pressure 0.25~0.55MPa
    Voltage 110V
    Net Weight 40kg
    Dimension

    Stacking machine 650*400*700mm

    Controller 200*300*380mm

    Warranty One year limited warranty with lifetime product support
