MSE PRO Basic Laboratory Peristaltic Pump

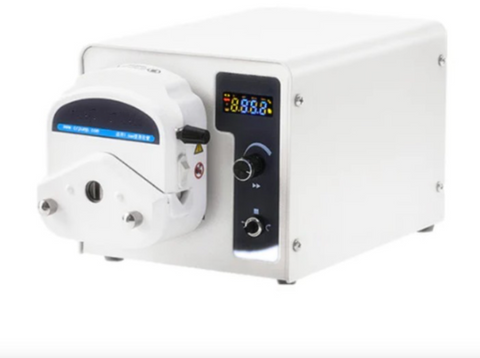

MSE PRO™ Basic Laboratory Peristaltic Pump
MSE Supplies offers basic laboratory peristaltic pumps with three different flow rate options. It belongs to the digital speed-type peristaltic pump. It displays the current flow through LED and is able to perform liquid volume calibration. It is a specialized equipment used in laboratory settings to transport liquids in a controlled and precise manner. It operates based on a peristaltic pumping principle, where a flexible tubing is compressed and released by rotating rollers, creating a gentle and pulsating flow of liquids. This pumping mechanism is particularly useful for applications that require accurate fluid delivery without the risk of contamination or damage to the transported material.
Brand: MSE PRO™
Technical Specifications:
| SKU# | LS0216 | LS0217 | LS0218 |
| Speed Range | 0.1~100rpm (reversible) | 0.1~300rpm (reversible) | 0.1~600rpm (reversible) |
| Speed Resolution | 0.1rpm | ||
| Flow Rate | 0.0015~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Filling Accuracy | ±0.5% | ||
| Flow Calibration | Yes | ||
| Pump Head | YZ | ||
| Display Mode | 4-LED display | ||
| Power Supply | AC110V | ||
| Power Consumption | ＜22W | ＜35W | ＜50W |
| Environment Temperature | 0~40℃ | ||
| Relative Humidity | ＜80%, No condensation | ||
| Drive Size | 234×154×143 (mm) | 254×184×150 (mm) | |
| Drive Weight | 5.15kg | 5.8kg | |
| Motor Type | Stepper motor | ||
| IP Grade | IP31 | ||
| Working Mode | Transmission mode | ||
