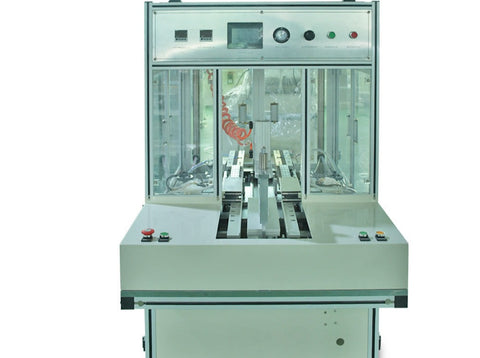

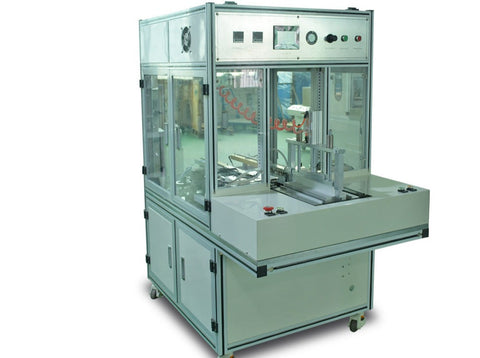

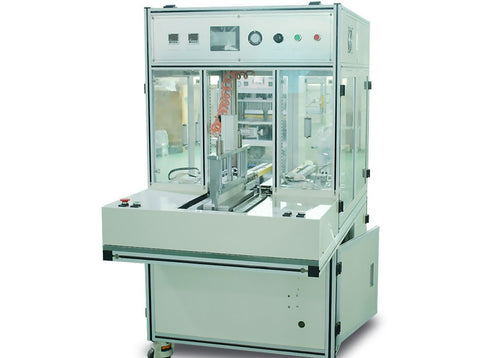

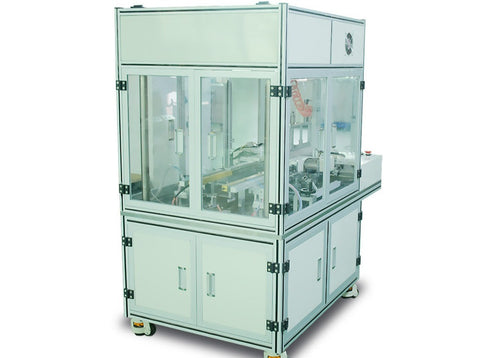

MSE PRO Automatic Three-In-One Machine for Pouch Cell Cutting, Folding and Heating
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

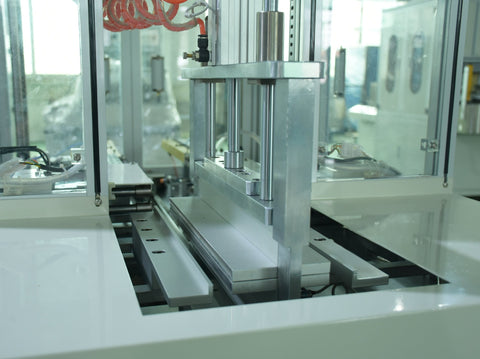

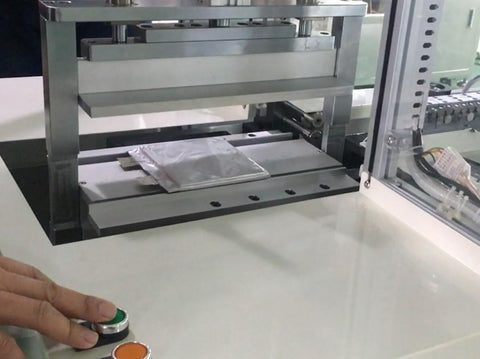

MSE Supplies offers an automatic three in one machine for lithium pouch cell battery case edge cutting, folding (trimming) and heating (perming). The equipment is mainly used for pouch cell molding process for the final assemble after sealing. The trimming space can be adjusted to adapt to different width of battery and touch screen display is equipped to control the heating temperature with LCD thermostat. Further, air pressure and speed can be set and adjusted according to process requirements. The operation is reliable, convenient and fast using foot switch.
Equipment specifications are listed for references, more details and customizable design are available upon request.
Specifications:
| SKU | BR0443 |
| Source voltage | 110V AC (Customizable) |
| Power | 1.8KW |
| Max. temperature | 250°C (Customizable) |
| Compressed air | 0.6MPa, 5L/min |
| Output | 500-1800EA/H |
| Cutter length | 320mm |
| Suitable battery size |
Length 20-300mm Width 20-200mm Thickness 1-10mm |
| Edge folding thickness | 0.19-0.3mm |
| Edge cutting accuracy | ±0.10mm |
| Parallelism between cutter | 0.05mm |
| Cutter knife life | 1,000,000times |
| Dimension (L*W*H) | 1200*620*1600mm |
| Weight | 600kg |
